RFID Card Inlay Automatic Glue Tape Applicator / Glue Tape Pasting Machine

RFID Card Inlay Automatic Glue Tape Applicator / Glue Tape Pasting Machine
RFID Card Inlay Automatic Glue Tape Applicator / Glue Tape Pasting Machine
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YGA-2
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 plywood case
Delivery Time: 20 working days
Payment Terms: T/T, Western Union, D/P, D/A, Western Union
Supply Ability: 5 sets per month
Get Best Price
Chat Now
Detail Information
Power Supply: AC 220V 50/60 HZ Total Power: 1.0 KW
Air Source: 6kg/cm2 (dry) Control Mode: PLC
Speed: 300-400 Sheets/h Sheet Layout: 3*8, 4*8, Etc
Highlight:

Automatic Glue Tape Applicator

,

RFID Glue Tape Applicator

,

Glue Tape Pasting Machine

Product Description

RFID Card Inlay Automatic Glue Tape Applicator / Glue Tape Pasting Machine
Product Overview

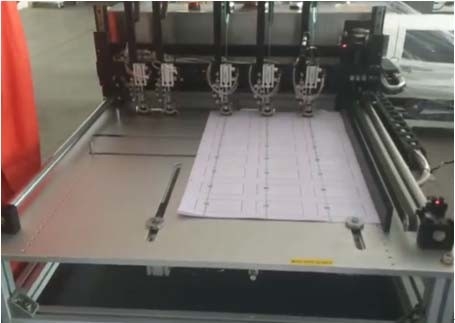

The Automatic Glue Tape Applicator YGA-2 is designed for precisely applying glue tapes onto punched INLAY middle sheets during RFID card production. This machine ensures efficient temporary adhesion of chips in the INLAY sheet manufacturing process.

Key Features
  • Applies 3 glue tapes simultaneously for various sheet layouts (3×8, 3×7, etc.)
  • Also known as automatic glue tape pastor or RFID card INLAY/prelam sheet production machine
  • Integrates seamlessly into card prelam sheet production lines
Technical Specifications
Attribute Specification
Power supply AC 220V 50/60 HZ
Total power 1.0 KW
Air source 6kg/cm² (dry)
Control method PLC
Sheet layout 3×8, 4×8, etc.
Weight Approx. 60 Kg
Dimensions L950×W600×H400 mm
Speed 300-400 sheets/h
RFID Card Inlay Automatic Glue Tape Applicator / Glue Tape Pasting Machine 0
