RFID Inlay Sheet Layout Contactless IC Module Picking Placing Machine YPP-4000

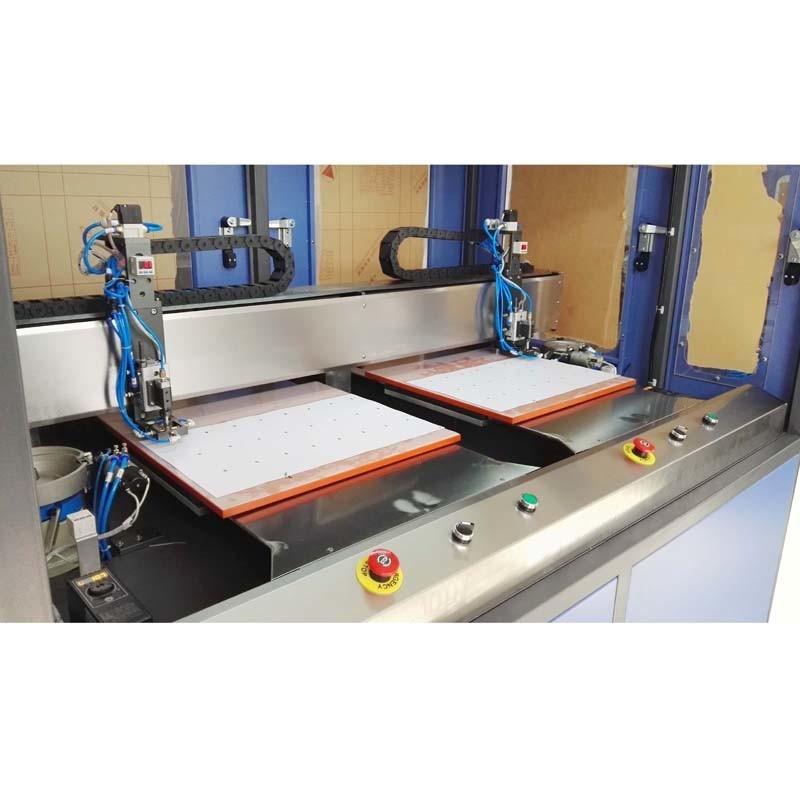

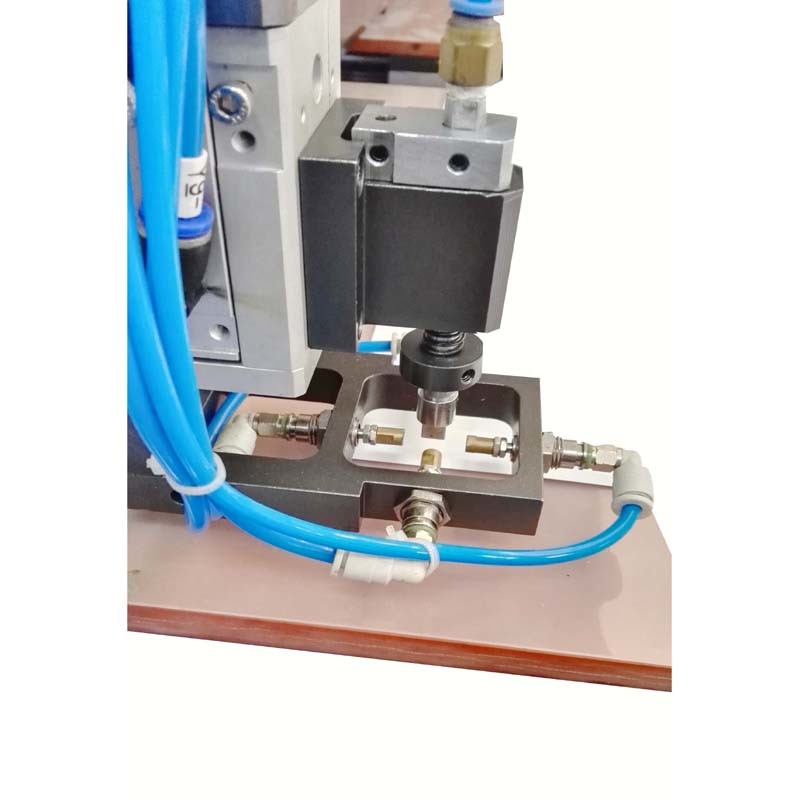

The Contactless IC Module Picking-Placing Machine YPP-4000 is designed for precisely placing single contactless IC chips onto chip fixing holes in RFID inlay sheets. Also known as RFID Card INLAY Sheet Chip Pick-placer or RFID Chip Implanter, this machine ensures high precision placement through vacuum picking and controlled air cylinder operation.

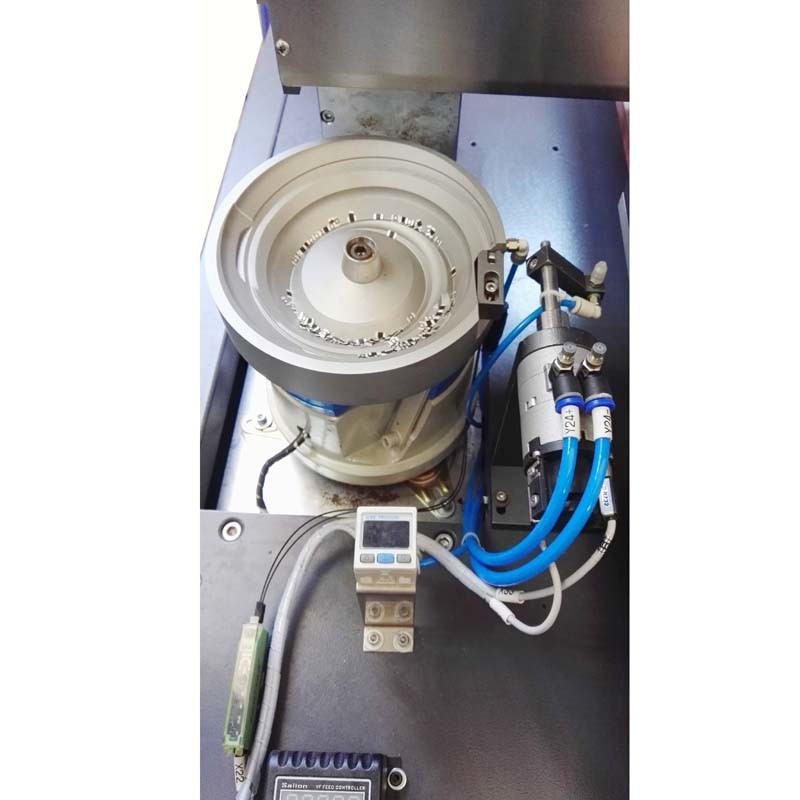

• Photoelectric sensor monitoring for chip feeding with automatic warning and shutdown
• High-precision dual-axis system with PLC control for accurate positioning (±0.05mm)
• Individual adjustment capability for each module's picking/placing location

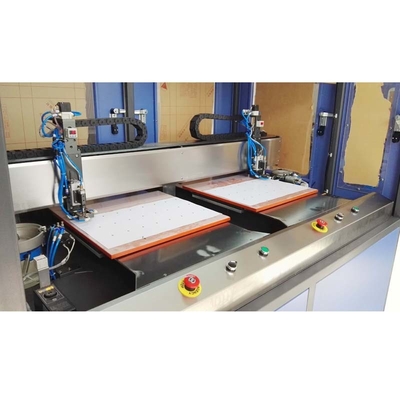

• Dual picking-placing units and working tables for enhanced efficiency
• Optional liquid glue injection unit available
• Mitsubishi PLC control with color touchscreen interface
• SMC pneumatic components for reliable operation

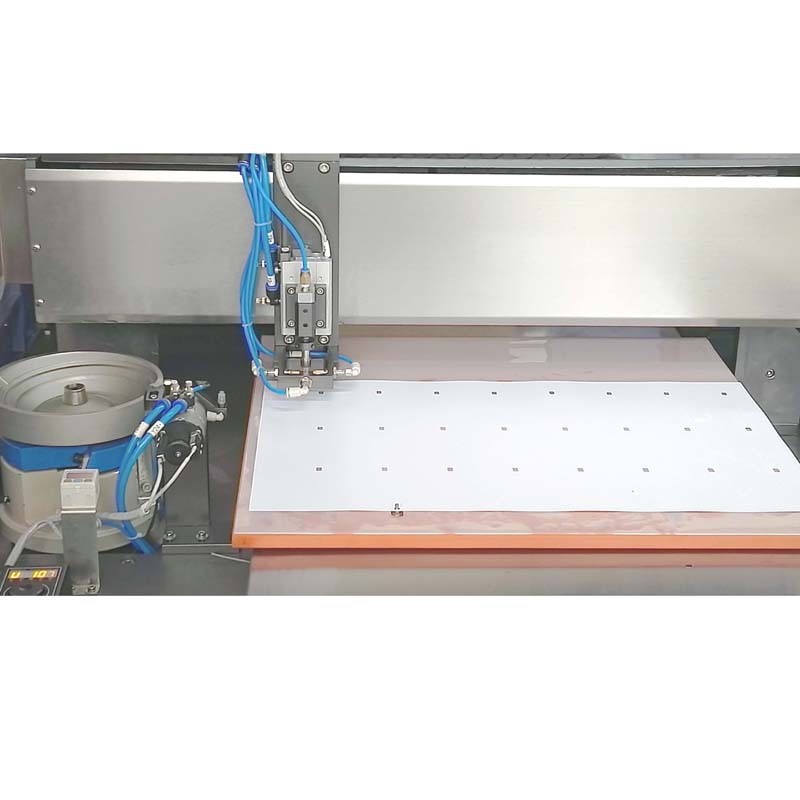

• Flexible processing of different sheet layouts (3×8, 4×8, 5×5, etc.)

1. Speed: 4000-4500 pieces per hour
2. Dimensions: 1600×700×1900mm (L×W×H)
3. Weight: 650kg
4. Power supply: AC220V 50/60HZ
5. Power consumption: 3KW
6. Compressed air requirement: 6 kg/cm²
7. Air consumption: 30 L/min
8. Control system: PLC with dual-axis location
9. Chip positioning accuracy: ±0.05mm

The YPP-4000 automatically picks and places individual chips into fixing holes in RFID inlay sheets with high speed and precision, ideal for RFID card production.

Recommended configuration: 1 set of Contactless IC Module Picking-placing Machine YPP-4000 with production capacity of 4000-4500 pieces per hour.
