Full Auto RFID Card Inlay Production Line Sheet Glue Tape Pasting Machine YGA-1000+

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YGA-1000+

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1 plywood case
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	5 sets per month

Get Best Price

Chat Now

Detail Information

Power Supply:	AC 220V 50/60 HZ	Total Power:	2.0 KW
Air Source:	6kg/cm2 (dry)	Control Mode:	PLC + Touch Screen
Speed:	600-800 Sheets/hour	Sheet Layout:	55, 38, 4*8 Or Customized
Highlight:	RFID Card Inlay Production Line , Full Auto Card Inlay Production Line , Sheet Glue Tape Pasting Machine

Product Description

Full Auto RFID Card Inlay Production Line Sheet Glue Tape Pasting Machine YGA-1000+

Product Specifications

Attribute	Value
Power supply	AC 220V 50/60 HZ
Total power	2.0 KW
Air source	6kg/cm2 (dry)
Control mode	PLC + touch screen
Speed	600-800 sheets/hour
Sheet layout	55, 38, 4*8 or customized

Product Overview

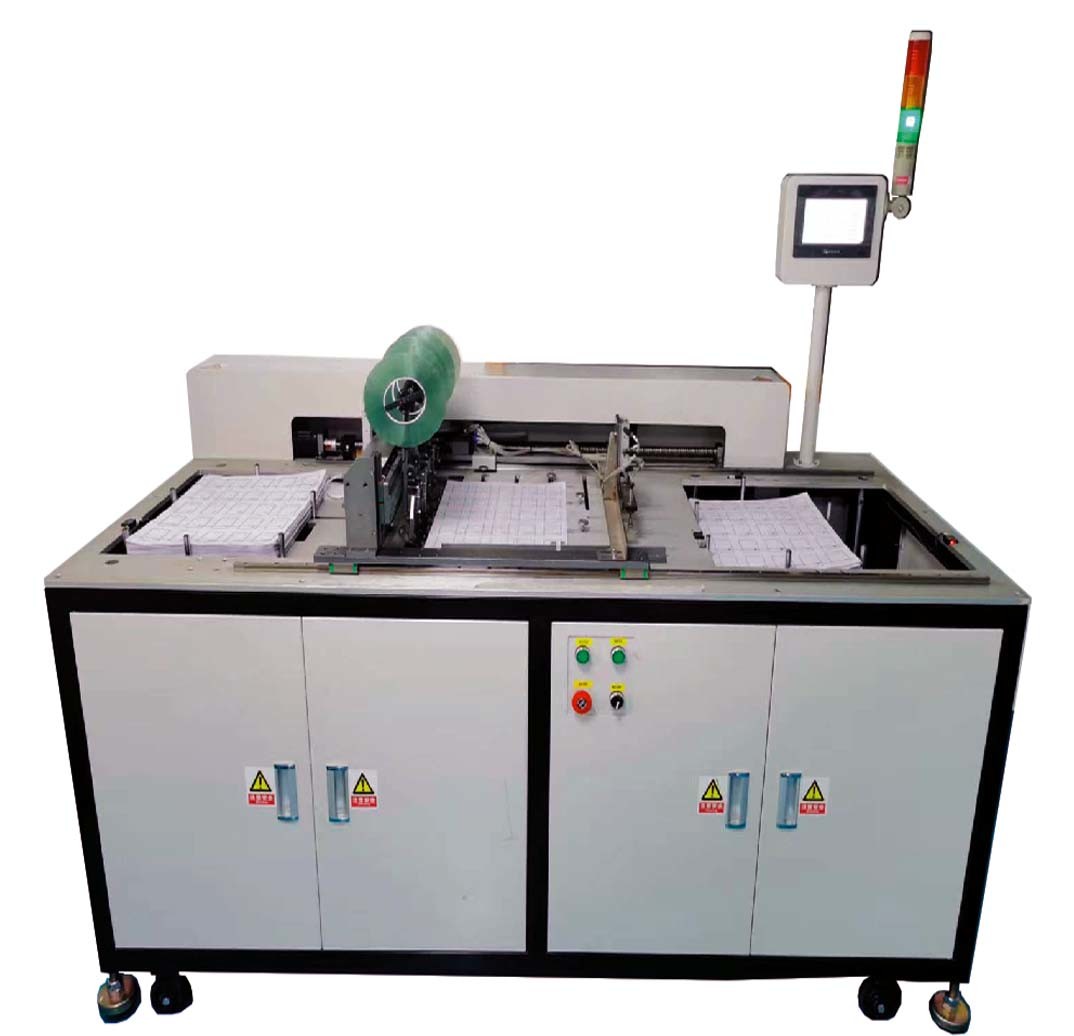

The Full Auto Inlay Sheet Glue Tape Pasting Machine YGA-1000+ is designed for automatically picking the Inlay middle sheet, pasting glue tapes, and collecting finished sheets in RFID Card INLAY or Prelam Sheet production.

The machine applies glue tapes for temporarily sticking COB chips in the next step chip bonding process, significantly reducing labor requirements and increasing efficiency.

Technical Details

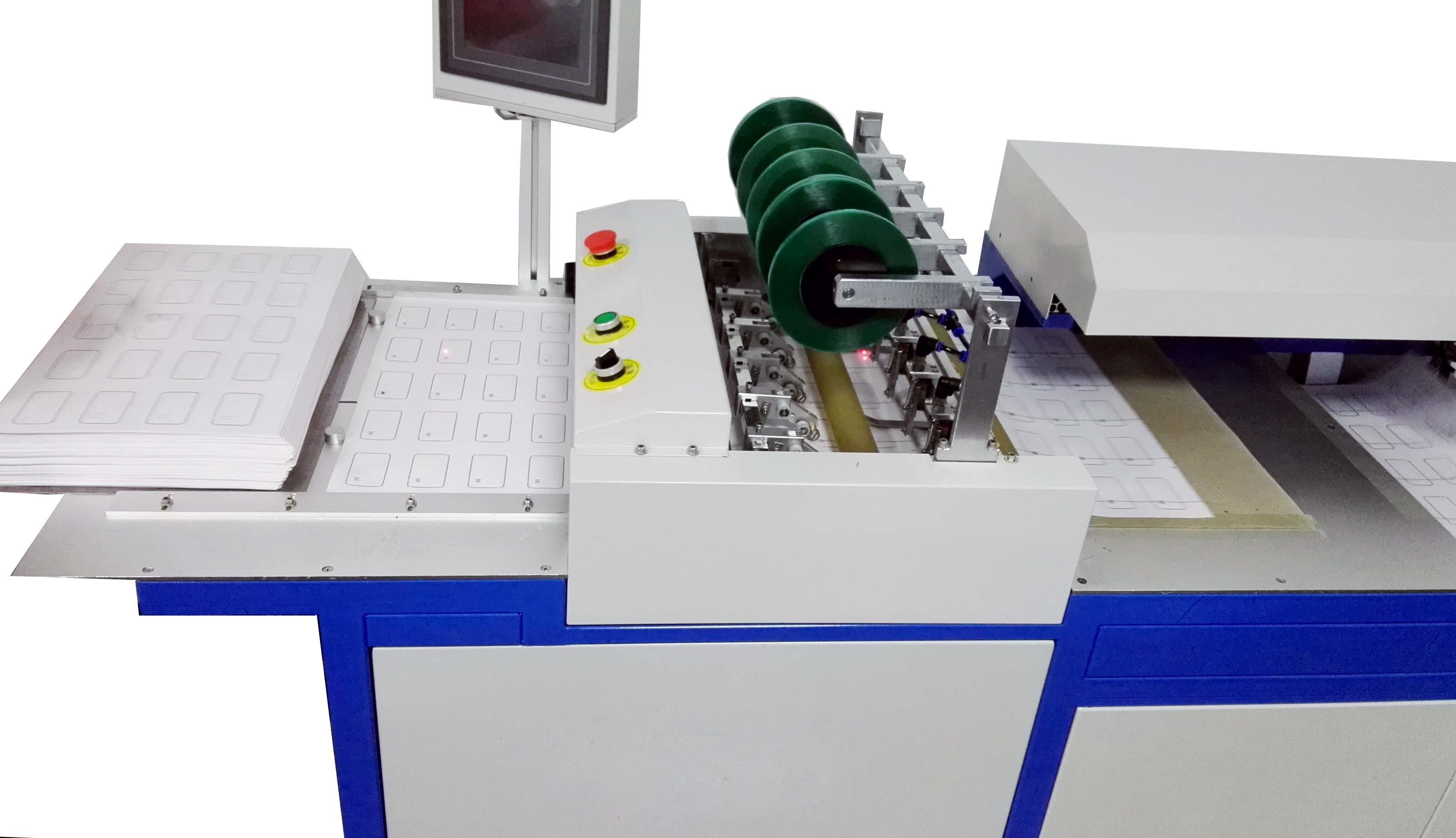

Automatically applies green glue tape onto chip holes in INLAY middle sheets for temporary chip adhesion.

Machine model	YGA-1000+
Production speed	600+ sheets/hour
Dimensions	L2100xW880xH1700 mm
Weight	Approx 400 Kg

Key Features

PLC-controlled operation with user-friendly touch screen interface

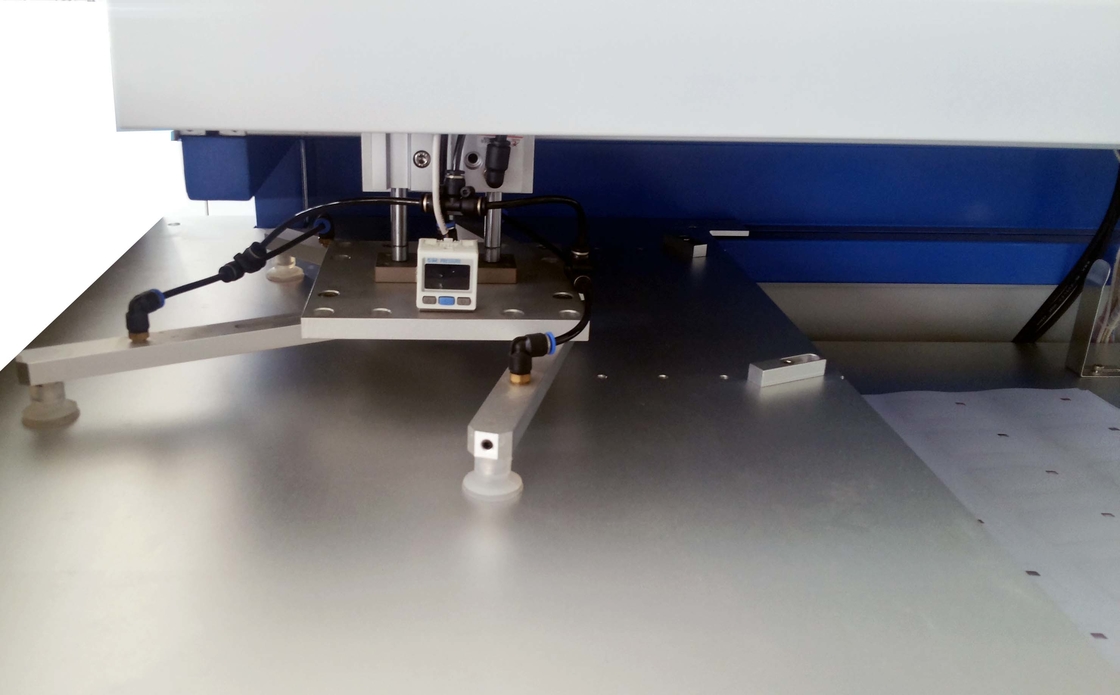

Automatic sheet pick-and-place system
Customizable INLAY sheet layouts available

Applications

Also known as: glue tape pastor/applicator, glue tape application machine, RFID card INLAY/Prelam sheet production machine, or contactless card production machine.
