Plug In SIM Card Manufacturing Machine 5000 - 6000pcs/h SIM Card Punch Machine

Plug In SIM Card Manufacturing Machine 5000 - 6000pcs/h SIM Card Punch Machine
Plug In SIM Card Manufacturing Machine 5000 - 6000pcs/h SIM Card Punch Machine Plug In SIM Card Manufacturing Machine 5000 - 6000pcs/h SIM Card Punch Machine Plug In SIM Card Manufacturing Machine 5000 - 6000pcs/h SIM Card Punch Machine Plug In SIM Card Manufacturing Machine 5000 - 6000pcs/h SIM Card Punch Machine
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YSMP-5000
Minimum Order Quantity: 1 set
Packaging Details: exported plywood package
Delivery Time: about 40days after receiving prepayment
Payment Terms: T/T,D/P,D/A,Western Union,MoneyGram
Supply Ability: 5 sets per month
Get Best Price
Chat Now
Detail Information
Positioning Precision: ±0.020mm Finish Time: 40 Days
Card Size: ISO CR80 Card 54*85.6mm Card Thickness: 0.76 Mm
Weight: Approx 850Kg Person: 1
Machine Dimesion: Approximately L1500xW820xH1750 Mm Air Source: 6kg/cm²（no Water）
Highlight:

SIM Card Manufacturing Machine 5000pcs/h

,

Plug In SIM Card Manufacturing Machine

,

6000pcs/h SIM Card Punch Machine

Product Description

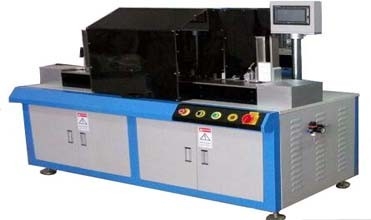

Sim Card Puncher ±0.02mm Positioning Precision Plug-in Sim Card Punch Machine YSMP-5000
Product Specifications
Attribute Value
Positioning precision ±0.020mm
Finish Time 40 days
Card Size ISO CR80 Card 54*85.6mm
Card Thickness 0.76 mm
Weight Approx 850Kg
Person 1
Machine Dimension Approximately L1500xW820xH1750 mm
Air Source 6kg/cm² (no Water)
Product Description
The SIM Card Personalization Machine is a cutting-edge device designed to streamline the process of personalizing SIM cards. With its advanced features and precise functionality, this machine offers unparalleled efficiency and accuracy in card production.

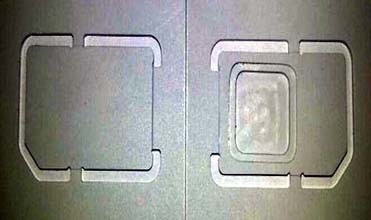

Plug-in Sim Card Punch Machine YSMP-5000 is designed for punching and indenting Plug-in SIM cards on standard plastic cards in a precise and speedy way. It includes two stations - slot punching station and indenting (kiss punch) station. It is controlled by PLC, which ensures easy parameter setting and stable performance.
Key Features
  • Slot punching mould features advanced automatic guiding structure
  • Punch die made of quality special wear-resisting mould steel for longer service life
  • Indenting mould ensures quality work with easy adjustment and replacement
  • High-power servo motor ensures reliable performance and high precision
  • Special conveying belts ensure stable, speedy and precise card conveying
  • Card direction and overlapping detection function for precise card sending
Technical Specifications
Power supply AC 380V 50/60 HZ Control method PLC + Servo system
Total power 5.5KW Card specification ISO CR80/IEC7810 54x85.6mm
Air source 6kg/cm² (dry) Dimension Approximately L1500xW820xH1750 mm
Air consumption Approx. 50L/min Positioning precision ±0.020mm
Weight Approx 850Kg Operator 1 Person
Speed 5000~6000pcs/h
Customization Options
Brand Name: YL
Model Number: YSMP-5000
Place of Origin: China
Minimum Order Quantity: 1 set
Packaging Details: Exported plywood package
Delivery Time: About 40 days after receiving prepayment
Payment Terms: T/T
Supply Ability: 5 sets per month
Product Images
Plug In SIM Card Manufacturing Machine 5000 - 6000pcs/h SIM Card Punch Machine 0 Plug In SIM Card Manufacturing Machine 5000 - 6000pcs/h SIM Card Punch Machine 1
Frequently Asked Questions
Q: What is the brand name of the SIM Card Personalization Machine?
A: The brand name is YL.
Q: What is the model number?
A: The model number is YSMP-5000.
Q: Where is the machine manufactured?
A: The machine is manufactured in China.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 set.
Q: What are the packaging details?
A: The machine is packaged in exported plywood package.
