Name: Semi Auto Poker Card Playing Card Punching Machine Sequential Sorting Collection Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-PC-600
Availability: InStock

Detail Information

Speed:	400-600 Big Sheets/hour	Maximum Layout Size:	Max 540X780 Mm
Suitable Material:	PVC, ABS, Paper Card Etc	Control Mode:	PLC Program+ Servo System
Air Supply:	6 Kg/c㎡(no Water)	Punching Precise:	±0.15mm
Highlight:	Semi Auto Card Punching Machine , Playing Card Punching Machine , Poker Card Punch Machine

Product Description

Semi Auto Poker Card Playing Card Punching Machine Sequential Sorting Collection Machine

Product Specifications

Speed	400-600 big sheets/hour
Maximum layout size	Max 540X780 mm
Suitable material	PVC, ABS, paper card etc
Control mode	PLC program + servo system
Air supply	6 kg/c㎡ (no water)
Punching precise	±0.15mm

Product Overview

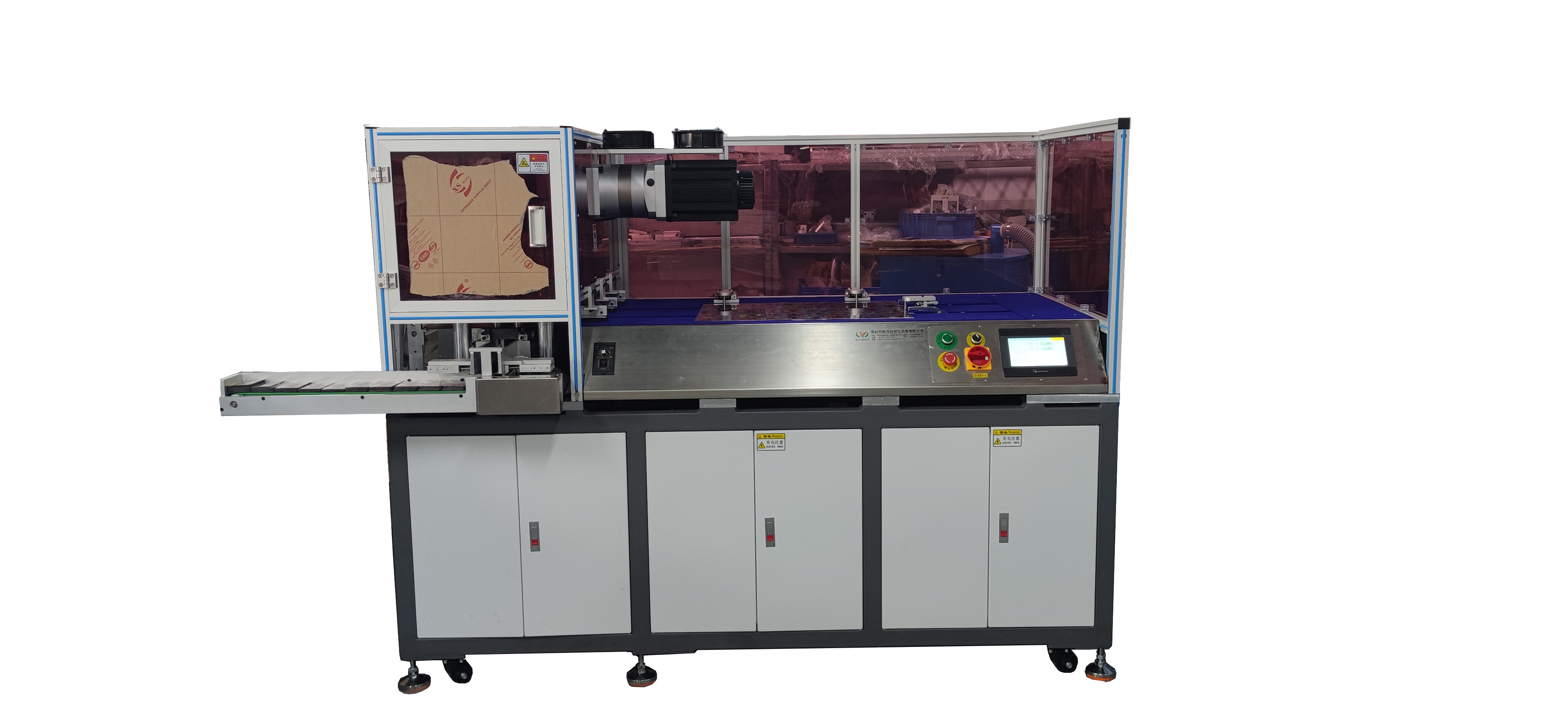

Semi Automatic Poker Card Playing Card Puncher Sequential Sorting Collection Machine YLP-PC-600

This machine features a touch screen with user-friendly interface and utilizes a high-power servo motor for punching power. The servo motor-driven ball screw ensures precise feeding and punching with positioning accuracy of less than ±0.10mm. The professional card collection structure design makes it ideal for sequential sorting of playing cards and plastic cards.

Semi Auto Poker Card Playing Card Punching Machine Sequential Sorting Collection Machine 0

Key Features

High-quality imported servo-system feeding system with adjustable position parameters for each punching point
Premium imported ball screw guide for step feeding with high precision and long service life
High-power servo motor punching power with low noise, stable power, and adjustable speed
Automatic search cursor positioning punching mode ensures high accuracy
PLC program control enables automatic operation with problem alarm and shutdown display

Technical Specifications

Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paper card
Power	7.5KW	Maximum layout	Max 540X780 mm
Air supply	6 kg/c㎡ (no water)	Width	55~110mm
Punch precise	±0.15mm	Thickness	0.25~1.5 mm
Weight	1000Kg	Control mode	PLC program + servo system
Output	400~600 big sheets/hour	Dimension	L2000×W1200×H1650mm

Product Characteristics

Servo motor power source with low noise and stable pressure

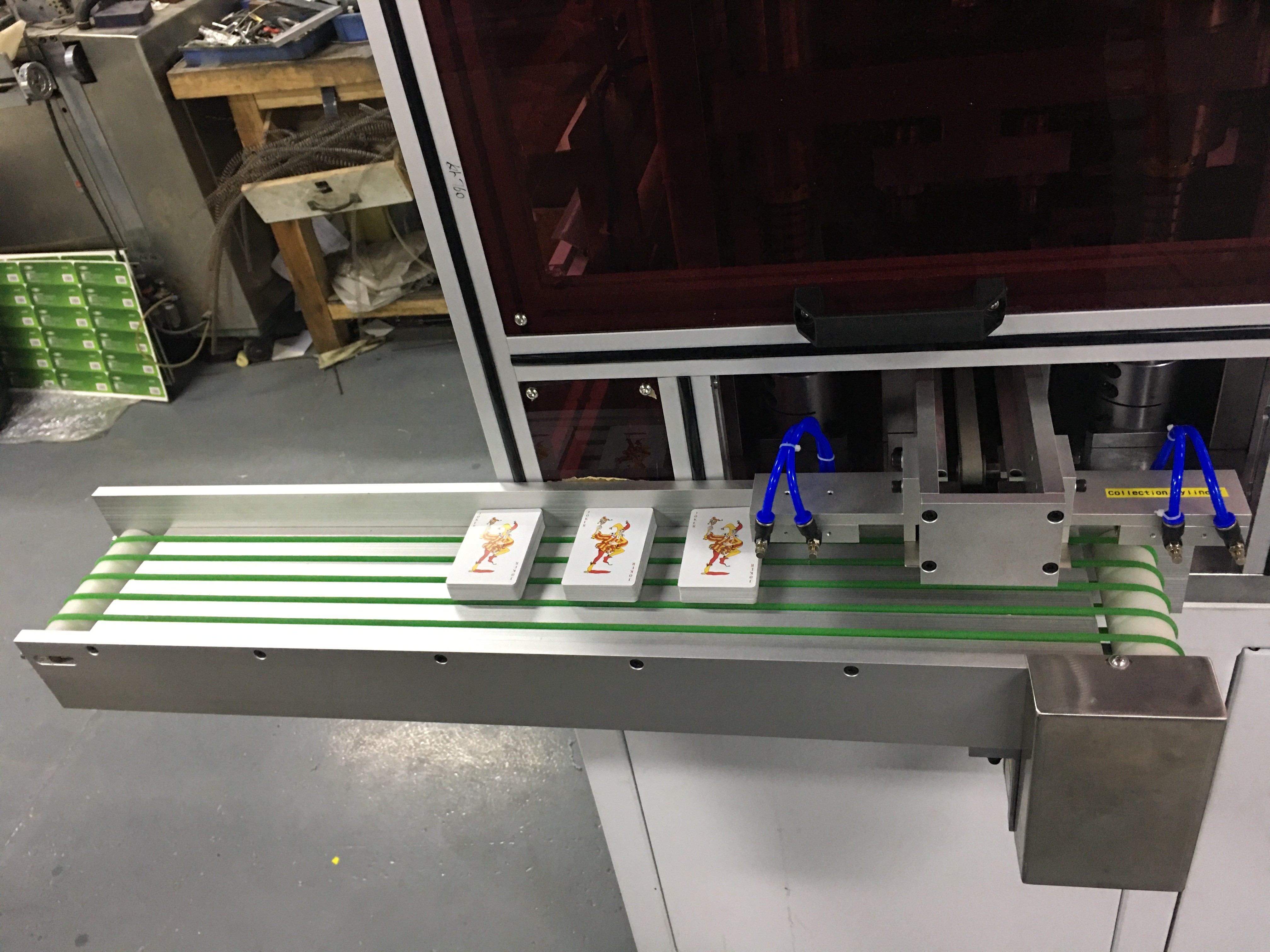

Advanced card collecting system for automatic sequential arrangement

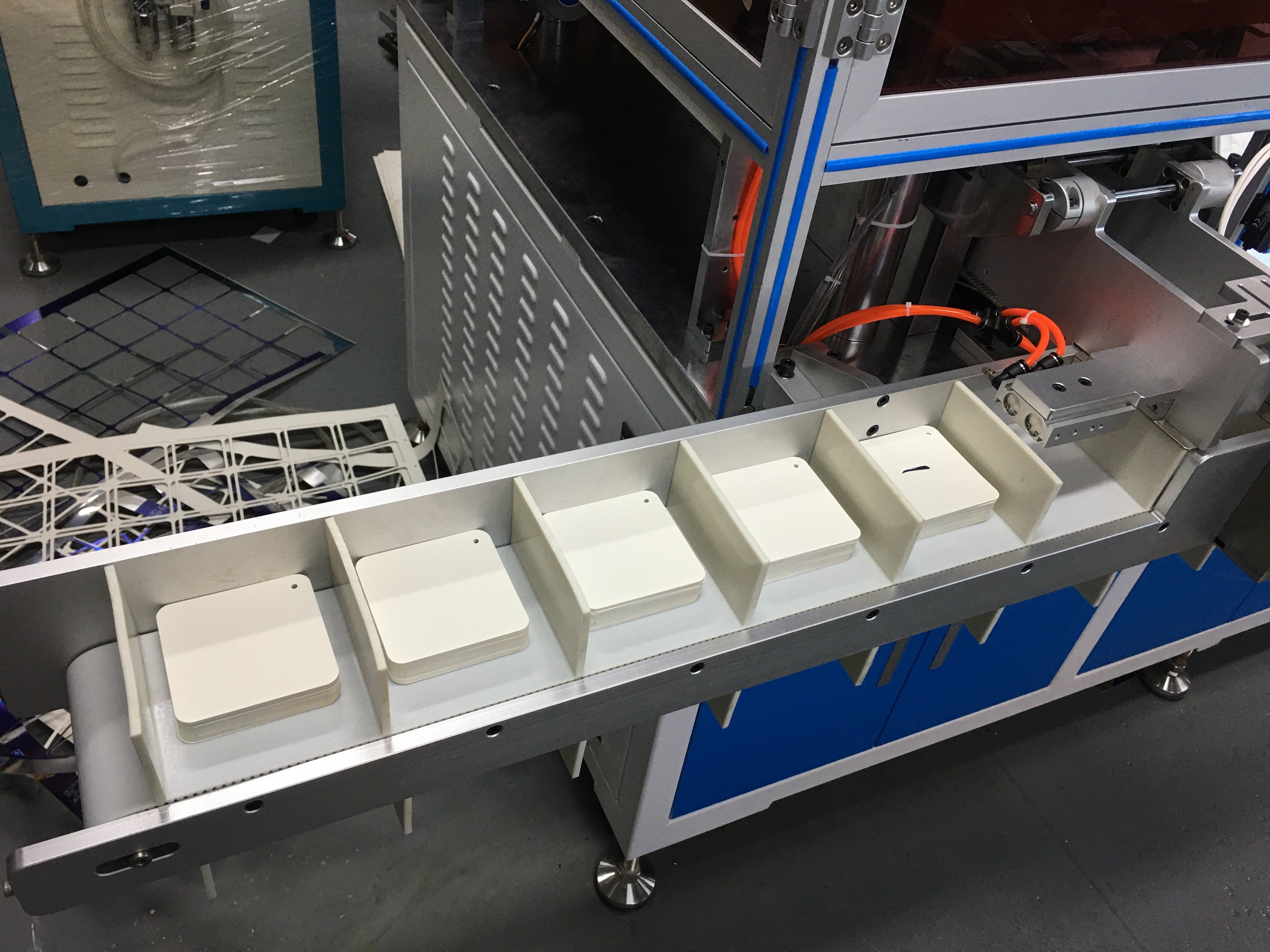

Automatic discharge of punched cards with stacking and collection

Power supply	AC 380V/50 HZ	Sheet format	5X5/5X6/3X8/4X8 /11x5 optional
Total power	7.5KW	Control	PLC control + servo system
Air source	6 kg/cm2	Operators needed	1 person
Air consumption	Approx. 150L/min	Dimension	L2000×W1200×H1650mm
Punching pressure	about 2T-6T	Drive	Servo system
Weight	Approx. 1000KG	Punched card size	Standard size, such as name card, membership card
Punching accuracy	±0.15mm	Productivity	10000~2000PCS/H
Applicable card materials	Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-PC-600

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	around 30-40days
Payment Terms:	T/T,Western Union,D/P,D/A,Western Union
Supply Ability:	5 sets per quarter
