Name: CR80 Half Card Quarter Card SIM Card Punching Machine High Precision YLFP-SIM-4
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLFP-SIM-4
Availability: InStock

Detail Information

Productivity:	About 8000~12000 CPH	Control Method:	PLC Program Control + Servo System
Total Power:	Approx 6KW	Power Supply:	AC380V 50/60 HZ
Feature:	Fast Speed With High Precision	Operator:	1 Person
Highlight:	CR80 SIM Card Punching Machine , SIM Card Punching Machine High Precision

Product Description

CR80 Half Card Quarter Card SIM Card Punching Machine High Precision YLFP-SIM-4

Product Specifications

Attribute	Value
Productivity	About 8000~12000 CPH
Control method	PLC program control + servo system
Total power	Approx 6KW
Power supply	AC380V 50/60 HZ
Feature	Fast speed with high precision
Operator	1 person

Product Description

Automatic CR80 Half Card Quarter Card SIM Card Punching Machine High Precision GSM Card Cutter YLFP-SIM-4

Introduction

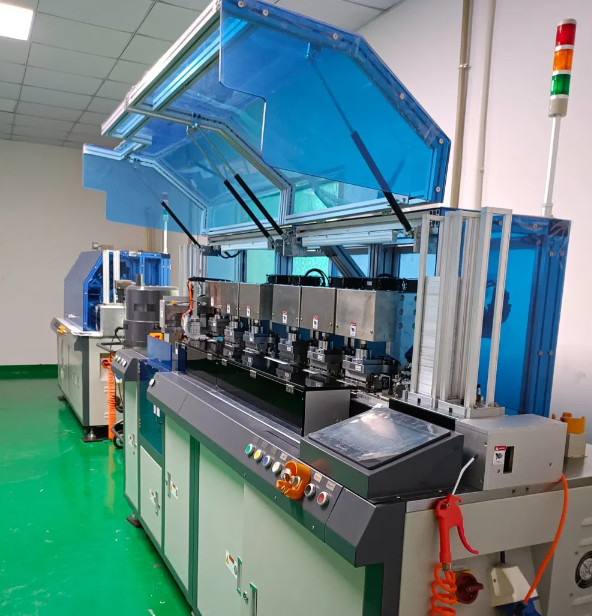

The full automatic SIM card puncher YLFP-SIM-4 is specially designed for punching 1-chip, 2-chip (half card), and 4-chip (quarter card) SIM cards with five precise working stations. The machine features PLC program control with Chinese-English touch screen operation, adjustable parameters, fast speed, and high precision.

Key Features

Advanced punching die design with imported high hardness steel for extended service life
High-quality indentation mold for better small card performance
High-power servo motor for adjustable, precise punching
Modular structure allowing simultaneous or independent workstation operation
Optional double card feeders for flexible processing
Special belt-type card conveying mechanism for stable, high-speed operation
Automatic detection and alarm systems for card feeding and collection
PLC program control with color touch screen interface

Technical Parameters

Power supply	AC380V 50/60 HZ	Control method	PLC program control + servo system
Total power	Around 6 KW	Operator	1 person
Air source	6kg/cm²(no water)	Positioning precision	±0.020mm
Air consumption	Approx 80L/min	Working station	6 stations
Weight	Approx 900Kg	Card specification	ISO CR80/IEC7810 54x85.6mm
Output	8000~12000 pcs/h	Overall dimension	Approx L2160×W900×H1750mm

Additional Features

High die punching accuracy with stable operation

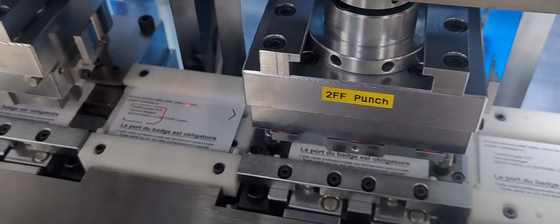

6 punching stations for 2FF/3FF/4FF production without tool changes
Servo-controlled punching mold with low noise and high stability
Double card detection system for quality assurance
Unique card centering system for special shape cards
Photoelectron sensor for precise card centering
Servo-controlled card transfer belt for safety and stability
Improved servo motor for perfect punching performance
User-friendly HMI system for easy operation
Flexible workstation configuration options

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLFP-SIM-4

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-35days
Payment Terms:	Western Union, D/A, D/P, T/T
Supply Ability:	1 set per 35 days
