Name: 1 Chip 2 Chip SIM Card Punching Machine 2FF 3FF 4FF GSM Card Cutter YLFP-SIM-2
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLFP-SIM-2
Availability: InStock

Detail Information

Productivity:	About 4000~6000 CPH	Power Supply:	AC380V 50/60 HZ
Weight:	Approx 1000Kg	Working Station:	5 Stations
Card Specification:	ISOCR80/IEC7810 54x85.6mm	Overall Dimension:	Approx L2160×W900×H1750mm
Highlight:	Card Punching Machine 2FF , SIM Card Punching Machine , 3FF GSM Card Cutter

Product Description

1 Chip 2 Chip SIM Card Punching Machine 2FF 3FF 4FF GSM Card Cutter YLFP-SIM-2

Product Specifications

Attribute	Value
Productivity	About 4000~6000 CPH
Power supply	AC380V 50/60 HZ
Weight	Approx 1000Kg
Working station	5 stations
Card specification	ISOCR80/IEC7810 54x85.6mm
Overall dimension	Approx L2160×W900×H1750mm

Product Overview

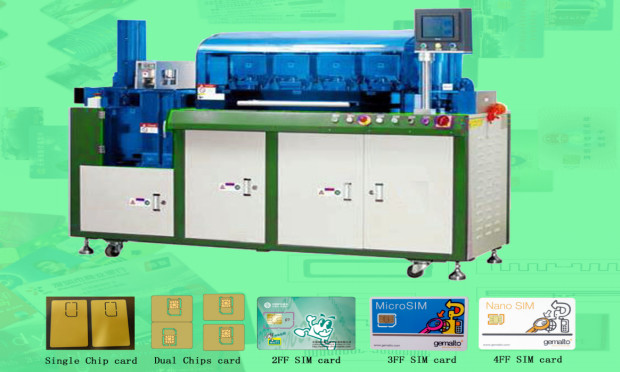

The Full Automatic 1-chip 2-chip SIM Card Punching Machine YLFP-SIM-2 is designed for precise and efficient punching of both 1-chip and 2-chip SIM cards across five working stations. This PLC-controlled system features a Chinese-English touch screen interface with adjustable parameters for high-speed, high-precision operation.

Key Features

Advanced punching die design with imported high-hardness steel cutting edges for extended service life
High-power servo motor provides adjustable parameters, large shearing torque, and high precision
Modular structure allows four workstations to operate simultaneously or independently
Optional dual card feeders for flexible processing requirements
Belt-type card conveying mechanism ensures stable performance without card damage
Automatic detection systems for card feeding direction and double card feeding
Safety features including automatic alarm for empty feeder or full collection magazine

Technical Parameters

Power supply	AC380V 50/60 HZ
Total power	5.5 KW
Operator	1 person
Air source	6kg/cm² (no water)
Positioning precision	±0.020mm
Output	4000~6000 pcs/h (depending on punching mode)

Additional Features

6 punching stations for 2FF/3FF/4FF production without tool changes
Servo-controlled punching mold with low noise and high stability
Unique card centering system for special-shaped cards
Photoelectron sensors ensure precise card positioning
Servo-controlled card transfer belt for safety and stability
User-friendly HMI interface for easy operation
Flexible workstation configuration options

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLFP-SIM-2

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-35days
Payment Terms:	Western Union, D/A, D/P, T/T
Supply Ability:	1 set per 35 days
