Name: Full Automatic SIM Card Puncher 2FF 3FF 4FF GSM One Chip Card Cutter YLFP-SIM-1
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLFP-SIM-1
Availability: InStock

Detail Information

Speed:	5000~6000 CPH/hour	Power Supply:	AC380V 50/60 HZ
Air Source:	6kg/cm²（dry）	Air Consumption:	Approx. 80L/min
Control Method:	PLC Program Control + Servo System	Positioning Precision:	±0.020mm
Highlight:	gsm one chip card cutter , sim card puncher full auto

Product Description

Full Automatic SIM Card Puncher 2FF 3FF 4FF GSM One Chip Card Cutter YLFP-SIM-1

Product Specifications

Attribute	Value
Speed	5000~6000 CPH/hour
Power supply	AC380V 50/60 HZ
Air source	6kg/cm² (dry)
Air consumption	Approx. 80L/min
Control method	PLC program control + servo system
Positioning precision	±0.020mm

Product Overview

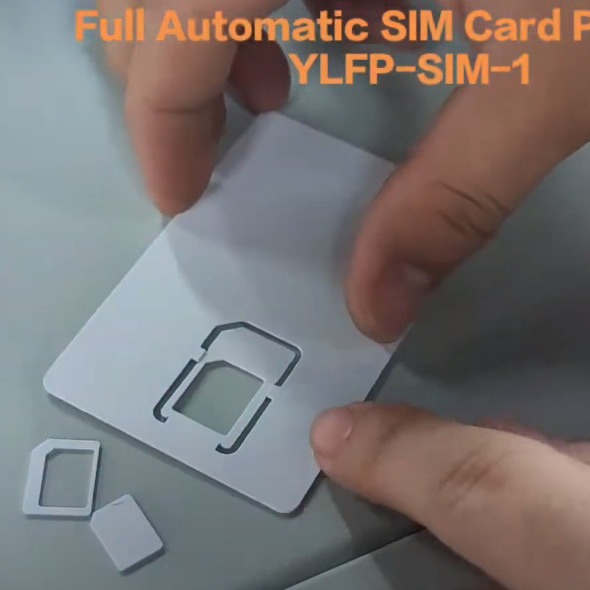

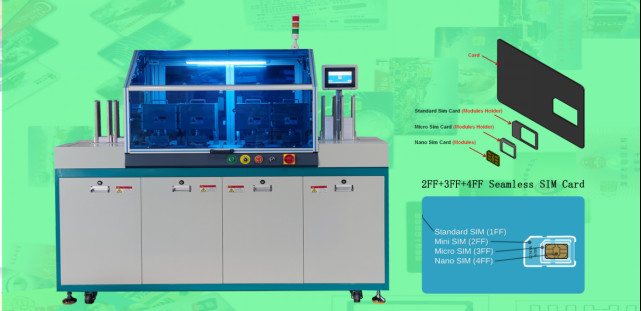

The Full Automatic SIM Card Puncher YLFP-SIM-1 integrates card feeding direction checking, transmission, punching, kiss punching, and collection functions. Controlled by PLC program with Chinese-English touch screen operation, this machine precisely punches 2FF Mini, 3FF Micro, and 4FF Nano SIM cards from 1FF Standard SIM cards in one pass.

Note: The YLFP-SIM-1 model punches single-chip SIM cards only. For dual-chip SIM card processing, we recommend the YLFP-SIM-2 model.

Key Features

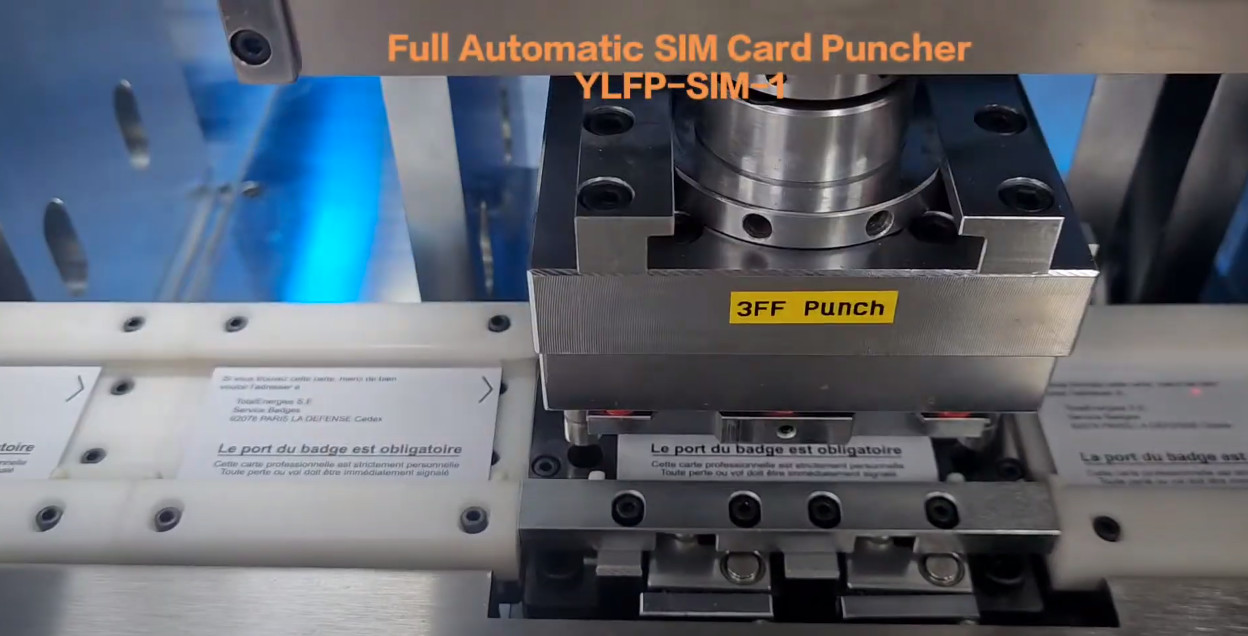

Advanced punching die design with imported high-hardness steel cutting edge for extended service life
High-quality indentation mold for superior small card performance and easy maintenance
High-power servo motor with adjustable parameters for precise, high-torque operation
Modular design with four workstations for simultaneous or independent operation
Optional dual card feeder configuration for flexible processing
Special belt-type card conveying mechanism for scratch-free, high-speed performance
Automatic card feeding direction and double feeding detection
Smart alarm system for empty feeders or full collection magazines
PLC-controlled operation with Chinese/English touch screen interface

Technical Parameters

Power supply	AC380V 50/60 HZ
Total power	5.5 KW
Operator	1 person
Positioning precision	±0.020mm
Working stations	4 stations (combined punching and indenting)
Card specification	ISOCR80/IEC7810 54x85.6mm
Output	5000~6000 pcs/h (depending on punching mode)
Dimensions	L2100×W900×H1750mm
Weight	Approx 800Kg

Additional Specifications

Also known as: SIM Card Puncher, Full Auto SIM Card Die Cutter
Model: YLFP-SIM-1
Materials: PVC, Teslin, ABS, PC, PETG, Paper, etc.
Production capacity: 20 sets/year
Origin: China
Packaging: Export wooden case

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLFP-SIM-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-35days
Payment Terms:	Western Union,D/A,D/P,T/T
Supply Ability:	1 set per 35 days
