Name: Full Auto Poker Playing Card Die Cutting Machine PVC ABS Card Punching System
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-APC-800
Availability: InStock

Detail Information

Power Supply:	AC 380V/50 HZ	Power:	7.5KW
Air Supply:	6 Kg/c㎡(no Water)	Punching Precise:	±0.10mm
Suitable Material:	PVC, ABS, Paper Card	Output:	600~800 Big Sheets/hour
Highlight:	PVC Card Punching System , full auto card die cutting machine , ABS Card Punching System

Product Description

Full Auto Poker Playing Card Die Cutting Machine PVC ABS Card Punching System

Product Specifications

Attribute	Value
Power supply	AC 380V/50 HZ
Power	7.5KW
Air supply	6 kg/c㎡(no water)
Punching precise	±0.10mm
Suitable material	PVC, ABS, paper card
Output	600~800 big sheets/hour

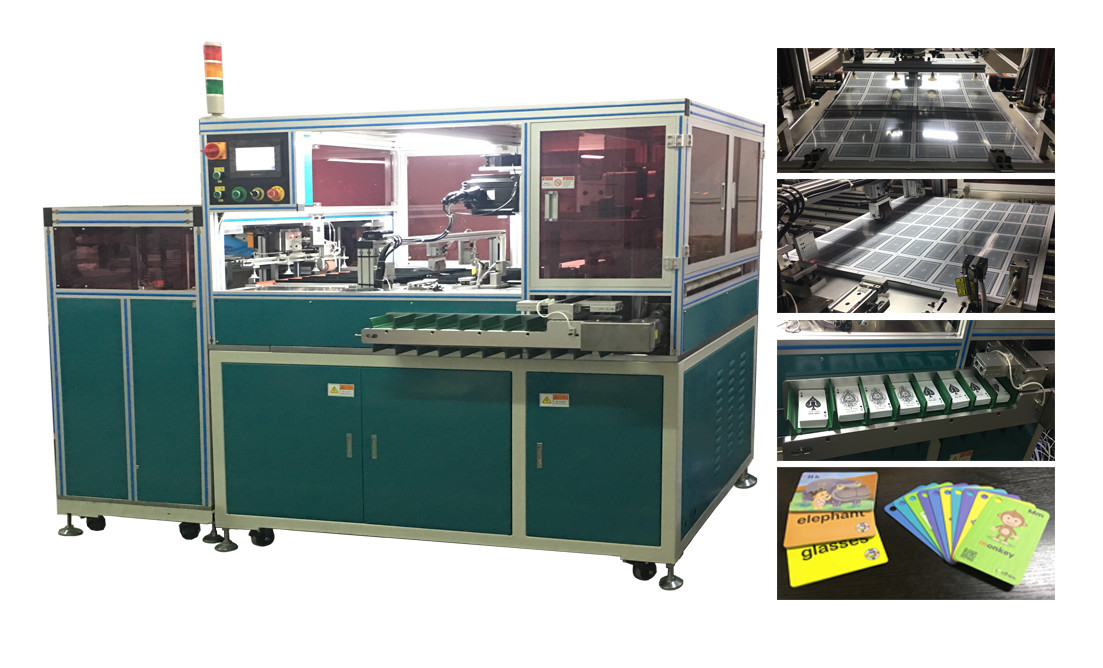

Full Automatic Poker Card Punching Machine YLP-APC-800

This precision machine is designed for automatically punching poker playing card paperboard (typically 6*9 layout) into standard poker cards and collecting them as complete sets (54 cards per set). Featuring advanced automation and high precision, it delivers exceptional performance for card manufacturing.

Key Features

High-sensitivity laser sensor with dual stepping systems for vertical/horizontal cursor positioning
Servo motor-driven ball screw ensures positioning accuracy within ±0.10mm
Touch screen interface with user-friendly operation
High-power servo motor provides stable punching power with adjustable speed
Automatic sheet suction and feeding system reduces labor requirements
Dual positioning modes: automatic search cursor and side positioning
PLC program control with automatic operation and troubleshooting alerts
Professional card collection structure for poker cards and serial number plastic cards

Technical Parameters

Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paper card
Total power	7.5 KW	Output	600~800 big sheets/hour
Air source	6 kg/c㎡(no water)	Control mode	PLC program + servo system
Punching precise	±0.10mm	Suitable layout	6x9 (570*585mm), 5x11 (480 x 690mm)
Number of operators	1 person	Dimensions	L2300W900H1750mm (varies by format)
Weight	1200~4000kg

Also known as: Full Automatic Poker Playing Card Puncher, Full Auto Poker Playing Card Die Cutter, or Full Auto Poker Playing Card Die Cutting Machine.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-APC-800

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-35days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	5 sets per quarter
