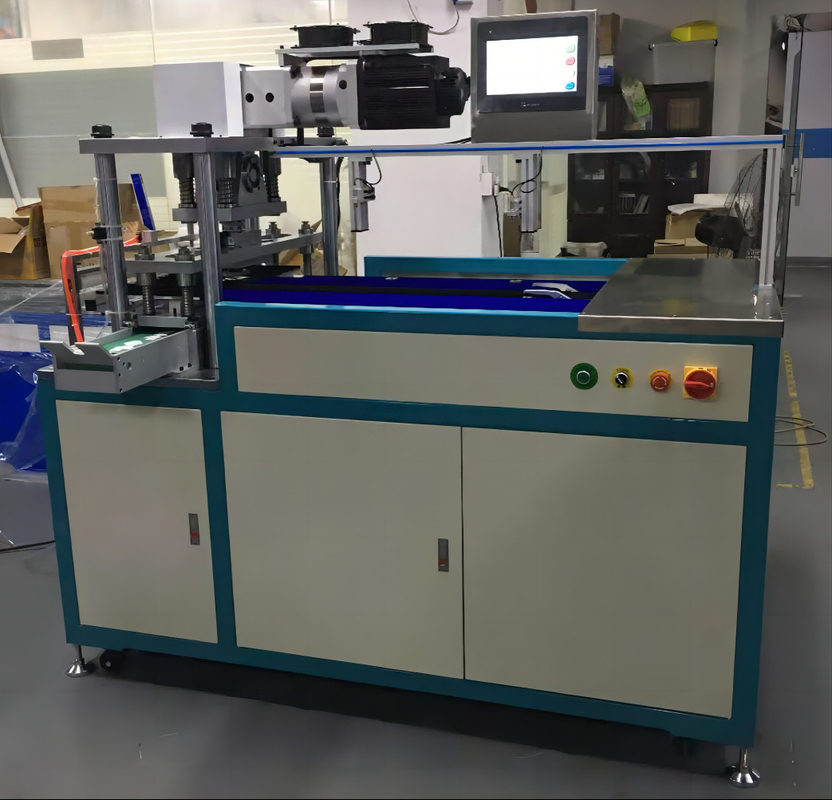

Name: Automatic AC 380V 50HZ Card Punching Machine With Man Machine Interface Operation
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-SP-XY
Availability: InStock

Detail Information

Power Supply:	AC 380V/50HZ	Power:	5.5KW
Air Supply:	6 Kg/c㎡(no Water)	Air Consumption:	About 70L/min
Weight:	850Kg	Punch Precise:	±0.10mm
Suitable Material:	PVC, ABS, Paper Card Etc.	Maximum Layout:	350X600mm(Max)
Output:	4000~6000 Pcs /hour(depends On The Punch Head Number)	Control Mode:	PLC Program+ Servo System
Number Of Operators:	1 Person	Dimensions:	L1700×W1080×H1600mm
Highlight:	Auto Card Punching Machine , 50HZ Card Punching Machine , AC 380V Card Punch Machine

Product Description

Automatic AC 380V 50HZ Card Punching Machine With Man Machine Interface Operation

Product Specifications

Attribute	Value
Power supply	AC 380V/50HZ
Power	5.5KW
Air supply	6 kg/c㎡(no water)
Air consumption	About 70L/min
Weight	850Kg
Punch precise	±0.10mm
Suitable material	PVC, ABS, paper card etc.
Maximum layout	350X600mm(Max)
Output	4000~6000 pcs/hour (depends on punch head number)
Control mode	PLC program + servo system
Number of operators	1 person
Dimensions	L1700×W1080×H1600mm

Abnormal Shape Card Die Cutter YLP-SP-XY

Function and Application

This card punching machine features a touch screen with user-friendly man-machine interface operation. It utilizes two groups of servo-driven screw modules in X and Y directions for precise plastic sheet feeding, achieving high-precision two-direction positioning.

Ideal for punching various special-shaped cards, the machine can process whole printed sheet materials without pre-cutting into strips, enabling convenient one-time completion of the punching process.

Key Features

X and Y directional sheet feeding with adjustable distance and frequency based on printed layout
High-power servo motor ensures low noise, stable power output, and adjustable punching speed
System stores up to 10 layout position parameters for quick product changeovers
PLC program control enables automatic operation with real-time problem alerts and shutdown
Eliminates need for pre-cutting materials before punching

Also known as: Customized Shape Card Puncher, Specially Shaped Card Die Cutter, or Abnormal Shape Card Die Cutter YLP-SP-XY

Technical Parameters

Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paper card etc.
Power	5.5KW	Maximum layout	350X600mm(Max)
Air supply	6 kg/c㎡(no water)	Output	4000~6000 pcs/hour
Air consumption	About 70L/min	Control mode	PLC program + servo system
Weight	850Kg	Number of operators	1 person
Punch precise	±0.10mm	Dimensions	L1700×W1080×H1600mm

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-SP-XY

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	45-60days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	2 sets per quarter
