Name: Full Auto Playing Card Cutter High Speed Punching And Sorting Machine YLP-APC-1000
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-APC-1000
Availability: InStock

Detail Information

Output:	800-1000 Big Sheets/hour	Maximum Punched Sheet Size:	889 X 590mm
Suitable Material:	PVC、ABS、paper (different Molds Matching Different Materials)	Card Collection Width Range:	50~70 Mm
Punched Sheet Thickness Range:	0.25~1.5 Mm	Punching Precise:	±0.10mm
Highlight:	Full Auto Playing Card Cutter , Playing Card Cutter High Speed , Auto Punching And Sorting Machine

Product Description

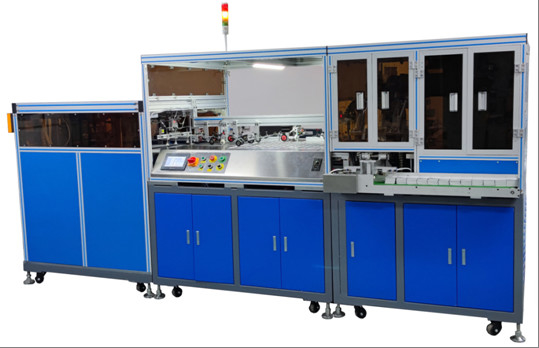

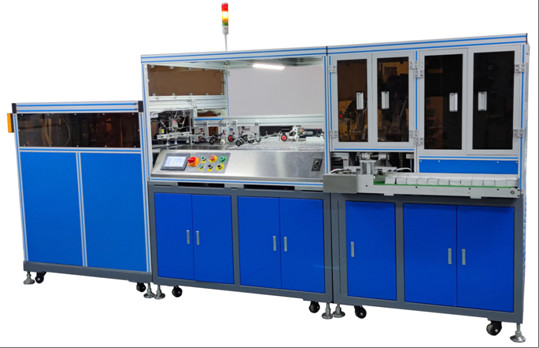

Full Auto Playing Card Cutter High Speed Punching And Sorting Machine YLP-APC-1000

Product Specifications

Attribute	Value
Output	800-1000 big sheets/hour
Maximum punched sheet size	889 X 590mm
Suitable material	PVC, ABS, paper (different molds matching different materials)
Card collection width range	50~70 mm
Punched sheet thickness range	0.25~1.5 mm
Punching precision	±0.10mm

Product Overview

The YLP-APC-1000 is a fully automatic playing card cutter designed for high-speed punching and sorting of poker cards. This advanced machine features:

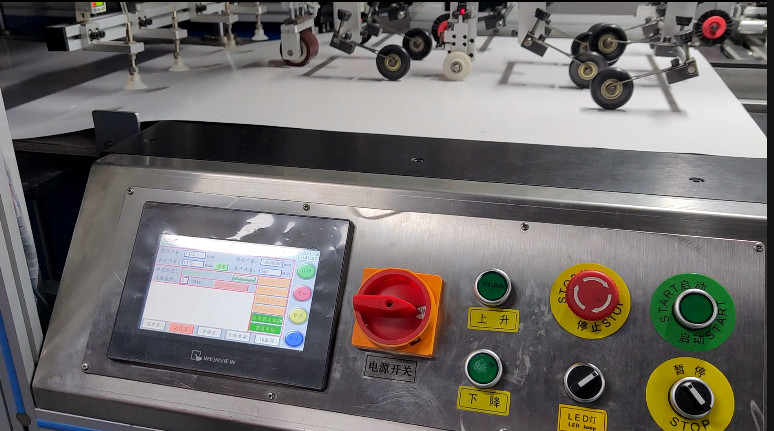

Touch screen interface for user-friendly operation
High-power servo motor for punching power
Laser sensor with stepping systems for precise positioning
Dual-axis (X and Y) plane positioning system
Consistent punching accuracy regardless of material edge cutting

Key Features

Precision Control: High-sensitivity photoelectric sensors and imported servo system allow precise adjustment of punching point parameters
Automated Operation: Integrated functions include sheet suction/feeding, precise conveying, punching, waste discharge, and card collection
Adjustable Performance: Servo motor provides stable power with adjustable punching speed for different material thicknesses
Flexible Modes: Supports both automatic search cursor positioning and side positioning punching modes
Smart Control: PLC program enables automatic operation with problem alerts and solution displays

Technical Parameters

Main Specifications

Power supply	AC 380V/50 HZ
Power	10.5KW
Air supply	6 kg/cm² (dry)
Punching precision	±0.10mm
Output	800-1000 sheets/hour
Weight	Approx. 2000Kg
Dimensions	L4000×W1200×H1750mm

Performance Characteristics

A: High-precision sensor and servo motor system for adjustable punching point positioning
B: Hydraulic power source provides quiet, stable operation with adjustable speed

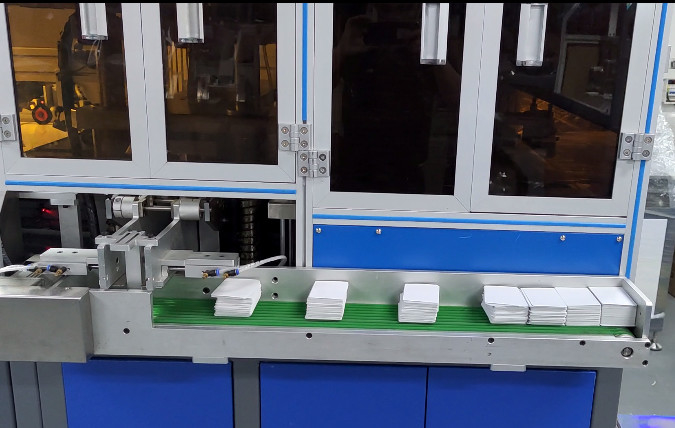

C: Advanced card collection system for automatic arrangement and sorting
D: Automated waste discharge with stacked card collection

Additional Specifications

Sheet formats	5X5/5X6/3X8/4X8/11x5 (optional)
Control system	PLC + servo system
Punching pressure	2T-6T
Productivity	20,000-44,000 pieces/hour
Materials	Paper, PVC, ABS, PET, and composite materials

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-APC-1000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	around 30-40days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	5 sets per quarter
