Name: AC 380V Plastic Card Punching Machine 4x8 Layout Smart Card Die Cutting Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-4
Availability: InStock

Detail Information

Suitable Layout:	4×8/4×10 Layout	Production Speed:	12000-14000 Cards Per Hour
Material Used:	PVC, ABS, PETG, Paper Etc.	Power Supply:	AC 380V/50 HZ
Dimension:	1700mm×800mm×1500mm	Weight:	800kgs
Highlight:	Card Punching Machine 4x8 , AC 380V Card Punching Machine , 4x8 Card Die Cutting Machine

Product Description

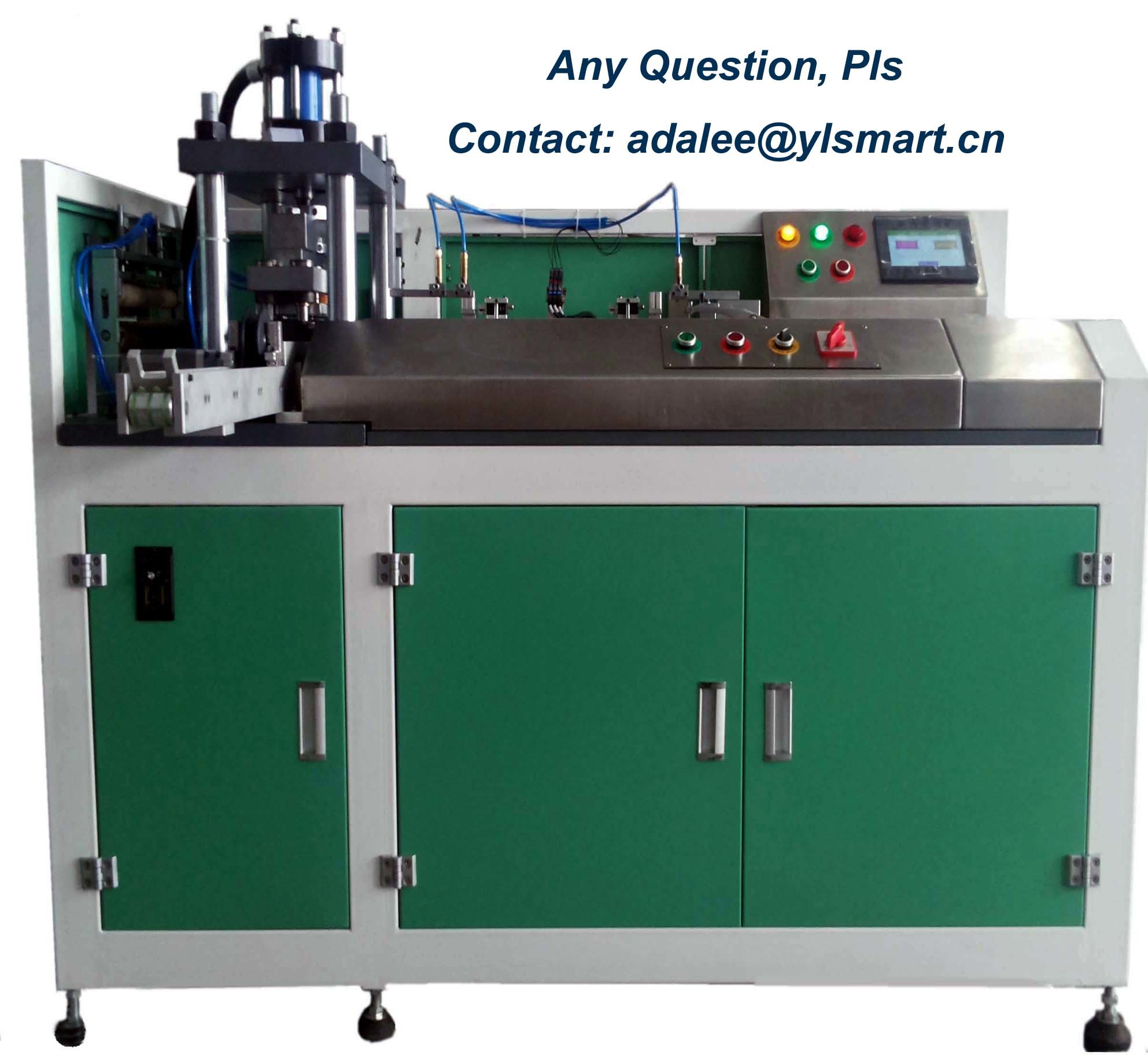

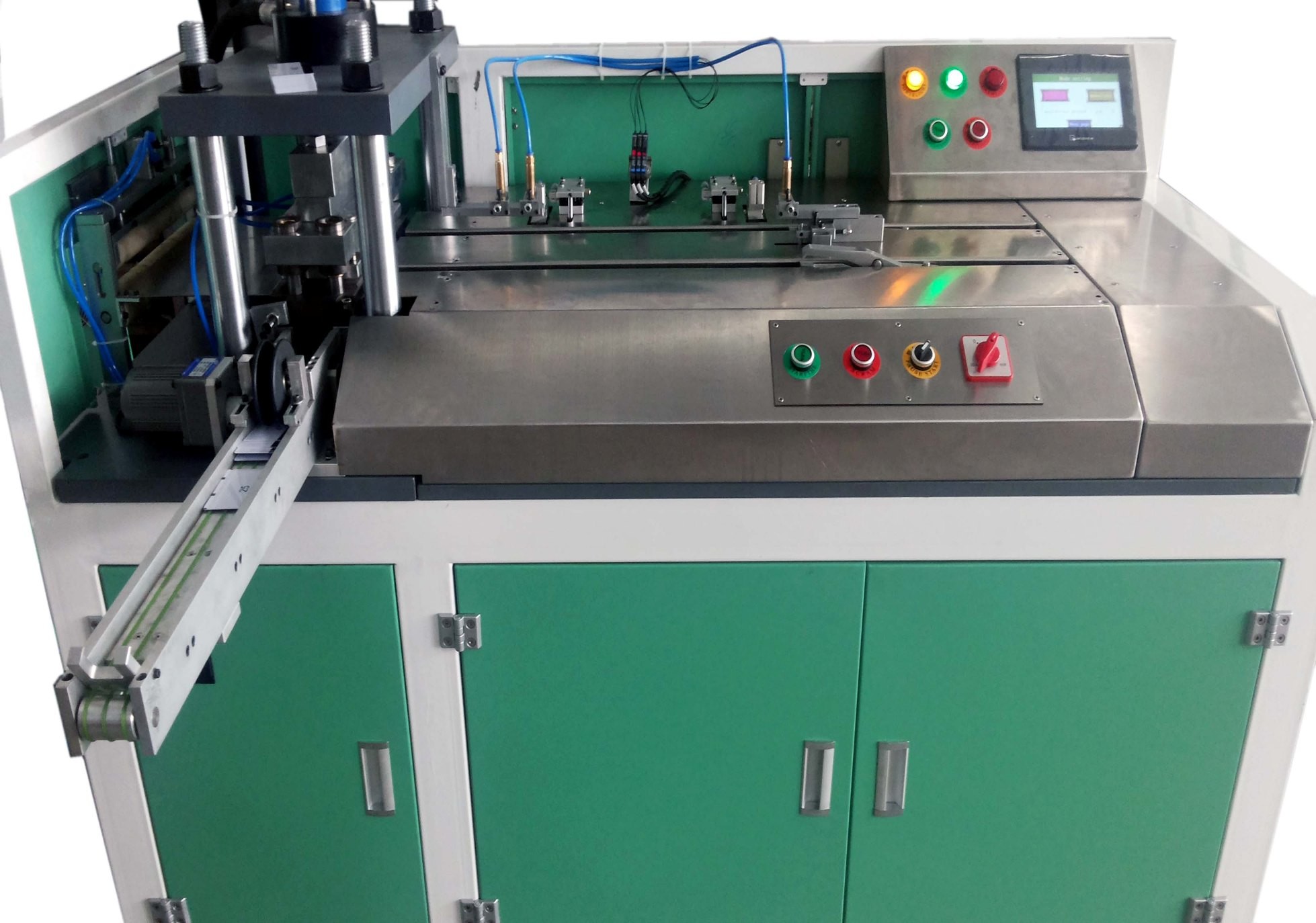

AC 380V Plastic Card Punching Machine 4x8 Layout Smart Card Die Cutting Machine

Product Overview

The YLP-4 is an economical automatic card punching machine featuring compact structure, reliable performance, and full automatic operation. Controlled by PLC program with Chinese/English bilingual touch screen interface, it delivers high-speed, precise card punching for various materials.

Key Specifications

Attribute	Value
Suitable Layout	4×8/4×10 layout
Production Speed	12,000-14,000 cards per hour
Material Compatibility	PVC, ABS, PETG, paper, and mixed materials
Power Supply	AC 380V/50 HZ
Dimensions	1700mm × 800mm × 1500mm
Weight	800kg

Key Features

High-speed punching of laminated plastic sheets into ISO CR80 cards
Premium PLC, touch screen, and servo system ensure machine stability
Precision guide screws for accurate card conveying and punching

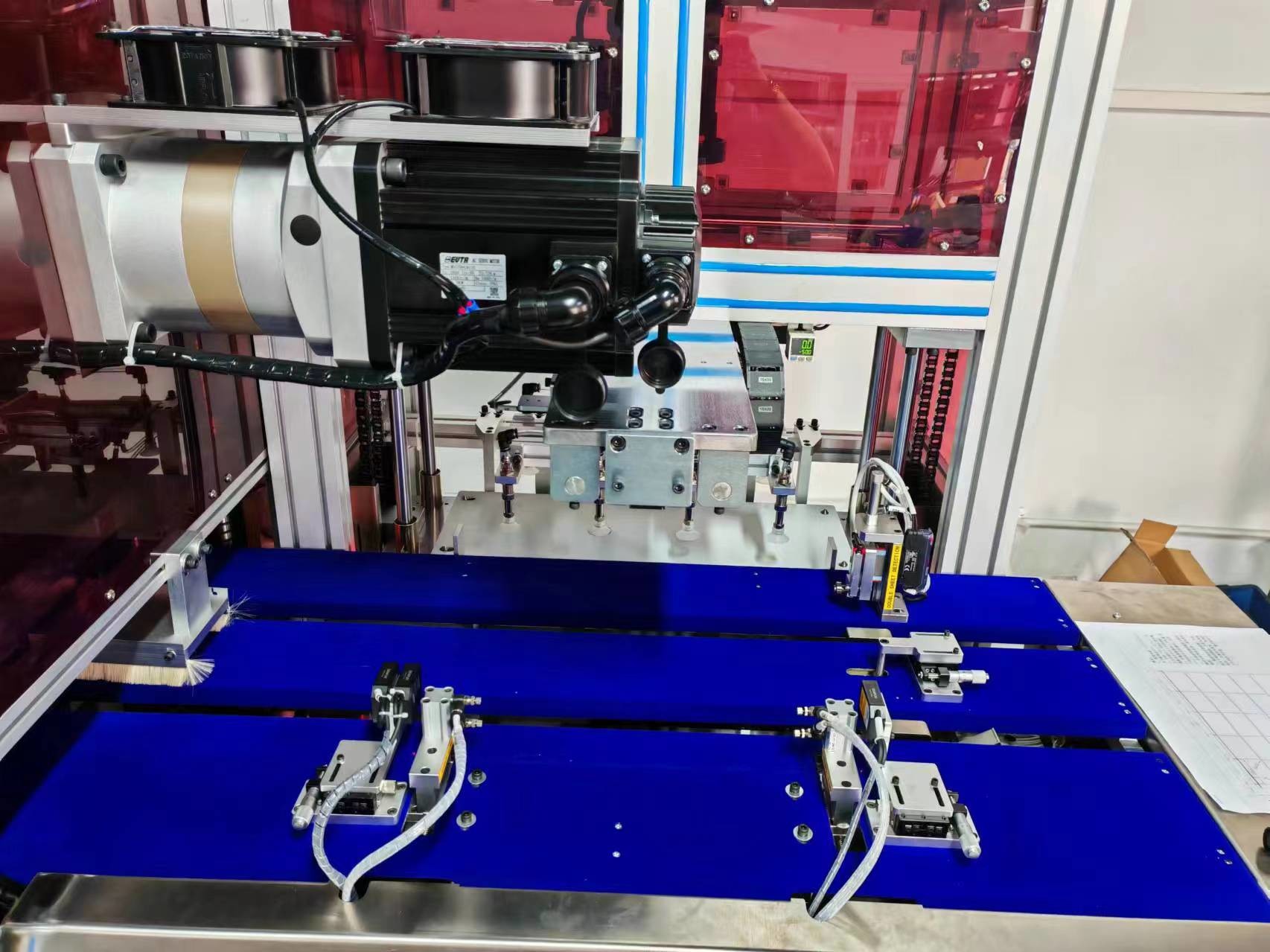

Reliable servo motor provides low noise and stable pressure control
Specially designed punching mold for perfect results and long service life

Technical Parameters

Parameter	Specification
Power Supply	AC 380V/50 HZ
Total Power	3.5KW
Control System	PLC program + servo system
Air Source Requirement	6 kg/cm² (dry)
Operator Requirement	1 person
Punching Precision	±0.10mm
Maximum Speed	12,000-14,000 cards/hour

Included Spare Parts

SN	Part Name	Part Model	Quantity
1	Electromagnetic Valve	4V110	1pc
2	Relay14PIN DC24V	MY4N-J DC 24V	3pcs
3	Fuse	10A	5pcs
4	Fuse holder	RT18-32	1pc
5	Synchronous belt	10*200XL	1pc
6	Screw driver		1 set
7	Open spanner		1 set

Comprehensive Service Package

Pre-Sale: Professional consultation, machine selection assistance, and factory visit arrangements

During Sale: Quality supervision, product acceptance, and timely shipping

After-Sale: Installation guidance, operator training, and lifetime technical support

Warranty Information

1-year guarantee period with efficient service response. For unsolvable technical issues within warranty, we provide on-site support.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-4

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T,Western Union,MoneyGram,Western Union
Supply Ability:	5 sets per quarter
