Name: Semi Auto Plastic Card Sheet Puncher Servo Motor 3 Up Smart Card Production Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-3
Availability: InStock

Detail Information

Sheet Layout:	3x6/3×7/3×8/3×10 Layout	Production Speed:	9000~12000 Pcs /hr
Material:	Various Plastic Sheets Including PVC, ABS, PETG, Etc.	Power Supply:	AC 380V/50 HZ
Air Source:	6 Kg/cm2(Dry)	Air Consumption:	70L/min
Highlight:	Semi Auto Plastic Card Sheet Puncher , 3 Up Card Production Machine , Smart Card Production Machine

Product Description

Semi Auto Plastic Card Sheet Puncher Servo Motor 3 Up Smart Card Production Machine

Key Specifications

Sheet Layout	3x6/3×7/3×8/3×10 layout
Production Speed	9000~12000 pcs/hr
Material Compatibility	PVC, ABS, PETG, and other plastic sheets
Power Supply	AC 380V/50 HZ
Air Source	6 kg/cm² (Dry)
Air Consumption	70L/min

Product Overview

The YLP-3 Semi-auto Plastic Card Sheet Puncher is an economical solution featuring compact structure, reliable performance, and full automatic operation. Controlled by PLC program with bilingual (Chinese/English) touch screen interface, this machine offers high-speed precision punching with automatic sheet feeding to reduce operator workload.

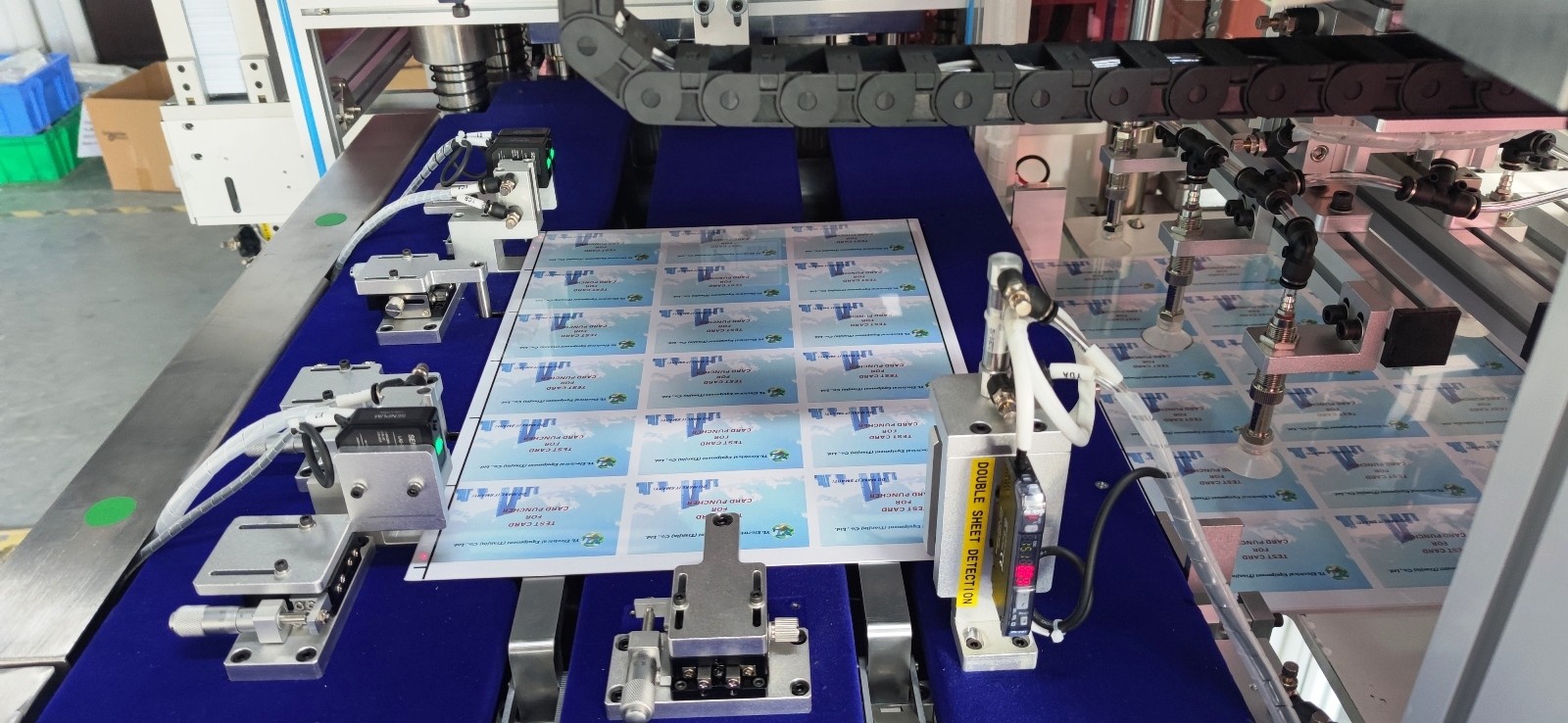

Precisely punches laminated plastic sheets (3×7/3×8/3×10 layout) into ISO CR80 cards
High-quality PLC, touch screen and servo system ensure machine stability
Precision guide screws maintain accurate card conveying and punching

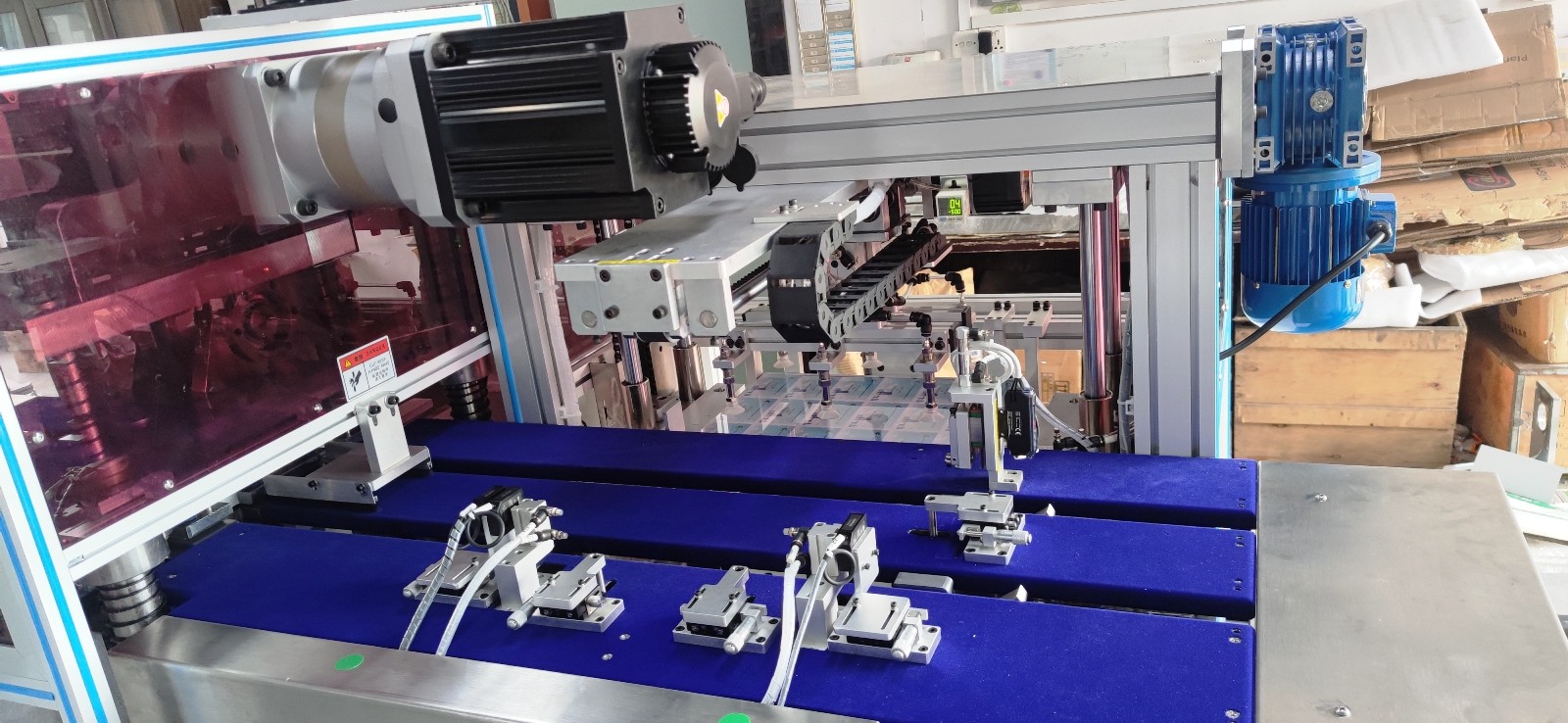

Reliable servo motor provides punching power with minimal failure rate
Specially designed punching mold delivers perfect results and extended service life

Technical Parameters

Parameter	Specification
Power Supply	AC 380V/50 HZ
Total Power	3.5KW
Control Mode	PLC programming + servo system
Air Source	6 kg/cm² (dry)
Operator Requirement	1 person
Dimensions	L1700×W830×H1520mm
Weight	Approx. 800Kg
Punching Precision	±0.10mm
Maximum Speed	9000~12000 cards/hour

Included Spare Parts

SN	Part Name	Part Model	Quantity
1	Electromagnetic Valve	4V110	1pc
2	Relay14PIN DC24V	MY4N-J DC 24V	3pcs
3	Fuse	10A	5pcs
4	Fuse holder	RT18-32	1pc
5	Synchronous belt	10*200XL	1pc
6	Screw driver		1 set
7	Open spanner		1 set

Service & Support

Pre-sale Services: Professional consultation, machine selection guidance, factory visit arrangements, and detailed product information.

Sales Services: Production updates, quality supervision, product acceptance, and timely shipping.

After-sale Services: Installation support, operator training, lifetime technical support, and regular customer follow-ups.

Warranty

1-year guarantee period with efficient service response. For complex issues, we provide on-site support within the warranty period.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-3

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram, Western Union
Supply Ability:	5 sets per quarter
