Name: Speedy Plastic Card Punching Machine A4 Sheet 2X5 Semi Auto Smart Card Die Cutter
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-2
Availability: InStock

Detail Information

Material:	PVC, ABS, Pet, PETG, Paper Or Mixed Materials Etc	Max. Speed:	7000 Cards Per Hour (2×5 Layout)
Compressed Air:	6KG/CM2	Punching Precision:	±0.10mm
Power Supply:	AC380V 50/60HZ	Applicable PVC Sheet:	2x5 Layout
Highlight:	Speedy Card Punching Machine , Card Punching Machine A4 , 2X5 Smart Card Die Cutter

Product Description

Speedy Plastic Card Punching Machine A4 Sheet 2X5 Semi Auto Smart Card Die Cutter

Key Specifications

Material Compatibility	PVC, ABS, PET, PETG, paper or mixed materials
Maximum Speed	7000 cards per hour (2×5 layout)
Compressed Air Requirement	6KG/CM²
Punching Precision	±0.10mm
Power Supply	AC380V 50/60HZ
Applicable PVC Sheet Layout	2x5 layout

Product Overview

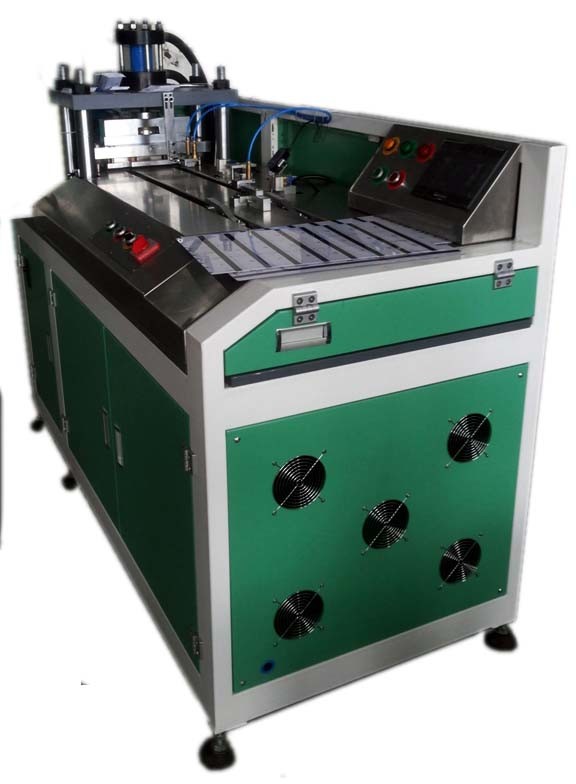

The YLP-2 Speedy Plastic Card Puncher is an economical semi-automatic card punching machine featuring compact structure and reliable performance. Controlled by PLC program with bilingual (Chinese/English) touch screen interface, it offers high-speed precision punching with automatic sheet feeding to reduce operator workload.

Key Features

Precision punching of laminated plastic sheets (2×5 layout) into ISO CR80 cards
Mitsubishi PLC control system with touch screen interface
High-quality AIRTAC pneumatic components for durable operation
Taiwan ABBA guide screws ensure precise card conveying and punching
ASHUN servo motor provides quiet operation and stable pressure control
Specially designed punching mold for perfect results and long service life

Technical Parameters

Parameter	Specification
Power Supply	AC 380V/50 HZ
Power Consumption	2.5KW
Control System	PLC program control + servo system
Air Source Requirement	6 kg/cm² (dry)
Operator Requirement	1 person
Dimensions	1700×800×1500mm (L×W×H)
Weight	Approx. 650Kg
Punching Standard	ISO CR-80-ISO7810 international standard

Packaging & Service

Machine is packed with PE film protection inside standard export plywood cases.

Pre-Sale Services:

Professional consultation on raw material matching, machine selection, and production line setup. Factory visits welcome with invitation letter available.

Sales Services:

Production scheduling updates, quality supervision, product acceptance, and timely shipping.

After-Sale Support:

On-site installation guidance, operator training, lifetime technical support, and regular follow-ups.

Warranty

1-year guarantee period with efficient service response. For complex issues, we provide on-site technical support within the warranty period.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-2

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram, Western Union
Supply Ability:	5 sets per quarter
