Name: Specially Shaped Card Die Cutter 3 Tag 2 Tag Abnormal Shape Punching Card Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YL-3TP
Availability: InStock

Detail Information

Card Material Size:	CR80 Standard Size, 54×85.6, Thickness 0.25-0.9mm	Speed:	3500-5000 Cards/hr
Control Mode:	PLC Programming+ Servo System	Air Supply:	6 Atm, 40L/min
Dimension:	L1310×W650×H1650mm	Power Supply:	AC380V 50Hz 3-phase 5-line
Highlight:	Card Die Cutter 3 Tag , Card Die Cutter 2 Tag , Abnormal Punching Card Machine

Product Description

Specially Shaped Card Die Cutter 3 Tag 2 Tag Abnormal Shape Punching Card Machine

Product Specifications

Attribute	Value
Card Material size	CR80 standard size, 54×85.6, thickness 0.25-0.9mm
Speed	3500-5000 cards/hr
Control mode	PLC programming + servo system
Air supply	6 atm, 40L/min
Dimension	L1310×W650×H1650mm
Power supply	AC380V 50Hz 3-phase 5-line

Product Overview

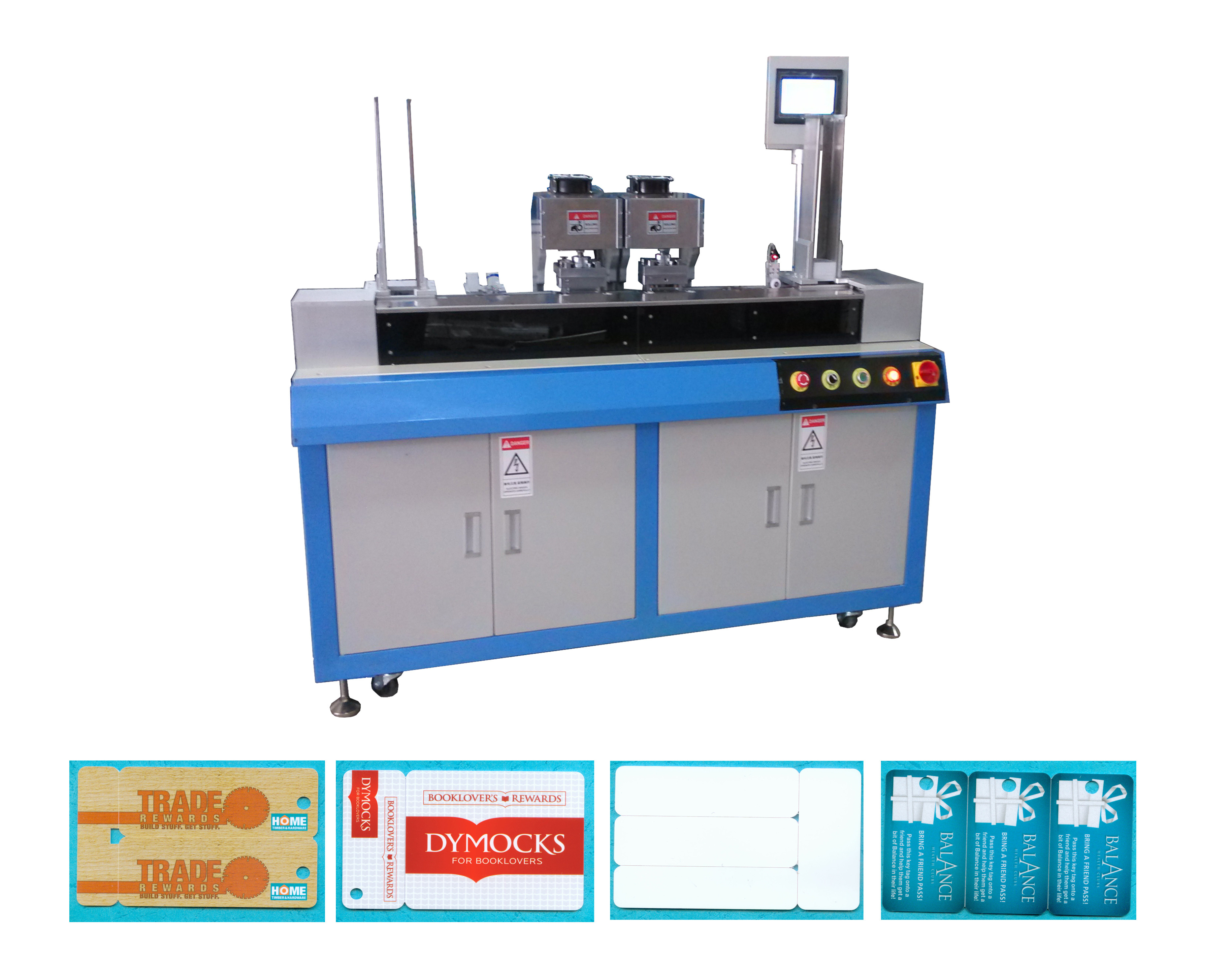

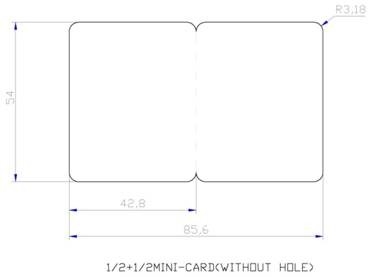

The YL-3TP Specially Shaped Card Die Cutter is designed for precision punching of standard CR80 plastic cards into various configurations including 3-tag (1/3+1/3+1/3), 2-tag (1/2+1/2 or 1/3+2/3), and custom abnormal shape tag cards. This versatile machine accommodates different punching and stamping molds for flexible production requirements.

Key Features

PLC control with intuitive touch screen operation

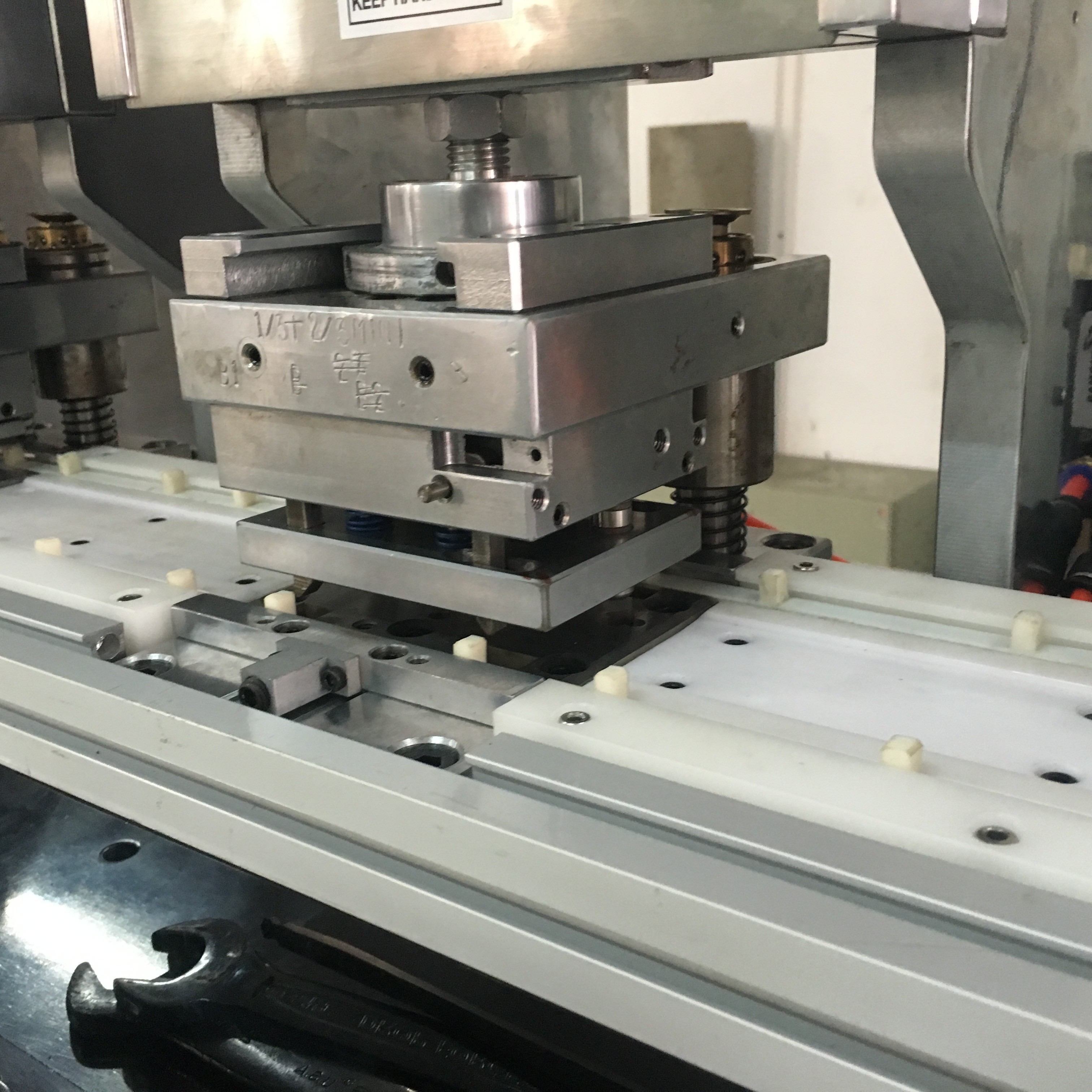

Powerful servo motor system ensures precise punching and stamping
High-quality punch mold steel construction for durability
Rapid production capability of 3500-5000 cards per hour
Compatible with various materials including PVC, ABS, PET, PETG, and paper cards
±0.10mm punching precision for consistent quality

Technical Parameters

Parameter	Specification
Card Material	CR80 standard size (54×85.6mm), thickness 0.25-0.9mm
Air Supply	6 kg/cm² (dry), 40L/min consumption
Power Requirements	AC380V 50Hz 3-phase 5-line, 4.0kW
Dimensions	L1310×W650×H1650mm
Weight	Approximately 450kg
Production Rate	3500-5000 cards/hour

Packaging & Service

Standard export packaging includes PE film protection inside and plywood case outside.

Pre-Sale Service:

Professional consultation, machine selection guidance, factory visit arrangements, and detailed product information.

Sales Service:

Production scheduling updates, quality supervision, product acceptance, and timely shipping.

After-Sale Service:

Installation guidance, operator training, technical support, and regular follow-up. Includes one-year guarantee with efficient response to any technical issues.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YL-3TP

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T,Western Union,MoneyGram,Western Union
Supply Ability:	5 sets per quater
