Name: Sequential Number Plastic PVC Card Punching Machine 3x8 Punching Full Auto Card Die Cutter
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-SN
Availability: InStock

Detail Information

Material:	Various Plastic Sheets Including PVC, ABS, PETG, Etc	Productivity:	9000~12000 Pcs /hr
Control Mode:	PLC Programming+ Servo System	Precision:	±0.10mm
Material Size:	3X8, 4X8 Or 5X8 Etc	Air Consumption:	70L/min
Highlight:	Plastic PVC Card Punching Machine , PVC Card Punching Machine 3x8

Product Description

Sequential Number Plastic PVC Card Punching Machine 3x8 Punching Full Auto Card Die Cutter

Product Overview

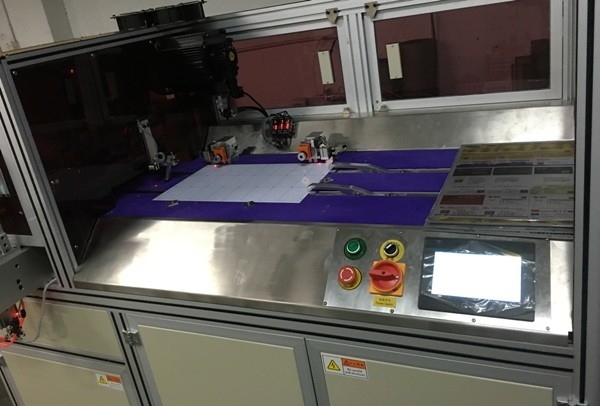

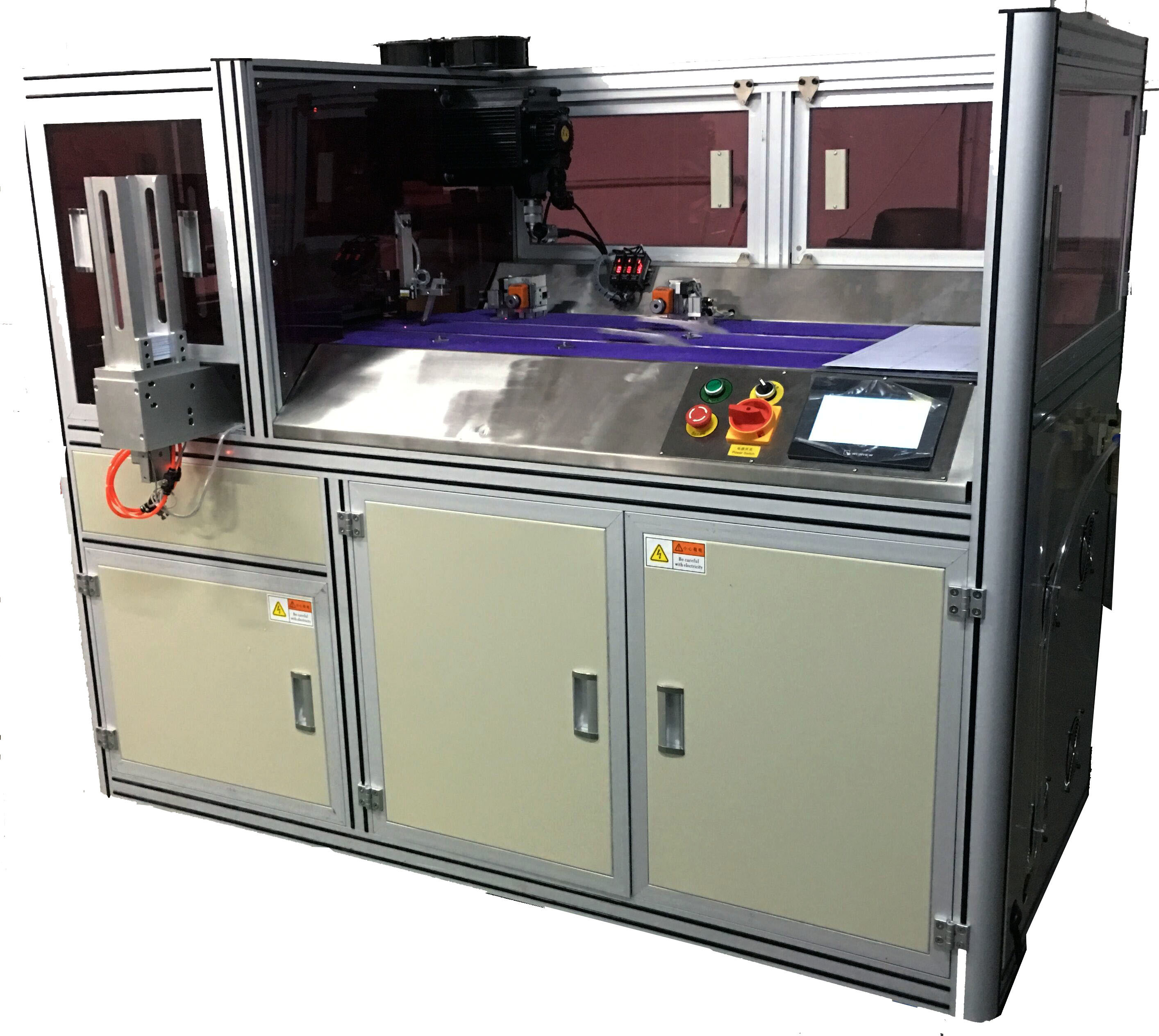

The Sequential Number Card Puncher YLP-SN is designed for precision cutting of printed plastic sheets (3×8, 4×8 or 5×8 layouts) into standard CR80 cards with sequential numbering capability. Featuring a powerful servo motor system and professional card collection mechanism.

Key Features

High-precision optical fiber sensor with imported servo feeding system
Durable servo motor system for reliable operation with low noise
PLC control system for automatic punching after manual sheet loading
Adjustable punching space position via touch screen interface
Professional card collecting structure for organized output

Technical Specifications

Attribute	Value
Material Compatibility	PVC, ABS, PETG, paper card, and mixed materials
Productivity	9000~12000 pcs/hr
Control System	PLC programming + servo system
Precision	±0.10mm
Material Size	3×8, 4×8 or 5×8 layouts
Power Supply	AC380V 50Hz 3-phase 5-line
Total Power	3.5KW
Air Consumption	70L/min
Dimensions	L1700×W830×H1520mm
Weight	Approx. 800 kg

Additional Specifications

Parameter	Value	Parameter	Value
Power Supply	AC 380V/50 HZ	Applicable Layout	2×5, 3×8, 4×8 or 5×5 layouts
Power	3.5KW	Control Mode	PLC program control + servo system
Air Source	6 kg/cm² (dry)	Operator Number	1 person
Punching Precision	±0.10mm	Punched Card Standard	ISO CR-80-ISO7810

Packaging & Service

Packaging: PE film inner protection with standard export plywood case.

Comprehensive Service Package

Pre-sale: Professional consultation, machine selection assistance, factory visits
Sale: Quality supervision, product acceptance, timely shipping
After-sale: Installation guidance, operator training, lifetime technical support

Warranty

1-year guarantee period with efficient service response. On-site support available for unsolvable technical issues within warranty period.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-SN

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram, Western Union
Supply Ability:	5 sets per quater
