Name: Plastic PVC CR80 Cards Die Cutting And Sorting Machine Full Automatic YLPS-1
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLPS-1
Availability: InStock

Detail Information

Max. Speed:	8000-16000 Cards Per Hour	Applicable PVC Sheet Layout:	3×8, 4×8, 5×5 Etc
Applicable Material:	PVC, ABS, PETG And Paper	Weight:	About 1500Kg
Power Supply:	AC380V 50/60HZ	General Power:	3.5 KW
Highlight:	Cards Die Cutting And Sorting Machine , PVC plastic card cutter machine , plastic card cutter machine Automatic

Product Description

Plastic PVC CR80 Cards Die Cutting And Sorting Machine Full Automatic YLPS-1

Product Specifications

Attribute	Value
Max. Speed	8000-16000 cards per hour
Applicable PVC sheet layout	3×8, 4×8, 5×5 etc
Applicable material	PVC, ABS, PETG and paper
Weight	About 1500Kg
Power supply	AC380V 50/60HZ
General power	3.5 KW

Product Overview

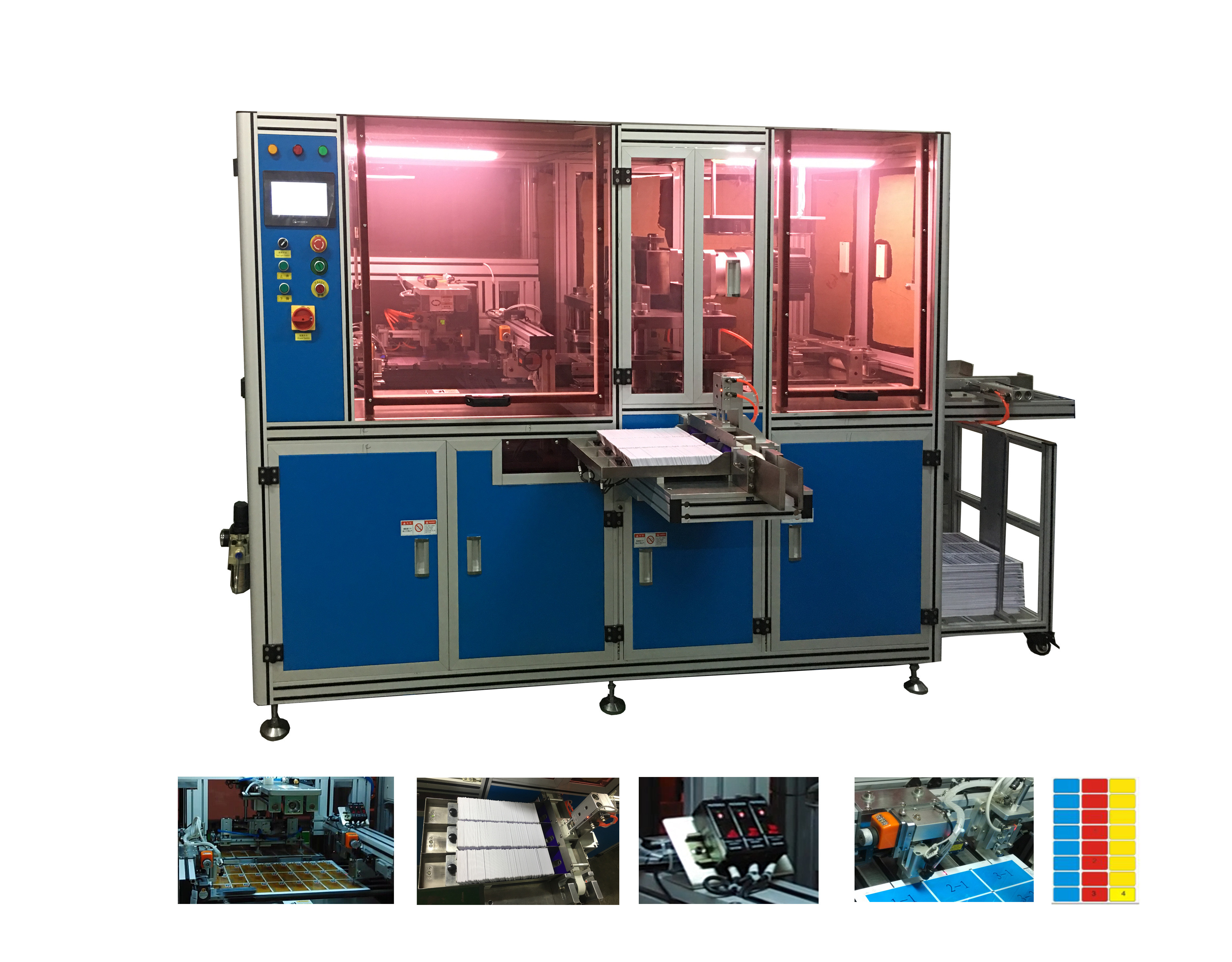

The Full Automatic PVC CR80 Cards Die Cutting and Sorting Machine YLPS-1 is designed for precision punching of laminated plastic sheets into ISO CR80 cards with high-speed operation and intelligent sorting capabilities.

Key Features

High-precision punching with electrical eye positioning to prevent sheet deviation
Smart card sorting system with customizable collection settings via touch screen
Powerful hydraulic system with adjustable pressure and speed for different card thicknesses
High-quality mold steel construction for perfect punching results and extended service life
Reliable automatic card sorting with multiple channel options
PLC program control with bilingual (Chinese/English) touch screen interface

Technical Parameters

Power Supply	AC 380V/50 HZ
Total Power	3.5KW
Control Mode	PLC program control + servo system
Max. Speed	8000-16000 cards/hour
Punching Precision	±0.10mm
Applicable Materials	PVC, ABS, PET, PETG, paperboard, and mixed materials
Dimensions	3420×850×1520mm
Weight	1500 kg
Product Percent of Pass	99.8%

Machine Characteristics

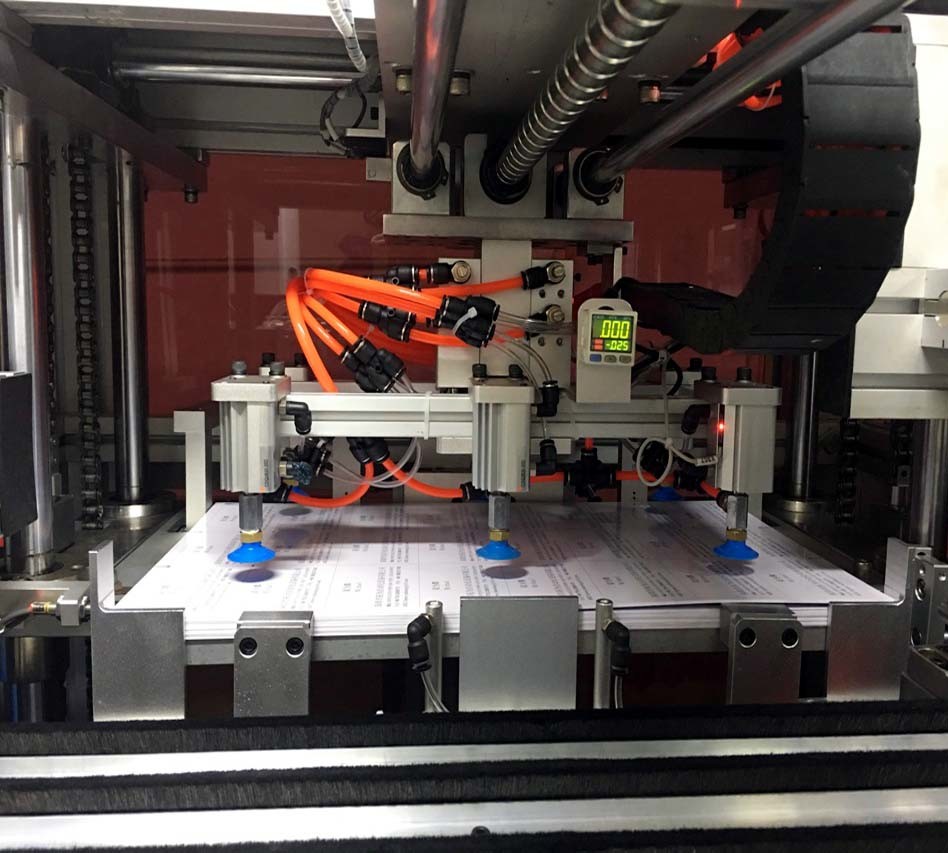

The YLPS-1 integrates automatic sheet feeding, punching, card output and waste collection functions. Equipped with multiple punching heads, it can process several cards simultaneously and features a code scanning function to record material data during operation.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLPS-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	around 30-40days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	5 sets per quater
