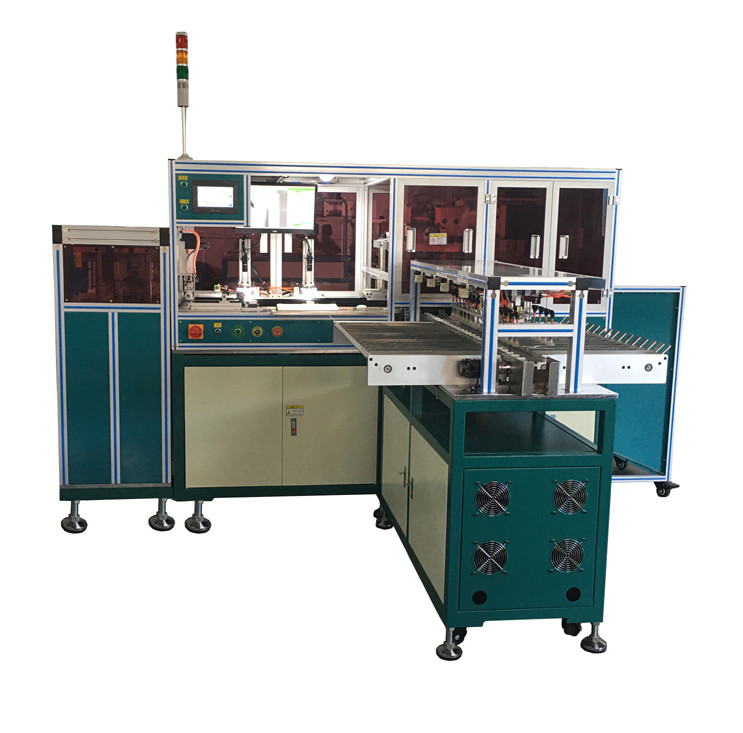

Name: PLC Control Plastic Card Puncher And Sorter Machine With CCD Camera Positioning
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-FAS-1000
Availability: InStock

Detail Information

Applicable Layout:	5X5, 4X8, 6X8, 8X8......	Speed:	800~1000 Big Sheets/ Hour
Power:	10.5KW	Punching Precision:	±0.10mm
Air Consumption:	About 150L/min	Card Numbers In The Card Slot:	About 400pcs Cards
Highlight:	plastic card puncher and sorter , plc control card puncher machine

Product Description

PLC Control Plastic Card Puncher And Sorter Machine With CCD Camera Positioning

Product Specifications

Attribute	Value
Applicable Layout	5X5, 4X8, 6X8, 8X8...
Speed	800~1000 big sheets/hour
Power	10.5KW
Punching precision	±0.10mm
Air consumption	About 150L/min
Card numbers in the card slot	About 400pcs cards

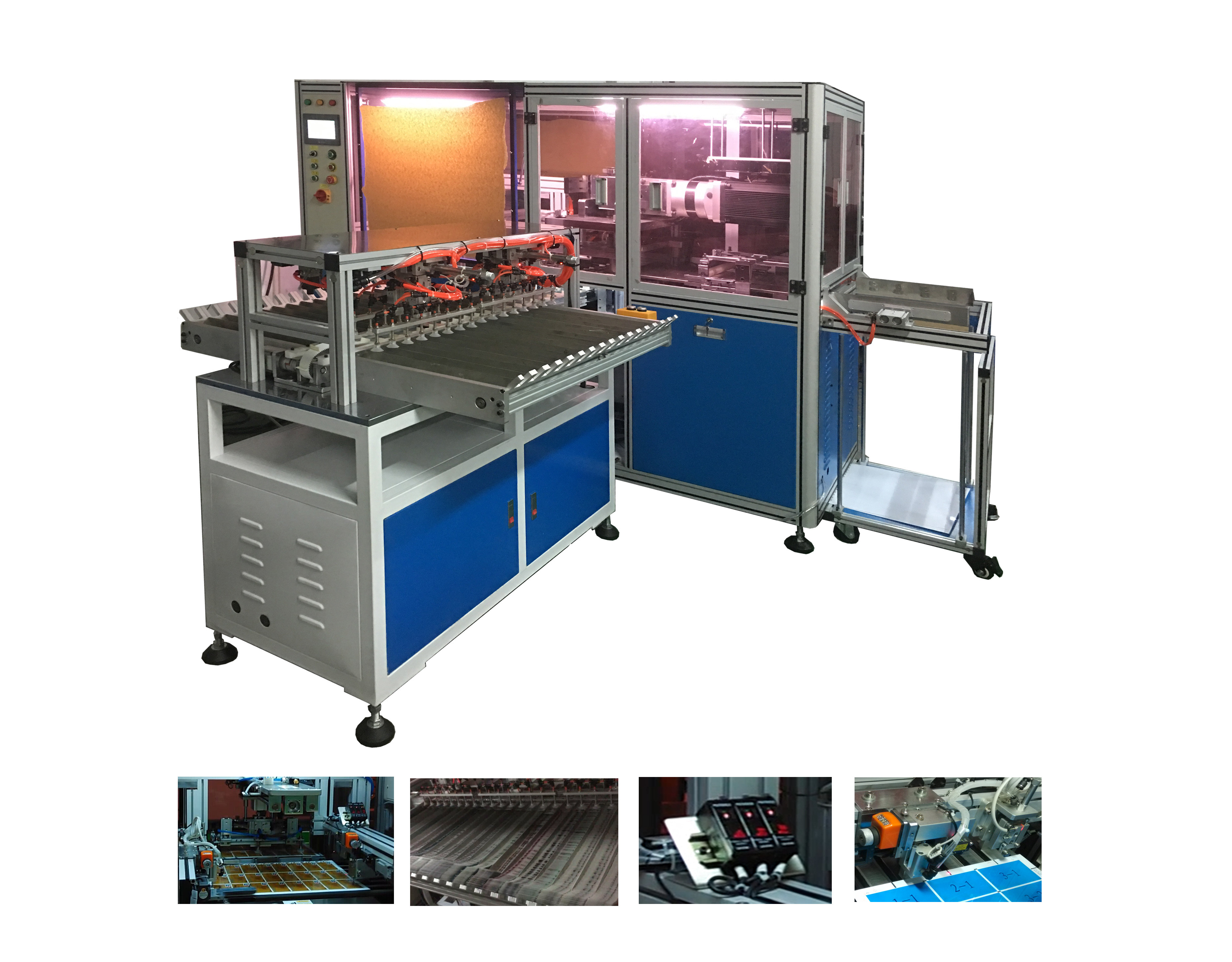

Full Automatic Plastic Card Puncher and Sorter CCD Camera Positioning YLP-FAS-1000

This PLC-controlled machine automatically punches plastic cards with high efficiency and precision. Featuring a CCD camera positioning system, it eliminates sheet position deviation after repeated punching. The fully automated system includes sheet feeding, self-checking, punching, card output, and wastage collection for ISO cards.

Key Features

CCD vision inspection system with UVW correction platform for precise positioning and adjustable parameters
High-power servo motor provides low-noise, high-speed punching with stable, adjustable power

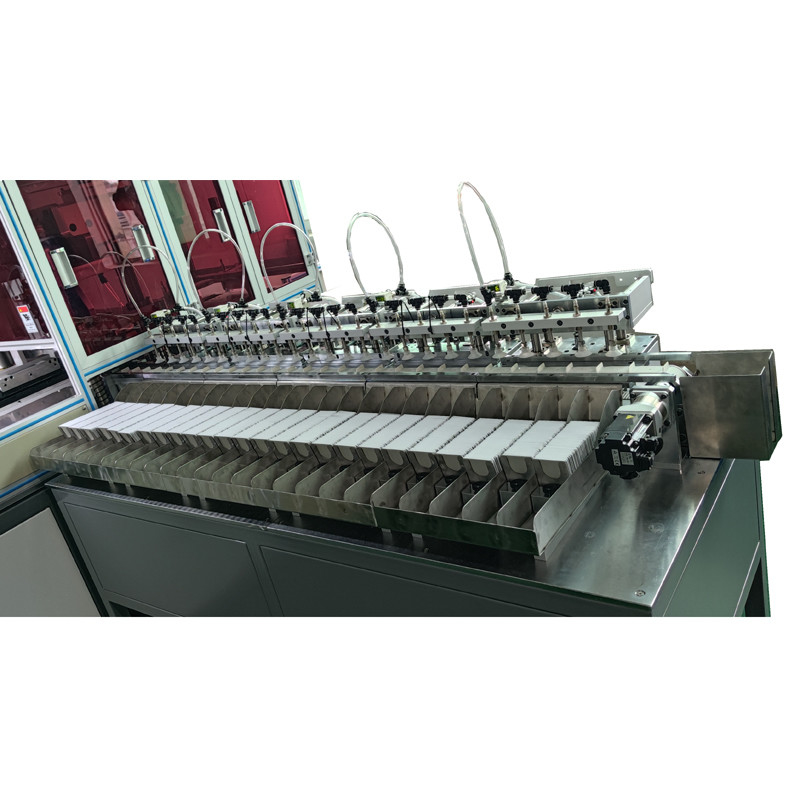

Advanced card sorting structure with adjustable pick-and-place positions ensures reliable operation

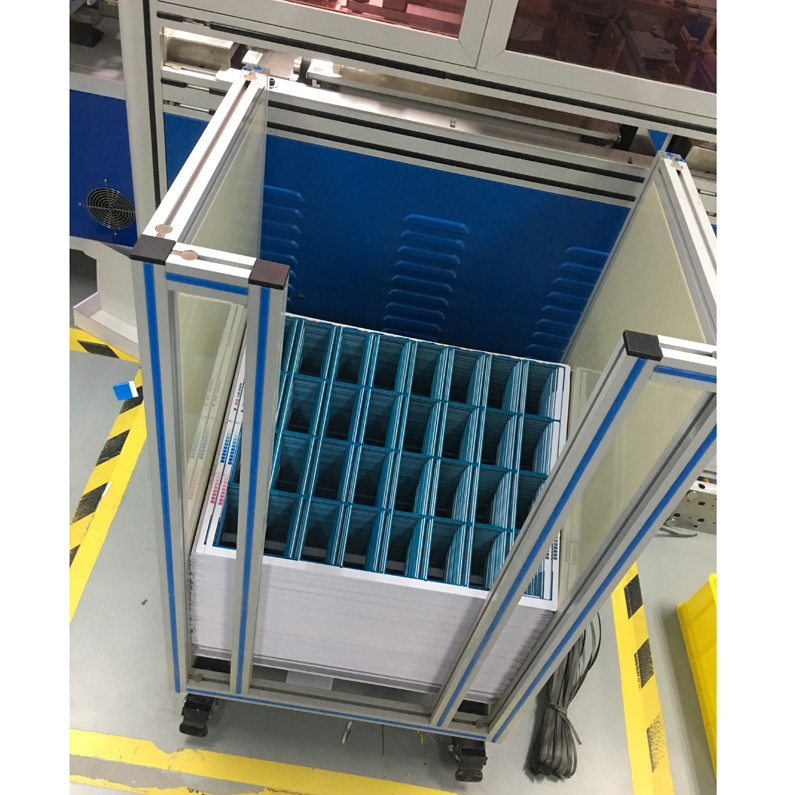

Automatic collection and sorting of punched cards by printed pattern layout
PLC-controlled operation with real-time monitoring and automatic shutdown for abnormal situations

Technical Parameters

Power Supply	AC 380V/50 HZ
Power	10.5KW
Control Mode	PLC program control + servo system
Air Source	6 kg/c㎡ (dry)
Operator	1 person
Dimensions	L2600×W1240×H1750mm
Weight	About 1800Kg
Productivity	800~1000 sheets/hour
Applicable Materials	PVC, ABS, PET, PETG, paperboard, and mixed materials (requires special molds)

Additional Information

Also known as Full Auto Card Die Cutter and Sorter or Full Auto Card Die Cutting and Sorting Machine YLP-FAS-1000. The machine features a 99.8% pass rate and a punching mold lifespan of 2 million operations.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-FAS-1000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	around 30-40days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	5 sets per quater
