Name: Plug In Sim Card Punching Machine Plastic Card Slot Cutter Puncher 5000 - 6000pcs/H
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YSMP-5000
Availability: InStock

Detail Information

Power Supply:	AC 380V 50/60 HZ	Total Power:	5.5 KW
Air Source:	6kg/cm² (dry)	Air Consumption:	Approx. 50L/min
Weight:	Approx 850Kg	Speed:	5000~6000pcs/h
Control Method:	PLC + Servo System	Card Specification:	ISO CR80/IEC7810 54x85.6mm
Dimension:	Approximately L1500xW820xH1750 Mm	Positioning Precision:	±0.020mm
Operator Number:	1
Highlight:	Plastic Card Slot Cutter Puncher , Plug in Card Punching Machine , Card Punching Machine 6000pcs/H

Product Description

Plug In Sim Card Punching Machine Plastic Card Slot Cutter Puncher 5000 - 6000pcs/H

Product Specifications

Attribute	Value
Power supply	AC 380V 50/60 HZ
Total power	5.5 KW
Air source	6kg/cm² (dry)
Air consumption	Approx. 50L/min
Weight	Approx 850Kg
Speed	5000~6000pcs/h
Control method	PLC + Servo system
Card specification	ISO CR80/IEC7810 54x85.6mm
Dimension	Approximately L1500xW820xH1750 mm
Positioning precision	±0.020mm
Operator number	1

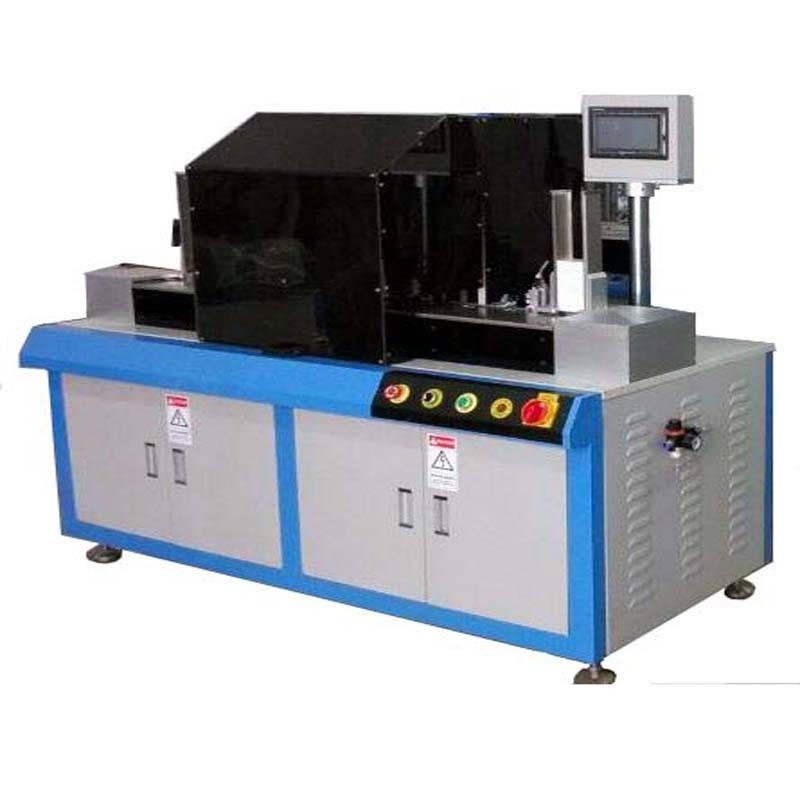

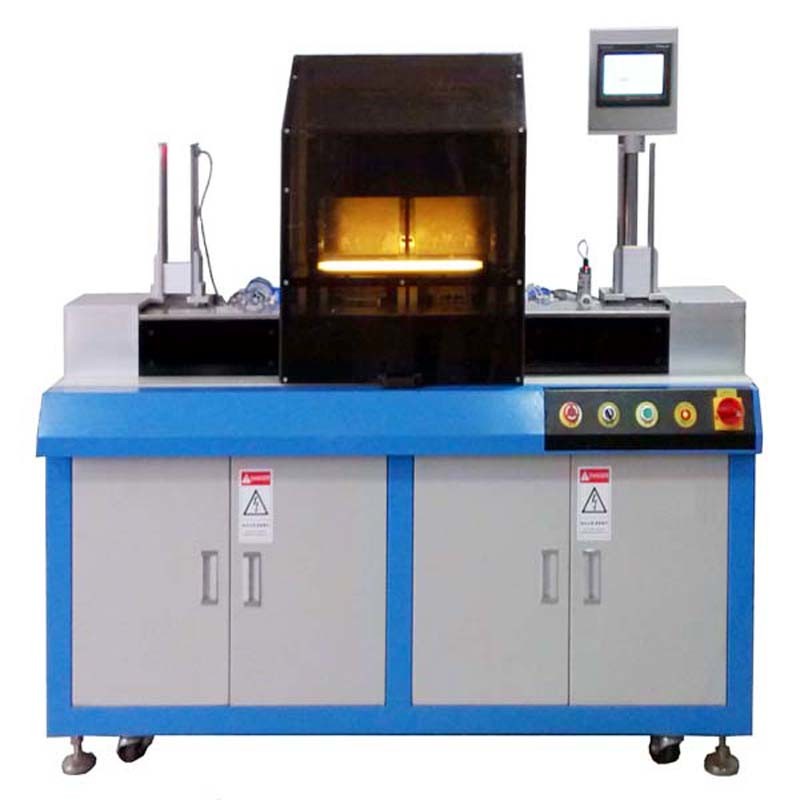

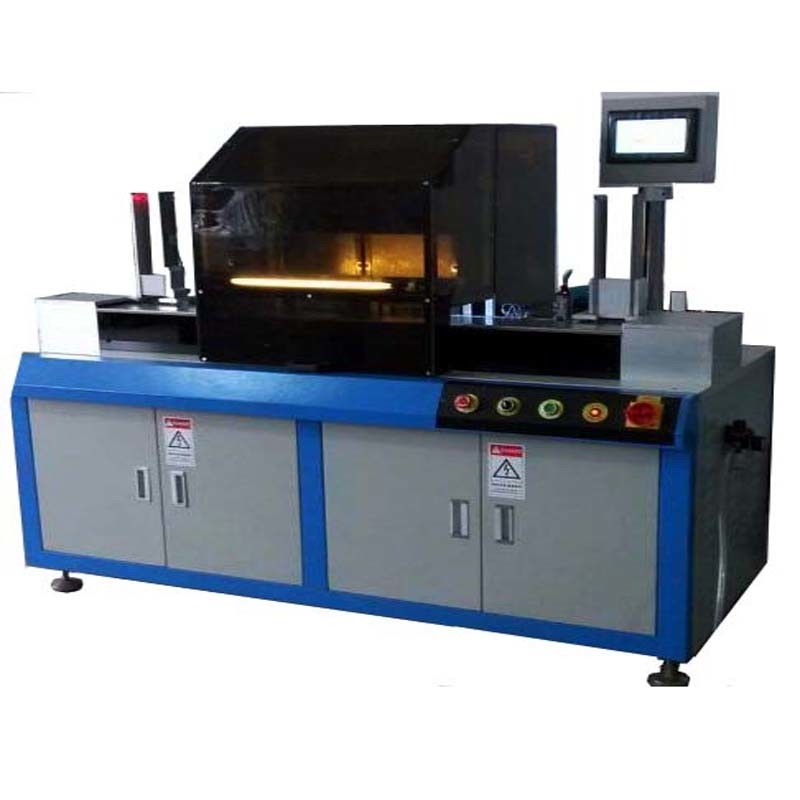

Plug-in Sim Card Punch Machine YSMP-5000

Function and Application

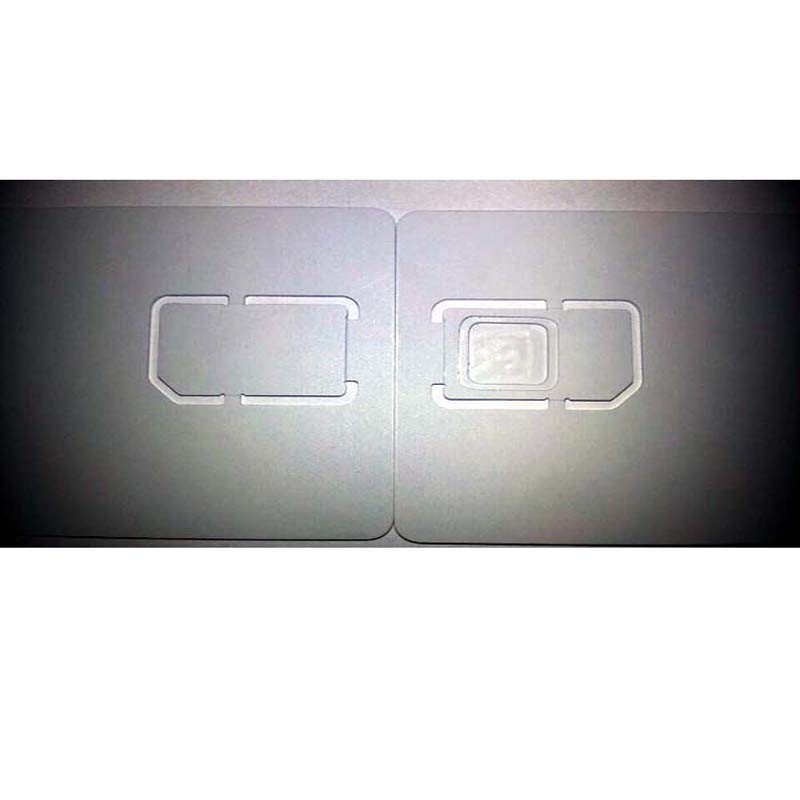

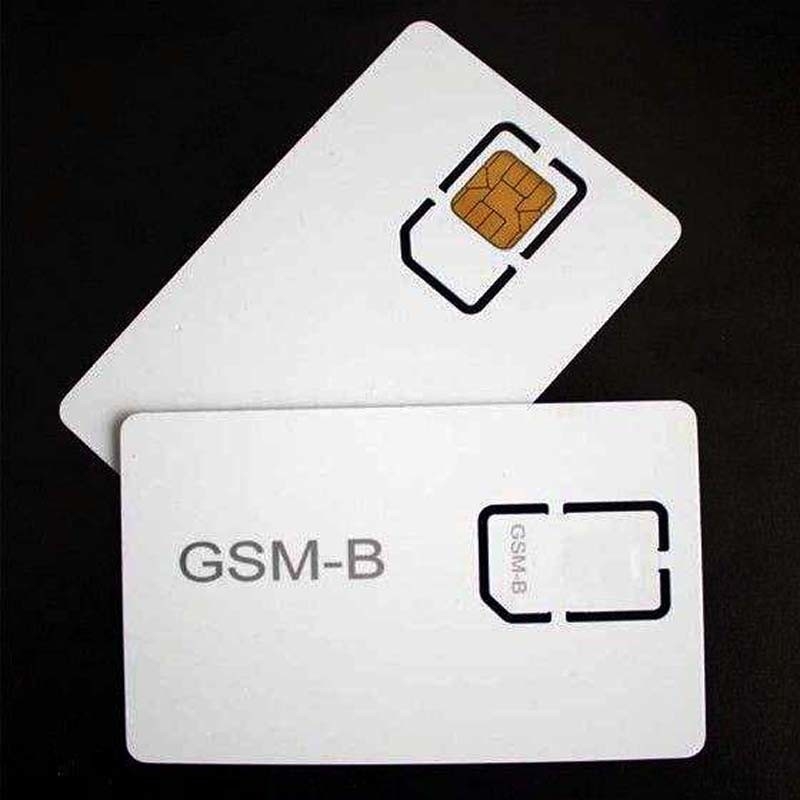

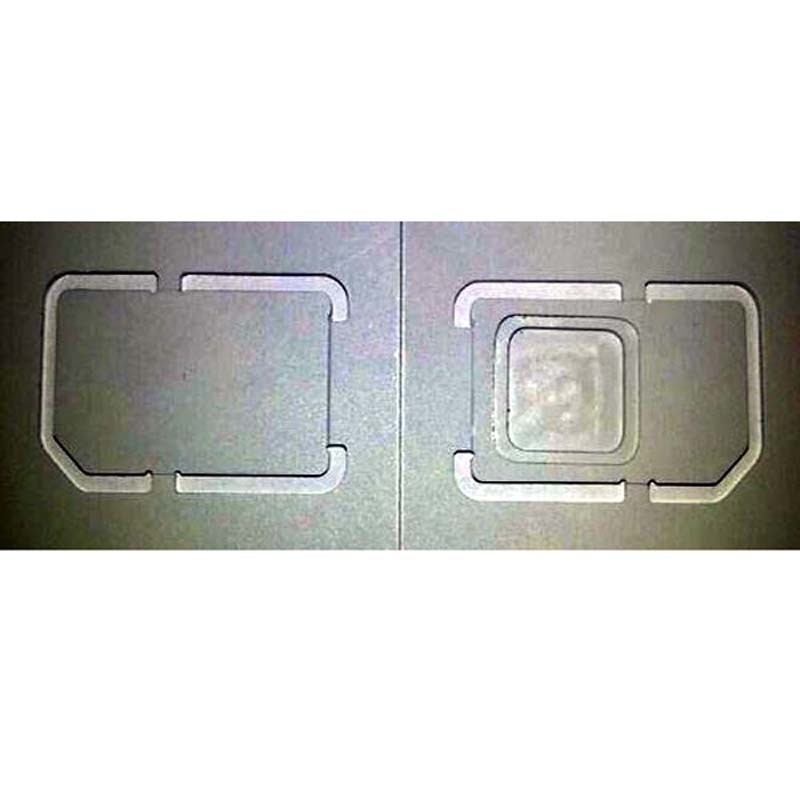

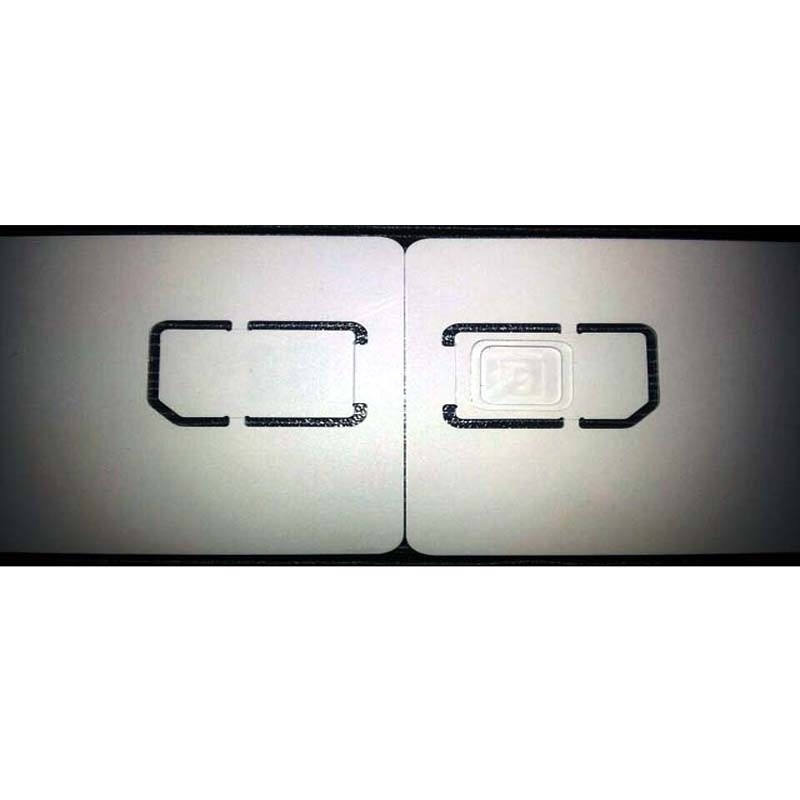

The YSMP-5000 is designed for precise, high-speed punching and indenting of Plug-in SIM cards on standard plastic cards. Featuring dual stations for slot punching and indenting (kiss punch), this PLC-controlled machine offers adjustable parameters, fast operation, and high precision through its servo-driven punching system.

Machine Configuration

Complete processing line: Card feeding magazine → card overlapping detection → slot punch station → indenting station → card collection magazine
Slot punching mold with advanced automatic guiding structure, made from special wear-resistant steel for extended service life
Indenting mold with special design for quality work, featuring easy adjustment and replacement
Optimized mold structure allows for quick mold changes (includes one additional set of molds)
High-power servo motor ensures reliable performance, powerful punch force, and high precision
Special conveyor belts provide stable, fast, and precise card transport without scratching
Includes card direction and overlapping detection for precise positioning before punching

Technical Parameters

Power supply	AC 380V 50/60 HZ	Control method	PLC + Servo system
Power	5.5KW	Card specification	ISO CR80/IEC7810 54x85.6mm
Air Source	6 kg/c㎡(dry)	Dimension	L1500xW820xH1750 mm
Air consumption	Approx. 50L/min	Positioning precision	±0.020mm
Weight	Approx 850Kg	Operator number	1
Speed	5000~6000pcs/h

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSMP-5000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram, Western Union
Supply Ability:	5 sets per quater
