Name: Sequential Sorting Poker Card Punching Machine Semi Automatic YLP-PC-600
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-PC-600
Availability: InStock

Detail Information

Suitable Material:	PVC, ABS, Paperboard For Poker Card	Maximum Layout:	Max 540X780 Mm
Width:	55~110mm	Thickness:	0.25~1.5 Mm
Control Mode:	PLC Program+ Servo System	Output:	400~600 Big Sheets/hour
Highlight:	Card Punching Machine Semi Automatic , Card Punching Machine Semi Auto

Product Description

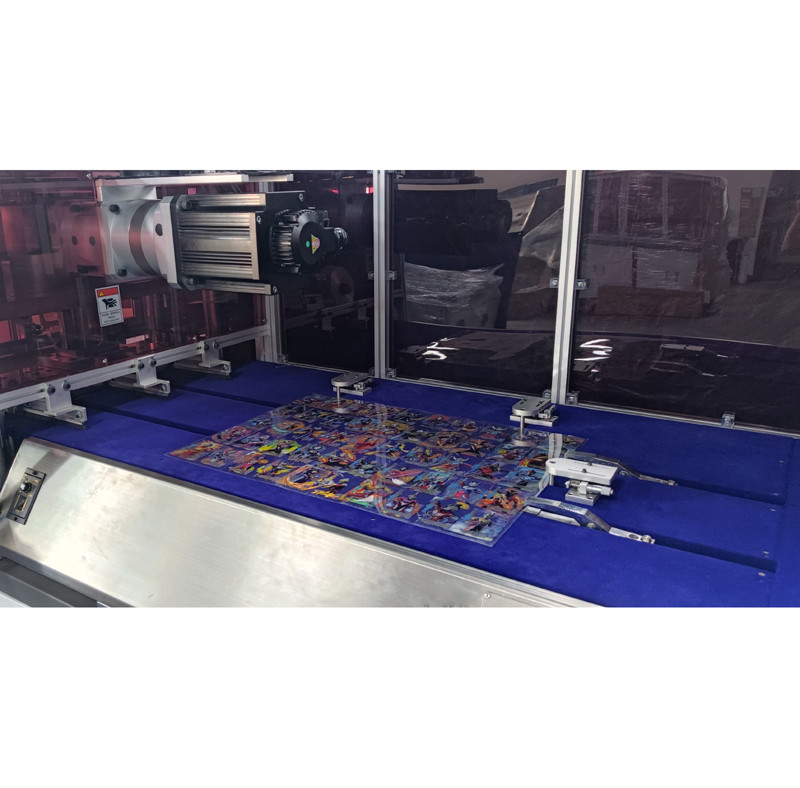

Sequential Sorting Poker Card Punching Machine Semi Automatic YLP-PC-600

Product Specifications

Suitable material: PVC, ABS, paperboard for poker card

Maximum layout: Max 540X780 mm

Width: 55~110mm

Thickness: 0.25~1.5 mm

Control mode: PLC program+ servo system

Output: 400~600 big sheets/hour

Product Overview

The Semi-Automatic Sequential Sorting Poker Card Punching Machine YLP-PC-600 is specially designed for poker playing card punching with exact card sequential sorting capability. Featuring a user-friendly touch screen interface and high-power servo motor for punching power, this machine delivers precision performance with positioning accuracy of less than ±0.10mm.

Key Features

High-precision imported servo-system feeding system with adjustable punching point parameters
Premium imported ball screw guide for step feeding with exceptional precision and durability
High-power servo motor punching system with low noise, stable power, and adjustable speed
Automatic search cursor positioning punching mode ensures maximum punching accuracy
PLC program control enables automatic operation with problem alerts and shutdown solutions

Technical Specifications

Parameter	Value	Parameter	Value
Power supply	AC 380V/50 HZ	Suitable material	PVC, ABS, paperboard
Power	7.5KW	Maximum layout	Max 540X780 mm
Air supply	6 kg/c㎡(no water)	Width	55~110mm
Punch precise	±0.15mm	Thickness	0.25~1.5 mm
Weight	1000Kg	Control mode	PLC program+ servo system
Output	400~600 sheets/hour	Dimension	L2000×W1200×H1650mm

Applications

The professional card collection structure design makes this machine ideal for sequential sorting and collection of playing poker cards and plastic cards with numbered sequences.

Also known as: Semi-automatic Poker Playing Card Puncher, Semi-auto Poker Playing Card Die Cutter, or Poker Playing Card Die Cutting machine.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-PC-600

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Supply Ability:	1 set per 35 days
