Name: Full Auto High Speed Punching And Sorting Collection Poker Playing Card Puncher
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLP-APC-1000
Availability: InStock

Detail Information

Suitable Material:	PVC、ABS、paper (different Molds Matching Different Materials)	Maximum Punched Sheet Size:	889 X 590mm
Card Collection Width Range:	50~70 Mm	Punched Sheet Thickness Range:	0.25~1.5 Mm
Output:	800~1000 Big Sheets /hour	Dimensions:	Around L4000×W1200×H1750mm
Highlight:	Full Auto Playing Card Puncher , High Speed Playing Card Puncher

Product Description

Full Auto High Speed Punching And Sorting Collection Poker Playing Card Puncher

Product Specifications

Suitable material	PVC, ABS, paper (different molds matching different materials)
Maximum punched sheet size	889 × 590mm
Card collection width range	50~70 mm
Punched sheet thickness range	0.25~1.5 mm
Output	800~1000 big sheets/hour
Dimensions	Approx. L4000×W1200×H1750mm

Model YLP-APC-1000 Overview

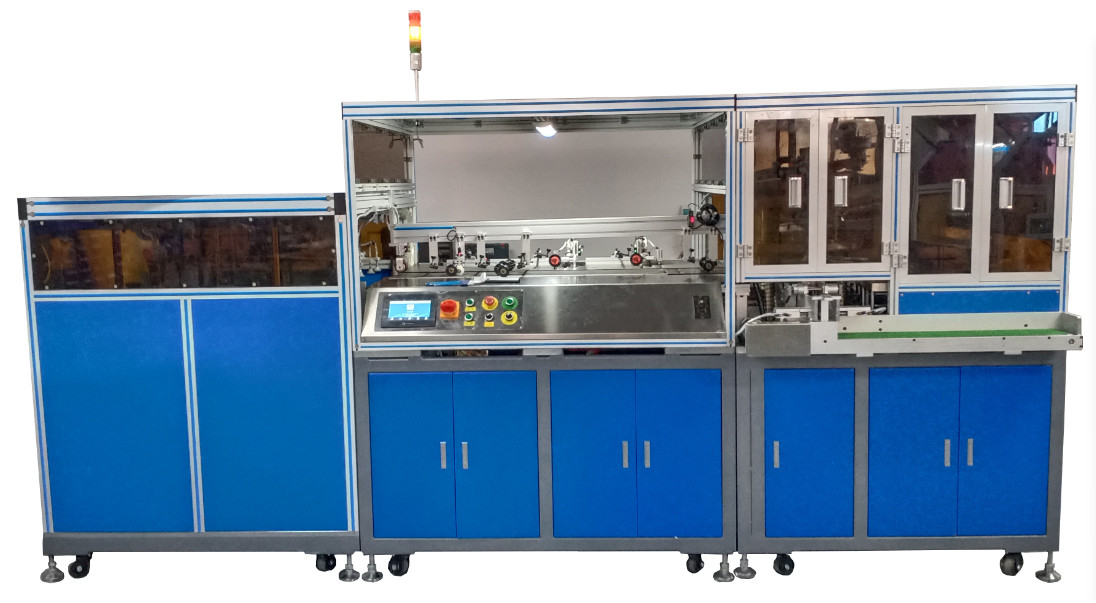

This industrial-grade poker card punching machine is designed for automatic high-speed punching and sorting collection of playing cards. Featuring larger sheet capacity (maximum size 889 × 590 mm) and faster punching speeds than comparable models.

Key Features

High-sensitivity photoelectric sensors with imported servo system for precise punching point adjustment
Integrated functions: automatic sheet suction/feeding, precise conveying/punching, waste discharge, and card collection
High-power servo motor provides stable, low-noise operation with adjustable punching speed
Dual operation modes: automatic search cursor positioning and side positioning punching
PLC program control with automatic operation, problem alerts, and shutdown with solution display

Technical Parameters

Power supply	AC 380V/50 HZ
Power	10.5KW
Air supply	6 kg/cm² (dry air required)
Operation	1 person
Punching precision	±0.10mm
Counterpoint mode	Side positioning or cursor line alignment
Control system	PLC program + servo system
Machine weight	Approx. 2000Kg

Applications

Also known as: Full Automatic Poker Card Punching Machine, Full Auto Poker Playing Card Puncher, Poker Playing Card Die Cutter, or Poker Card Die Cutting Machine.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLP-APC-1000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	1 set per 35 days
