Name: PLC Control Contact Card Production Line Manual IC Card Slotter Air Consumption 30 L/Min
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YIM-1
Availability: InStock

PLC Control Contact Card Production Line Manual IC Card Slotter Air Consumption 30 L/Min

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YIM-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard Export Wooden Box
Delivery Time:	10-15days after receiving the prepayment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5 sets per month

Get Best Price

Chat Now

Detail Information

Output:	Around 800-1000 Units Per Hour	Air-press:	5-6kg/cm2, 10 / Min
Control Model:	PLC Control	Gerneral Power:	About 1.5kw
Equipment Weight:	Around 180kgs	Operator:	1 Person
Highlight:	Manual IC Card Slotter , PLC Control Contact Card Production Line , Contact Card Production Line 30 L/Min

Product Description

PLC Control Contact Card Production Line Manual IC Card Slotter

Key Specifications

Attribute	Value
Output	800-1000 units per hour
Air Pressure	5-6kg/cm², 10L/min
Control Model	PLC control
Power	1.5kW
Weight	180kg
Operator	1 Person

Product Overview

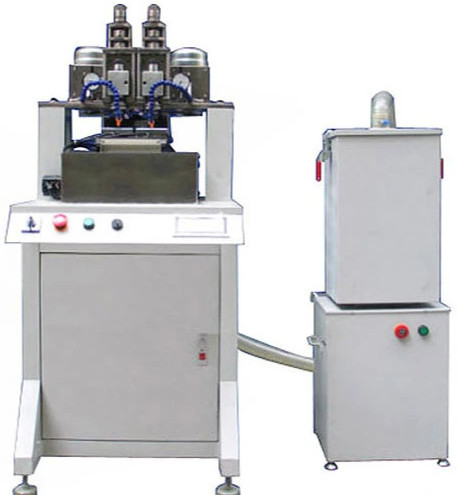

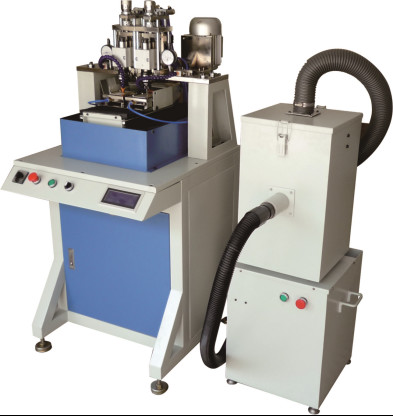

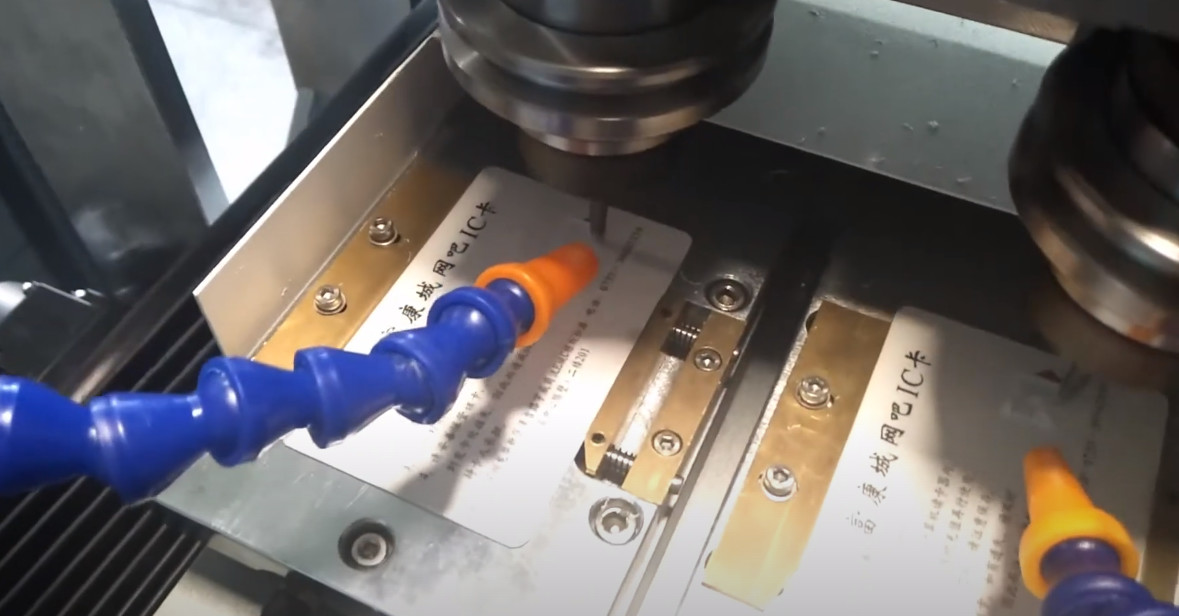

The Manual IC Card Slot Milling Machine YIM-1 is designed for precision milling of slots or cavities for contact IC chip fixing on IC card surfaces, with a production capacity of 800-1000 units per hour.

Key Features

Mitsubishi dual-axis positioning module with touch screen control for reliable operation
High-quality SMC pneumatic components for durability
Easy parameter adjustment via touch screen interface
Precision milling for ISO7816 standardized IC cards

Technical Parameters

Speed	800-1000 units/hour
Compressed Air	6 kg/cm²
Air Consumption	30 L/min
Power Supply	AC220V 50/60Hz
Dimensions	600×550×1200mm (L×W×H)

Applications

This machine is also known as:

Manual IC Card Milling Machine
IC Card Slot Milling Machine
Contact IC Card Slotter YIM-1
Smart Card Production Machine

Our Comprehensive Service

Pre-Sale:

Professional consultation and feasibility analysis
Equipment selection guidance
Factory visit arrangements

During Sale:

Production scheduling updates
Quality supervision
Timely shipping

After-Sale:

On-site installation support
Operator training
Lifetime technical support

Warranty & Support

1-year comprehensive warranty
24/7 technical support
On-site service available for complex issues
Regular follow-ups and feedback collection
