Name: ATR System IC Card Embedding Machine Automatic Smart Card Implanting Machine YIE-4000
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YIE-4000
Availability: InStock

Detail Information

Power Supply:	AC 220V 50/60 HZ	Total Power:	2.5 KW
Air Source:	6kg/cm² (dry)	Air Consumption:	Approx. 80L/min
Weight:	Approx 700Kg	Speed:	3500~4000pcs/h
Control Method:	PLC + Servo System	Card Specification:	ISO CR80/IEC7810 54x85.6mm
Dimension:	L1750xW850xH1750 Mm	Temperature Control Range:	0~400℃（can Be Set）
Operator Number:	1
Highlight:	IC Card Embedding Machine Automatic , ATR IC Card Embedding Machine , Smart Card Implanting Machine

Product Description

ATR System IC Card Embedding Machine, Smart Card Implanting Machine YIE-4000

Product Specifications

Attribute	Value
Power supply	AC 220V 50/60 HZ
Total power	2.5 KW
Air source	6kg/cm² (dry)
Air consumption	Approx. 80L/min
Weight	Approx 700Kg
Speed	3500~4000pcs/h
Control method	PLC + Servo system
Card specification	ISO CR80/IEC7810 54x85.6mm
Dimension	L1750xW850xH1750 mm
Temperature control range	0~400℃ (can be set)
Operator number	1

Product Overview

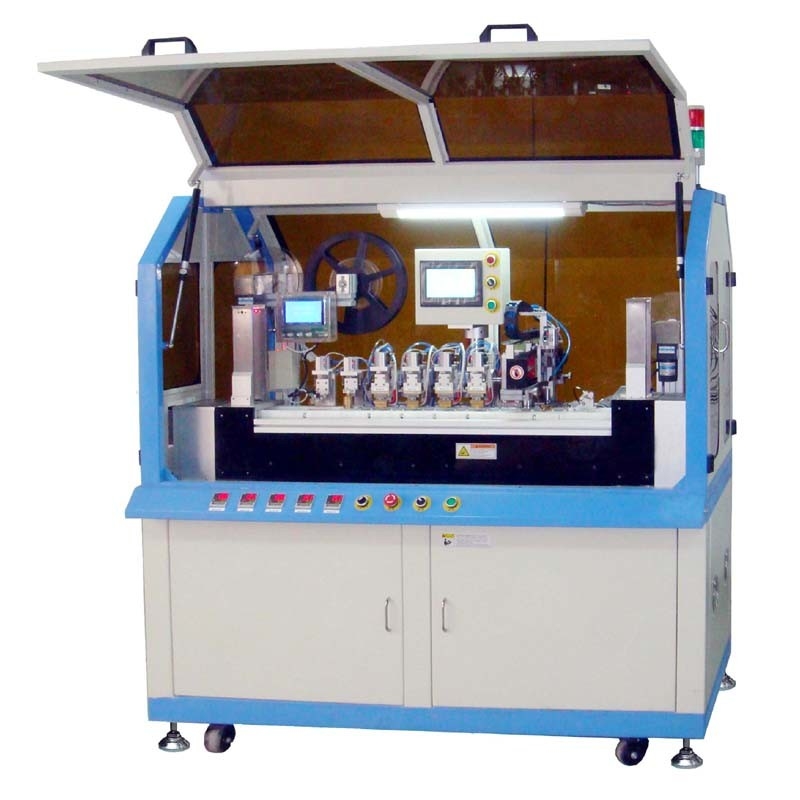

The Automatic IC Card Embedding Machine YIE-4000 is designed for precisely embedding punched IC chips into milled slots or cavities of PVC cards with high speed and accuracy. Also known as an IC card production machine, IC chip implanter, or smart card production machine, it features advanced PLC control for stable performance and easy parameter adjustment.

Key Features

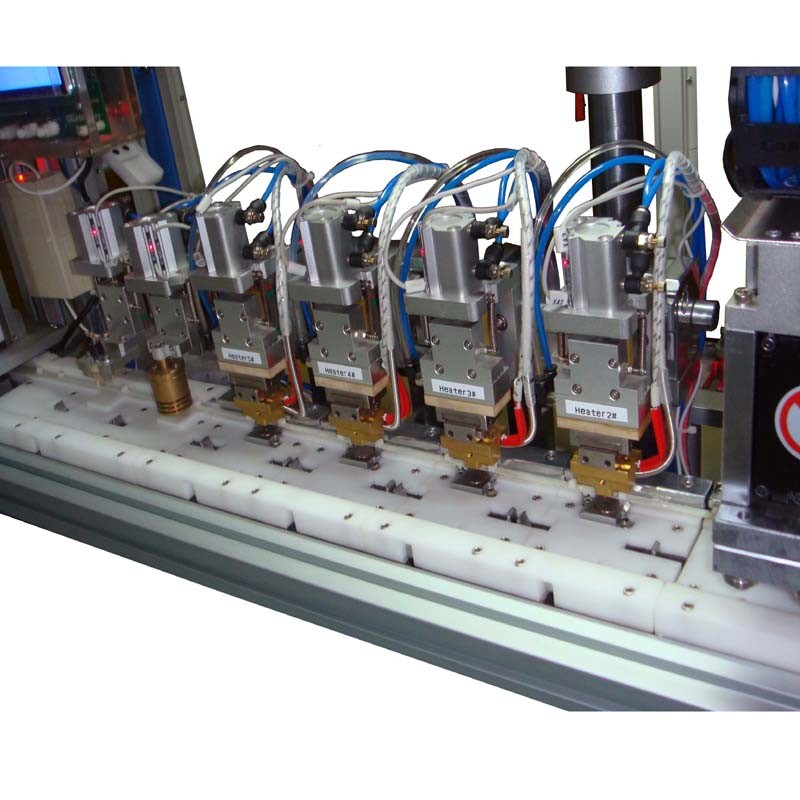

Includes 4 heating heads, 1 cooling head, and 1 ATR checking unit
PLC-controlled system ensures stable performance and easy parameter setting

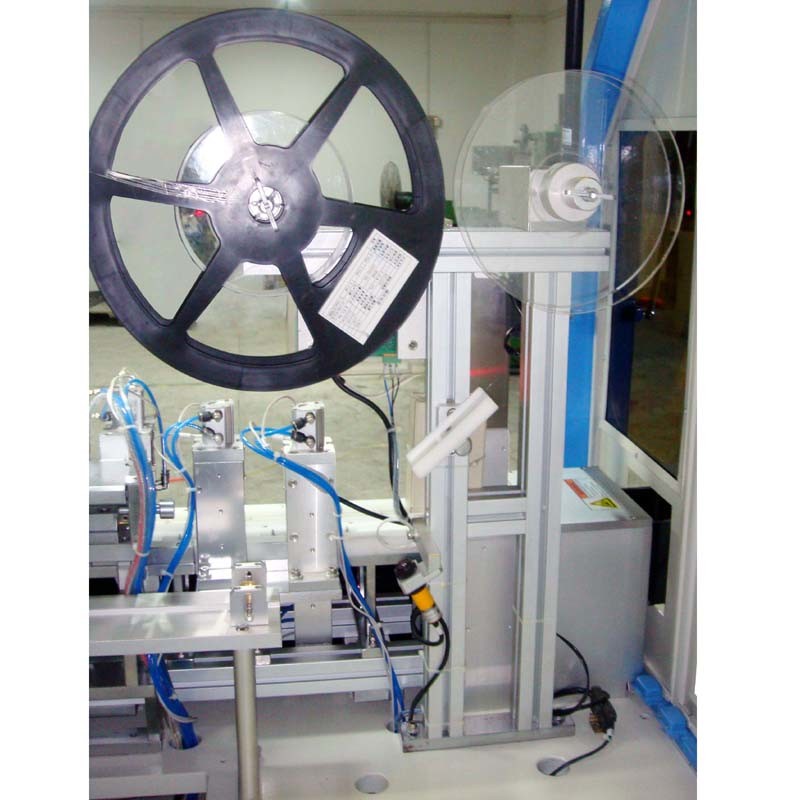

Special servo motor stepping system for precise chip tape conveyance and punching
Adjustable temperature and pressure at heating station
Automatic monitoring and control of IC module stepping via sensor system
Automatic bad chip removal before embedding

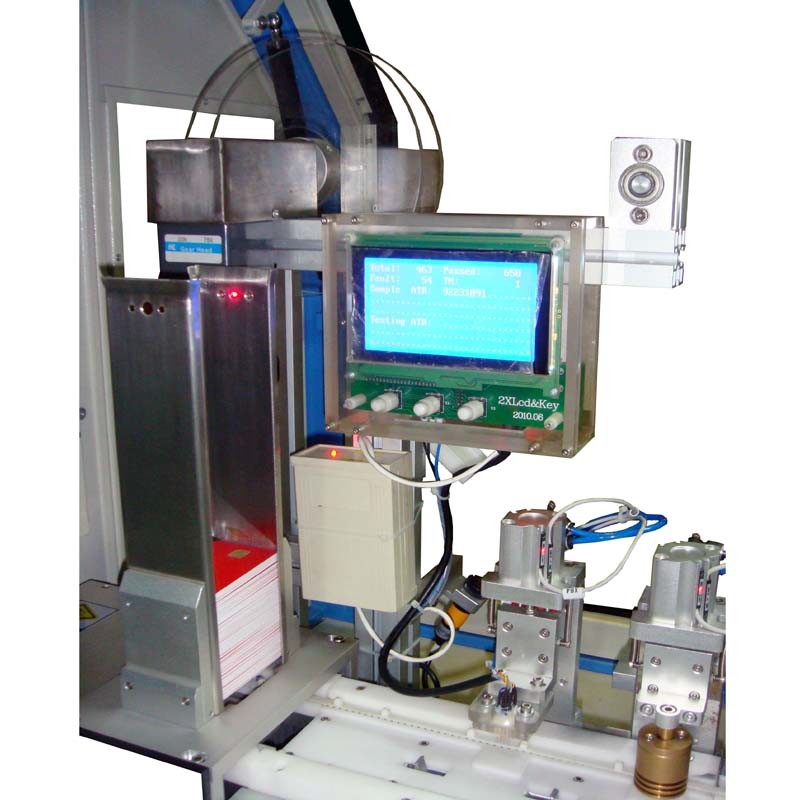

Unique ATR system checks chip embedding performance and rejects defective cards
Error alert system with automatic machine stop function

System Configuration

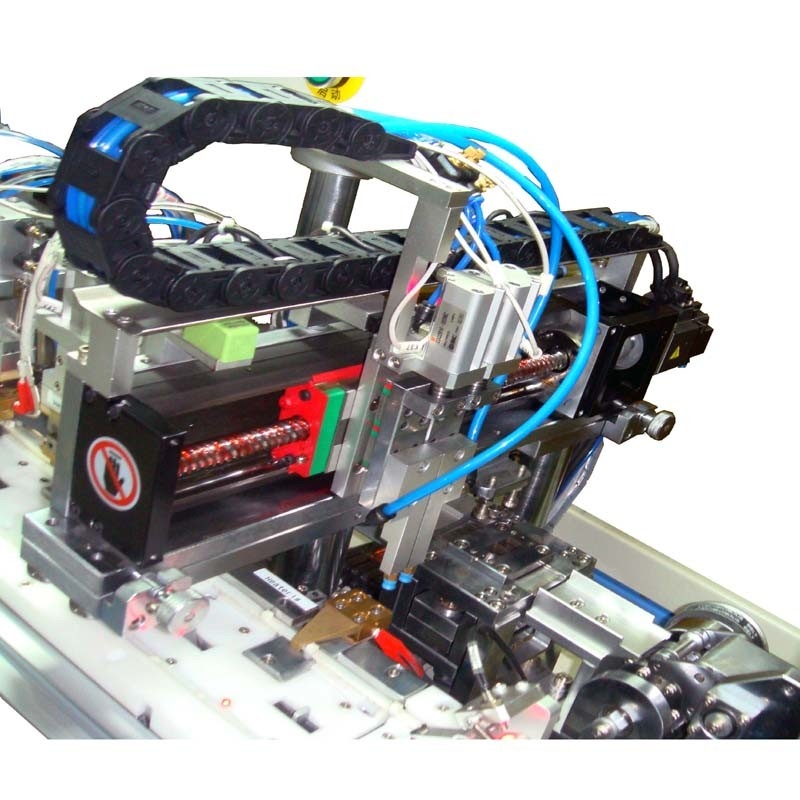

Complete system includes: card feeding magazines (two), chip tape convey-punch station, chip pick-place station, heating heads (four), cooling head (one), ATR checking station, card collection magazines (two), and bad card collection unit.
