Name: All In One Contact IC Card Slot Milling And Embedding Machine PLC Servo system
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YIME-1
Availability: InStock

Detail Information

Dimension:	L2200×W850×H1850 Mm	Weight:	Around 900 KG
Power Supply:	AC 380V 3 Phases 50/60HZ	General Power:	6.5 KW
Compressed Air:	150 L/min 6 Kgs /cm2	Control Mode:	PLC + Servo System
Slot Milling Precision:	X/Y=±0.015 Mm, Z=±0.010mm	Chip Embedding Precision:	±0.02mm
Processed Card Size:	ISO CR80/IEC7810 Cards 54×85.6mm	Speed:	2000～2500 Chips/hour
Temperature Range:	0-400℃
Highlight:	Contact Card Milling And Embedding Machine , PLC Card Slot Machine , All In One Card Slot Machine

Product Description

All-in-one IC Card Milling and Embedding Machine

Contact IC Card Slot Milling and Chip Embedding Machine

Product Specifications

Attribute	Value
Dimension	L2200×W850×H1850 mm
Weight	Around 900 KG
Power supply	AC 380V 3 phases 50/60HZ
General Power	6.5 KW
Compressed Air	150 L/min 6 kgs /cm2
Control Mode	PLC + Servo system
Slot Milling Precision	X/Y=±0.015 mm, Z=±0.010mm
Chip Embedding precision	±0.02mm
Processed Card size	ISO CR80/IEC7810 cards 54×85.6mm
Speed	2000～2500 chips/hour
Temperature range	0-400℃

Product Overview

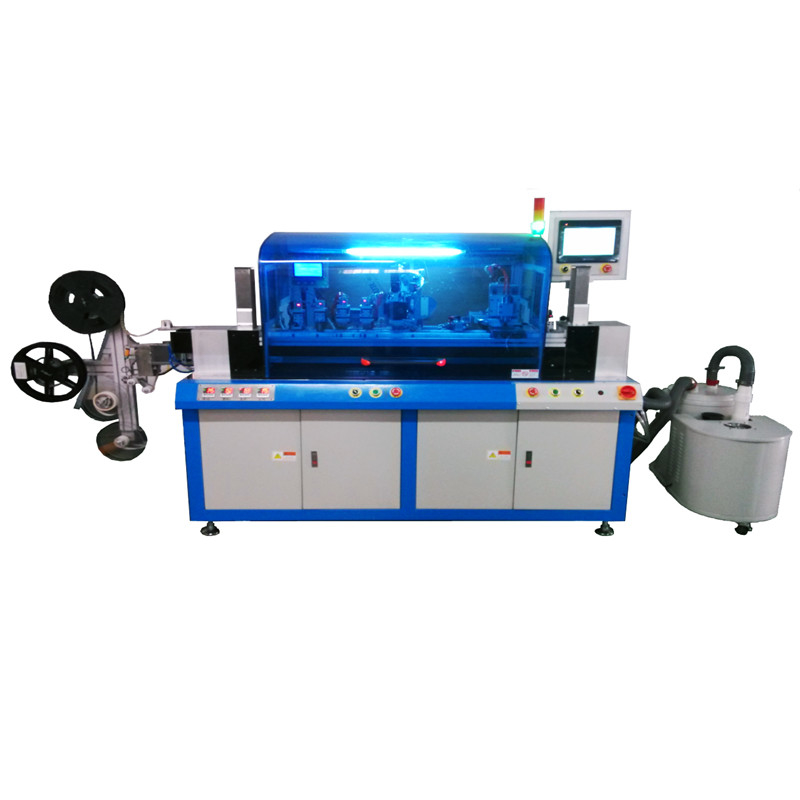

The All-in-one IC Card Milling and Embedding Machine YIME-1 integrates card body slot milling, chip cutting and placing, chip embedding, and testing in one complete process.

Key Features

Integrated system with multiple standard module milling programs for different requirements

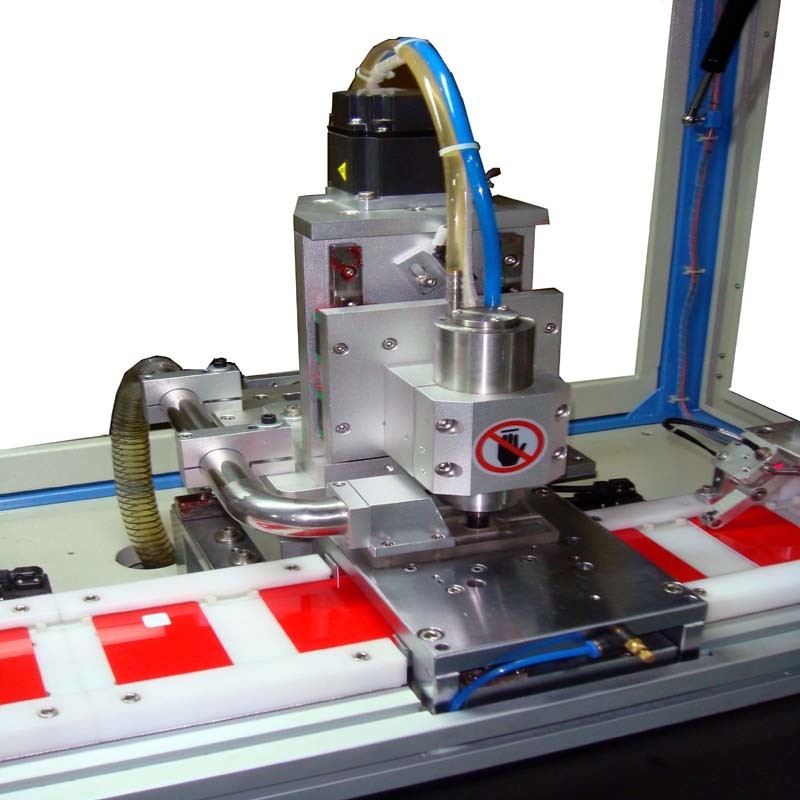

Precision milling stations capable of creating different profiles via touch screen settings
Z-axis movement through guide and ball screw driven by high precision servomotor for accurate milling depth
Special card correction structure ensures high precision slot milling and chip embedding

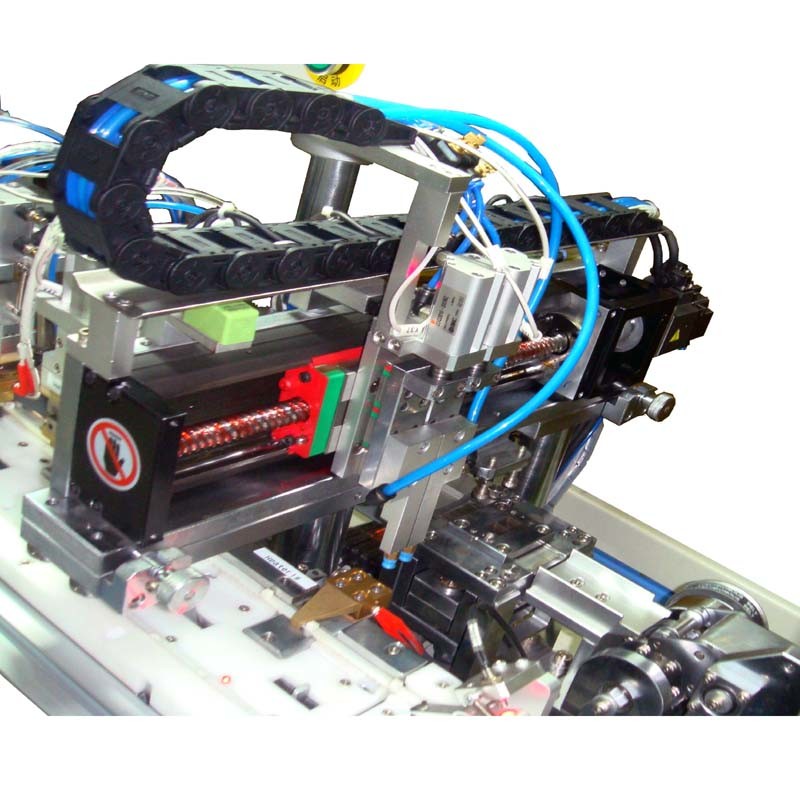

Servo motor with high precision guider and lead screw for stable and reliable module transfer
Special hot press station design ensures tight module adhesion to plastic cards
Double-card detection prevents incorrect card feeding
PLC-controlled automatic operation with error alarm system

System Configuration

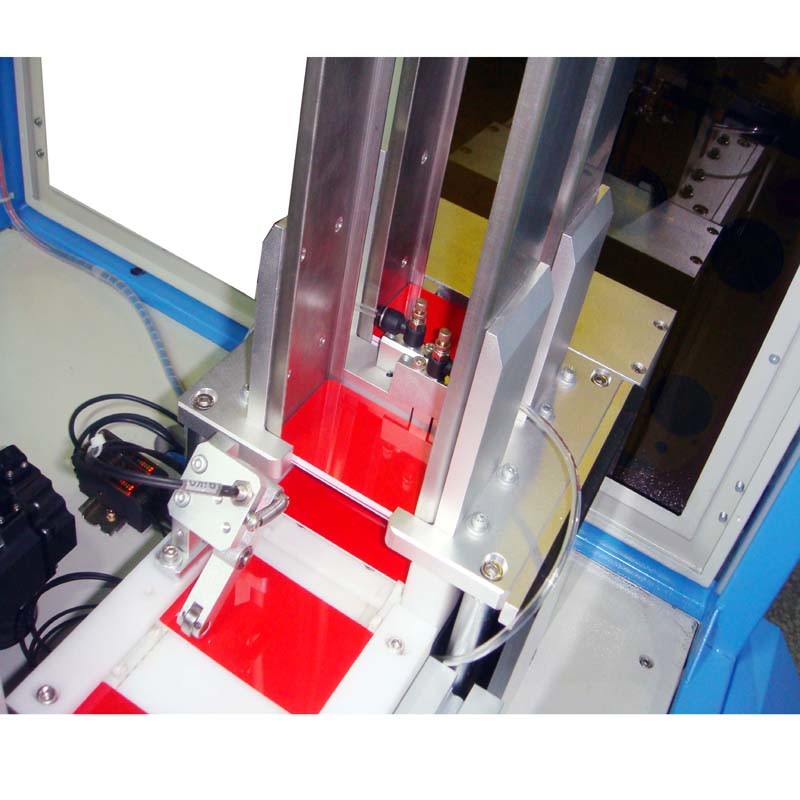

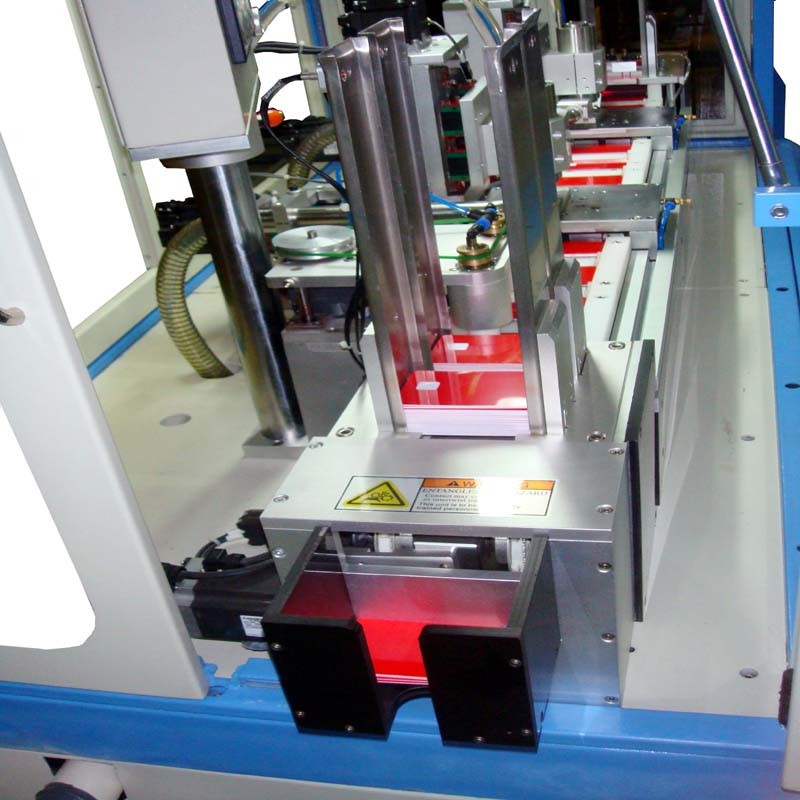

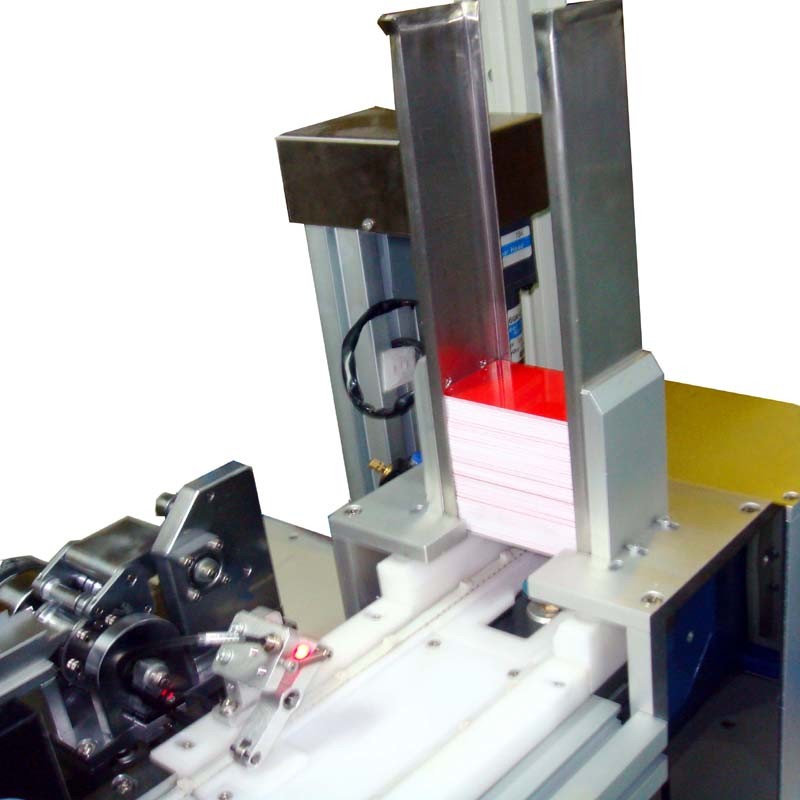

Complete system includes card feeding magazines, overlapped card detection unit, slot milling station, dust absorber, chip tape convey, punch station, chip pick-place station, heating heads, cooling head, ATR checking station, card collection magazine, and bad card collection unit.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YIME-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram, Western Union
Supply Ability:	5 sets per quater
