220V 50Hz Contact Card Production Line IC Pre Perso And Initialization Machine

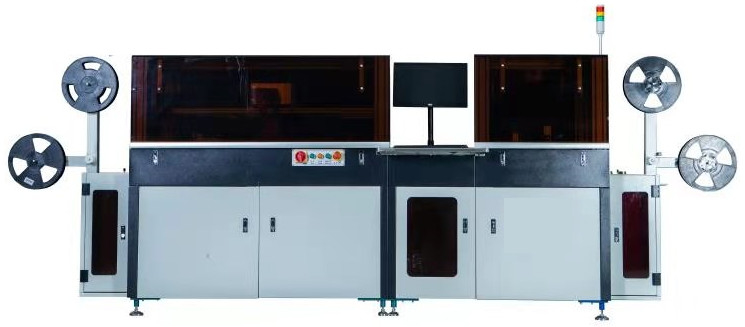

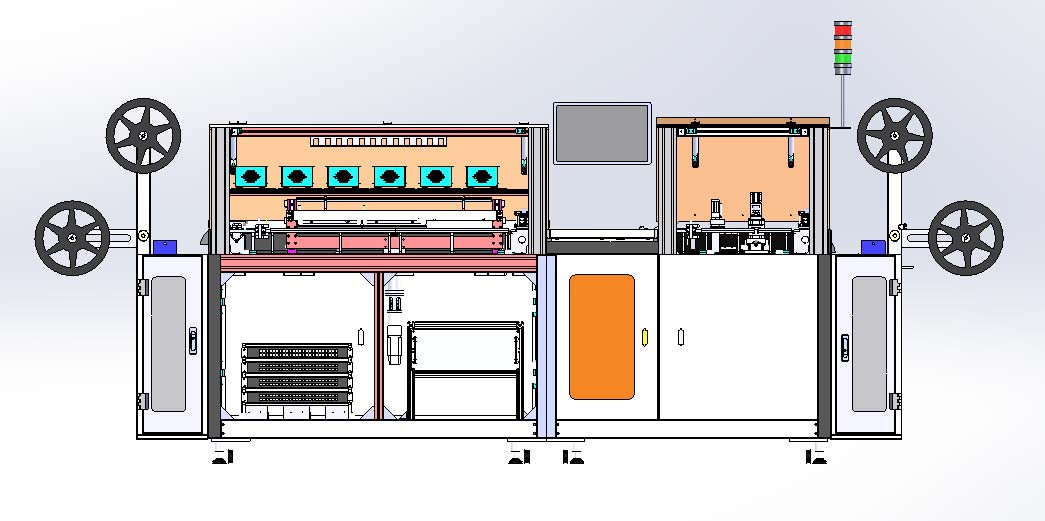

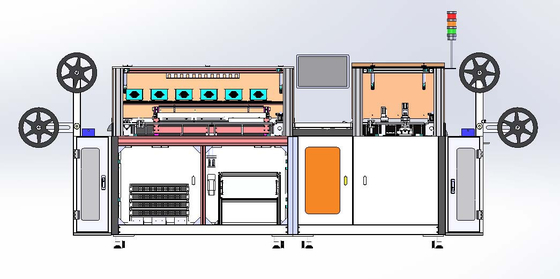

The Contact IC Preperso and Initialization Machine YCIM-1 is designed for writing general data such as smart card module COS, initialized data, and pre-personalized data in contact IC chips/modules in reel or tape form. This equipment features a modular design for enhanced functionality.

• 122 programming stations (YLD-B card reader) for both M2 and M3 contact IC chips
• Intelligence control system
• Two standard pulleys for unloading
• 1 group of main writing head × 120 programming stations = 120 programming stations
• 1 group of re-writing heads × 2 programming stations = 2 re-programming stations
• 2 punching stations for invalid modules × 1 = 2 punching stations for invalid modules
• Two standard pulleys for loading
• 2 industrial control computers (motion controlling computer and data controlling computer)
• 3 TPLINK switches (48 interfaces)

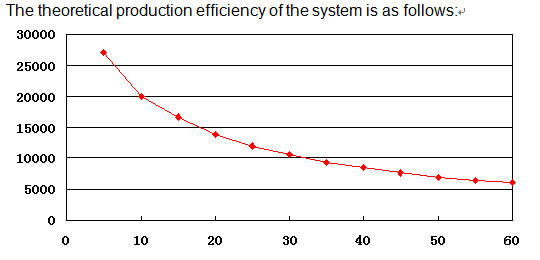

The module data writing structure supports simultaneous operation of 120 programming stations. The theoretical production efficiency of the system is as follows:

The data writing time for single module is 30 seconds, with system speed exceeding 11,000 pieces per hour. Also known as Contact IC Chip Tape Preperso and Initialization Machine, Contact IC Chip Tape Pre-personalized Data Writer, Contact IC Chip COS writer, or Contact IC Chip Data Initialization Machine.
