Name: RFID Card Inlay Full Auto Inlay Sheet Glue Tape Pasting Machine YGA-1000+
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YGA-1000+
Availability: InStock

RFID Card Inlay Full Auto Inlay Sheet Glue Tape Pasting Machine YGA-1000+

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YGA-1000+

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1 plywood case
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	5 sets per month

Get Best Price

Chat Now

Detail Information

Power Supply:	AC 220V 50/60 HZ	Total Power:	2.0 KW
Air Source:	6kg/cm2 (dry)	Control Mode:	PLC + Touch Screen
Speed:	600-800 Sheets/hour	Sheet Layout:	55, 38, 4*8 Or Customized
Highlight:	RFID Card Glue Tape Pasting Machine , Full Auto Glue Tape Pasting Machine , Inlay Sheet Glue Tape Pasting Machine

Product Description

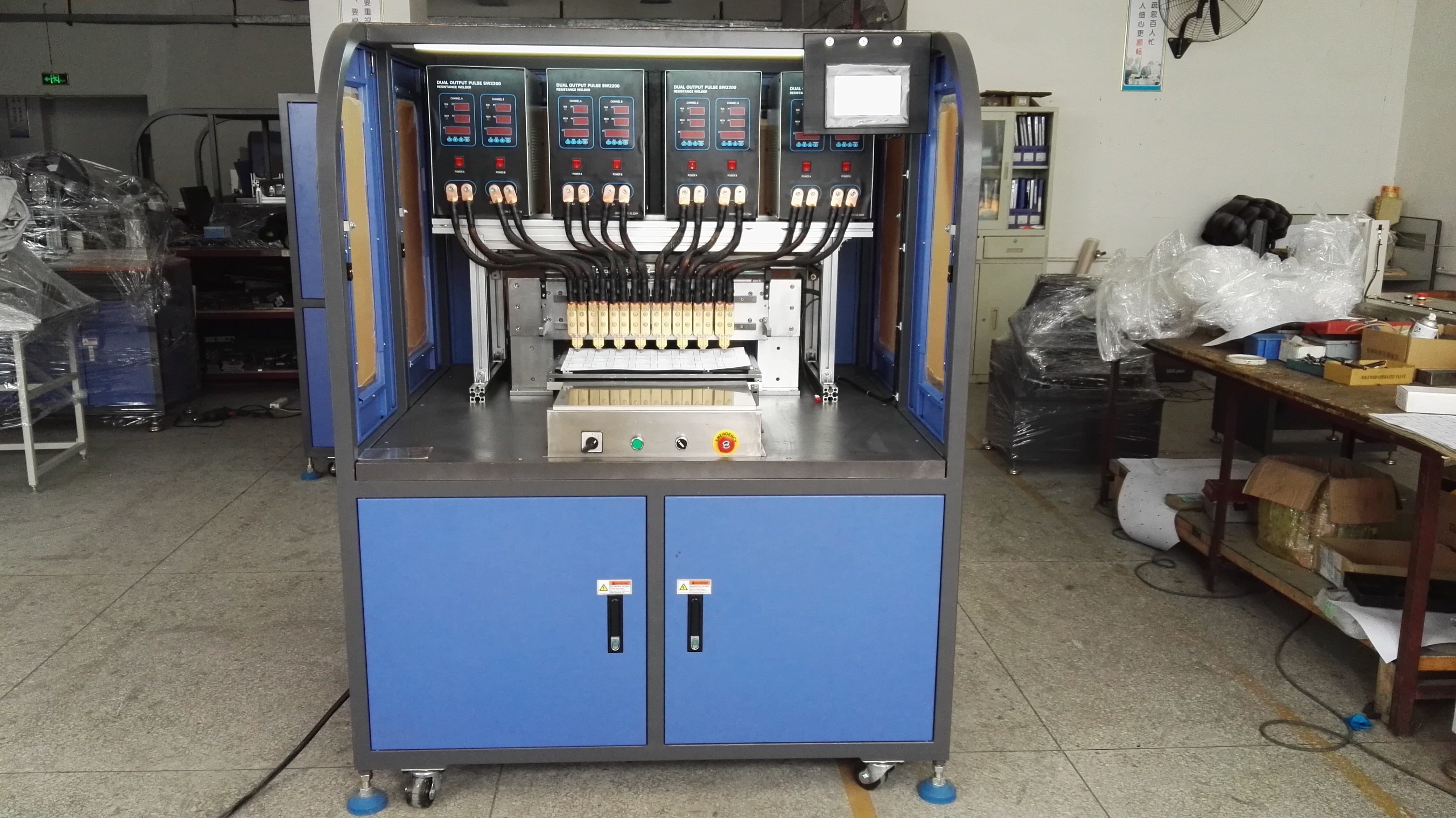

RFID Card Inlay Full Auto Inlay Sheet Glue Tape Pasting Machine YGA-1000+

Product Overview

The Full Auto Inlay Sheet Glue Tape Pasting Machine YGA-1000+ is designed for automatically picking the Inlay middle sheet, pasting glue tapes, and collecting finished sheets in RFID Card INLAY or Prelam Sheet production processes.

Key Specifications

Attribute	Value
Power supply	AC 220V 50/60 HZ
Total power	2.0 KW
Air source	6kg/cm2 (dry)
Control mode	PLC + touch screen
Speed	600-800 sheets/hour
Sheet layout	55, 38, 4*8 or customized
Weight	Approx 400 Kg
Dimensions	L2100xW880xH1700 mm

Technical Features

Automatically applies green glue tape onto chip holes in INLAY middle sheets for temporarily sticking chips during the bonding process.

Key Advantages

PLC-controlled operation with user-friendly touch screen interface
Automatic sheet pick-and-place system
Customizable sheet layout configurations available
Significantly reduces labor requirements while increasing production efficiency

Applications

Also known as: glue tape pastor/applicator, glue tape application machine, RFID card INLAY or Prelam sheet production machine, or contactless card production machine.

Ideal for RFID card manufacturers seeking to automate and optimize their inlay sheet production processes.
