Name: Manual Contactless Card Inlay Production Line Smart Card Sheet Collator And Bonder
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLB-1
Availability: InStock

Detail Information

Bonding Heads:	3	Characters:	Double Cylinders
Capacity:	800~1200 Sheet/hour	Weld Spot Quantity:	2-3 (adjusted Position)
Air Source:	6 Kg/c㎡(Dry)	Temp Control Range:	0-400℃
Highlight:	Smart Card Sheet Collator , Manual Contactless Card Inlay Production Line , Smart Contactless Card Inlay Production Line

Product Description

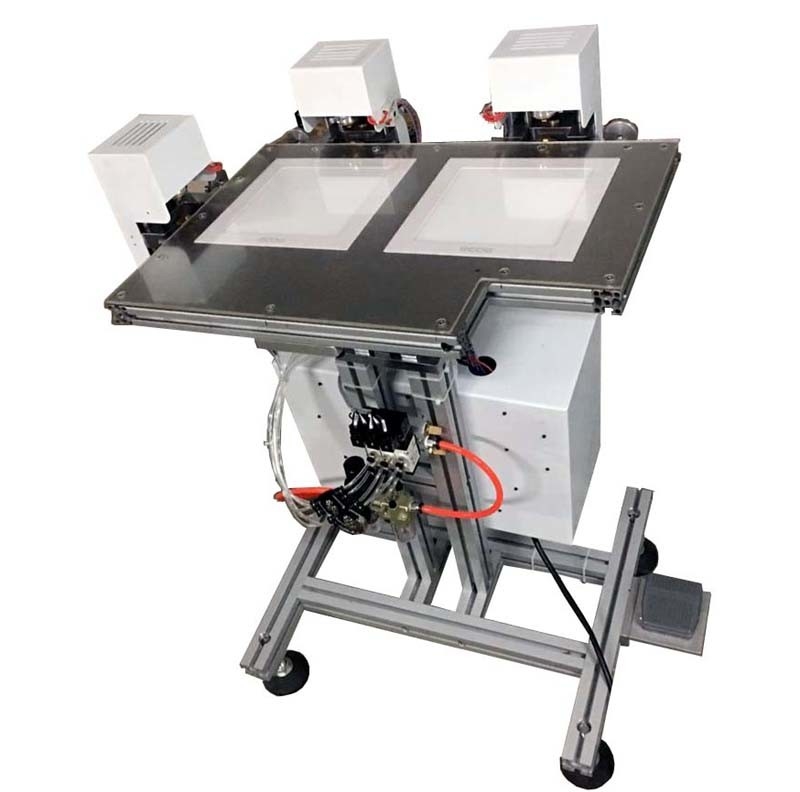

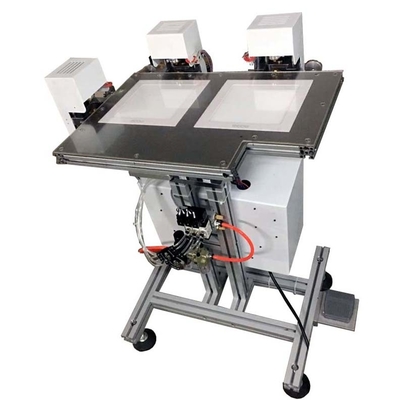

Manual Contactless Card Inlay Production Line Smart Card Sheet Collator And Bonder

Product Specifications

Attribute	Value
Bonding heads	3
Characters	double cylinders
Capacity	800~1200 sheet/hour
Weld Spot Quantity	2-3 (adjusted position)
Air Source	6 kg/c㎡(Dry)
Temp Control Range	0-400℃

Product Overview

The Manual Smart Card Sheet Collator and Bonder RFID Card Inlay Production YLB-1 features solid relay control with an imported temperature control system and time relay for precise bonding time management.

Compatible materials include: PVC, ABS, PET, and similar substrates. Note: Different materials require specific bonding parameters (temperature, time, and pressure).

Key Features

Double cylinder movement system with adjustable pressure
Three adjustable bonding heads for flexible positioning
Electrical heating system with precise temperature controller
Simple time relay control for bonding duration

Technical Parameters

Also known as: Manual Sheet Collating and Bonding Machine / Manual Card Sheet Collator and Bonder YLB-1

Common applications: card sheet bonding, inlay sheet bonding, smart card production

Parameter	Value
Power Supply	AC 220V/50 HZ
Air Source	6 kg/c㎡(Dry)
Total Power	2KW
Weight	Approx 50Kg
Available Sheet	3X8,4X8,5X5
Temp Control Range	0-400℃
Temp Control Precision	±2℃
Operator	1 person
Dimension	L600×W500×H800mm

Packaging

Standard export packaging with PE film inner protection and plywood outer case.

Our Service Commitment

Pre-Sale Services

Professional consultation on material matching and machine selection
Factory condition analysis and production line feasibility assessment
Efficient online support and factory visit arrangements
Detailed company and product documentation

Sales Services

Regular production schedule updates
Strict quality supervision and product acceptance
Timely shipping arrangements

After-Sale Support

On-site installation and commissioning assistance
Comprehensive operator training
Lifetime technical support
Regular customer follow-up and feedback collection

Warranty

1-year guarantee period with efficient service response. For complex technical issues, we provide on-site support within the warranty period.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLB-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	15-25days
Payment Terms:	T/T, Western Union, MoneyGram, Western Union
Supply Ability:	5 sets per month
