INLAY Sheet CNC Hole Punching Equipment Chip Fixation Hole Die Cutter 3x8 4x8 layout

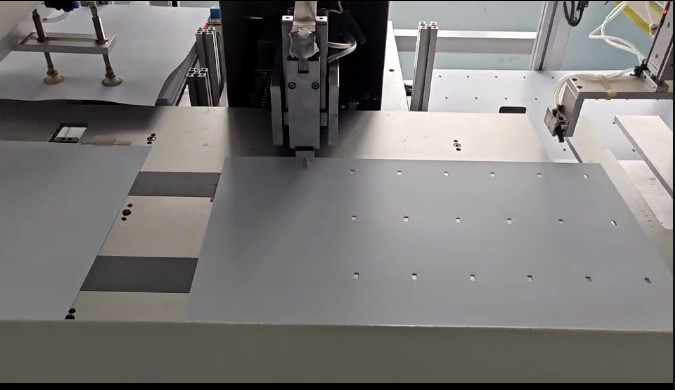

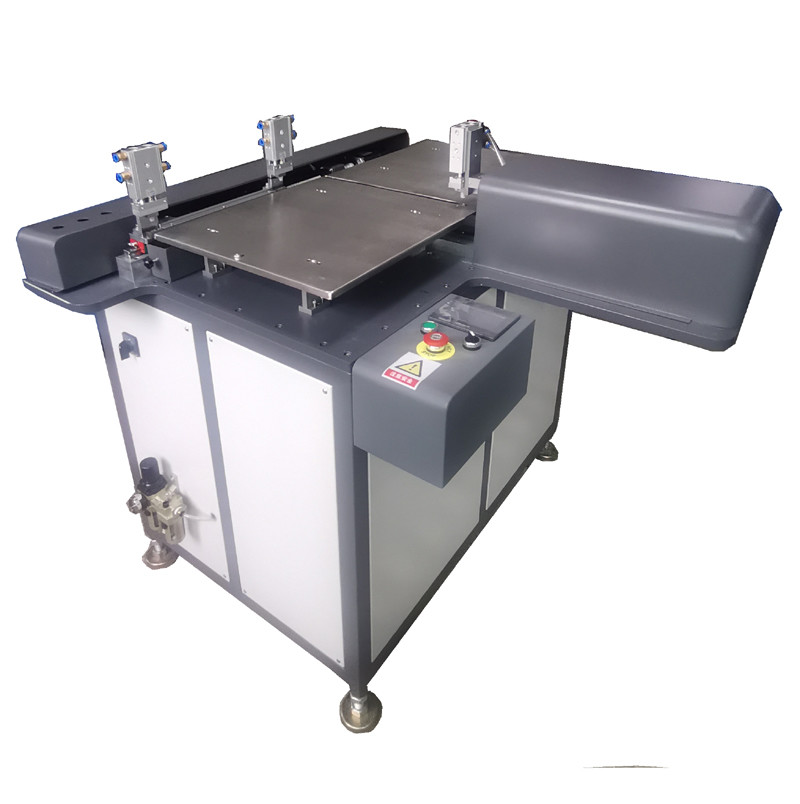

The YHP-CNC INLAY Sheet CNC Hole Punching Machine is designed for precise punching of positioning holes and chip fixing holes for RFID Card Inlay sheets. This advanced equipment eliminates the need for repeated mold adjustments, significantly improving production efficiency.

• Adjustable hole numbers and positions via touch screen parameters
• Multiple working parameter presets for future production
• Precision punching with ±0.05mm accuracy
• Handles various sheet layouts (3×8, 4×8, 5×5 etc)
• Works with PVC, ABS and PETG materials
• Mitsubishi PLC + servo system control
• Low noise operation
• User-friendly HMI system

• Precision punching protects RFID chips during production
• Dual-mold design for different production technologies
• Adjustable punching pitch and size
• Low-noise cylinder-driven operation
• Long mold lifespan (requires sharpening every 2 million punches)
• Easy material loading with dowel pin system
• Servo system ensures accurate positioning
• User-friendly PLC and touch screen interface

• Professional consultation on machine selection and setup
• Factory visits and invitations available
• Detailed company and product information

• On-site installation and setup support
• Comprehensive operator training
• Lifetime technical support
• Regular customer follow-ups

We provide a 1-year guarantee for our card machines. Our service department is available for any technical support needs. For complex issues, we offer on-site support within the warranty period.
