Name: PLC Control Contactless Card Inlay Production Line RFID Chip Tape Die Cutting Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMC-2
Availability: InStock

PLC Control Contactless Card Inlay Production Line RFID Chip Tape Die Cutting Machine

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YMC-2

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	20-25days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	5sets per month

Get Best Price

Chat Now

Detail Information

PLC Model:	Mitsubishi PLC	Operator:	1 Person
Dimension:	L1200×W400×H1600mm	Gross Weight:	100 KG
Speed:	10000 Pcs Per Hour	Origin:	China
Highlight:	RFID Tape Die Cutting Machine , RFID Contactless Card Inlay Production Line , PLC Contactless Card Inlay Production Line

Product Description

PLC Control Contactless Card Inlay Production Line RFID Chip Tape Die Cutting Machine

Product Specifications

Attribute	Value
PLC model	Mitsubishi PLC
Operator	1 person
Dimension	L1200×W400×H1600mm
Gross weight	100 KG
Speed	10000 pcs per hour
Origin	China

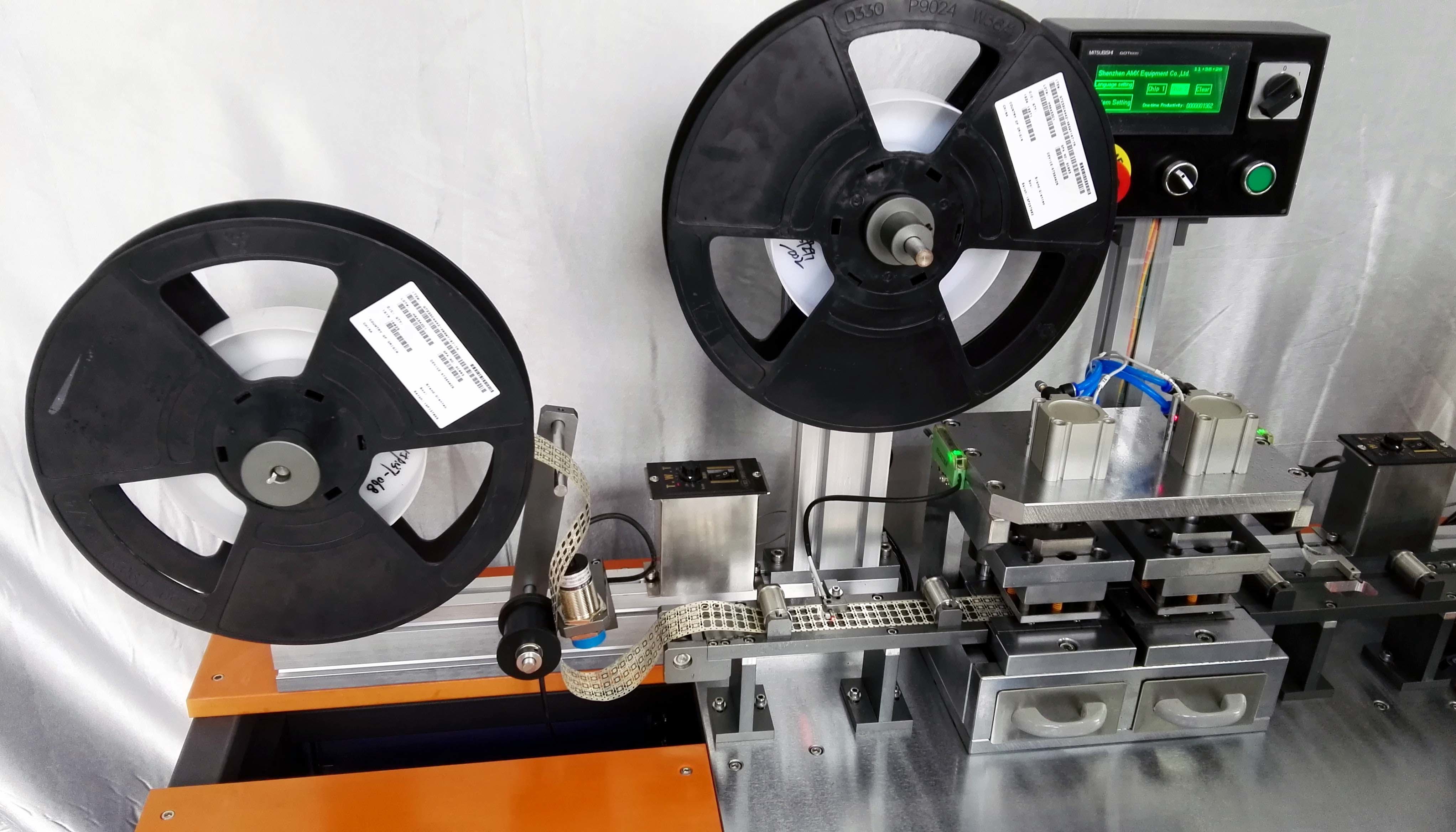

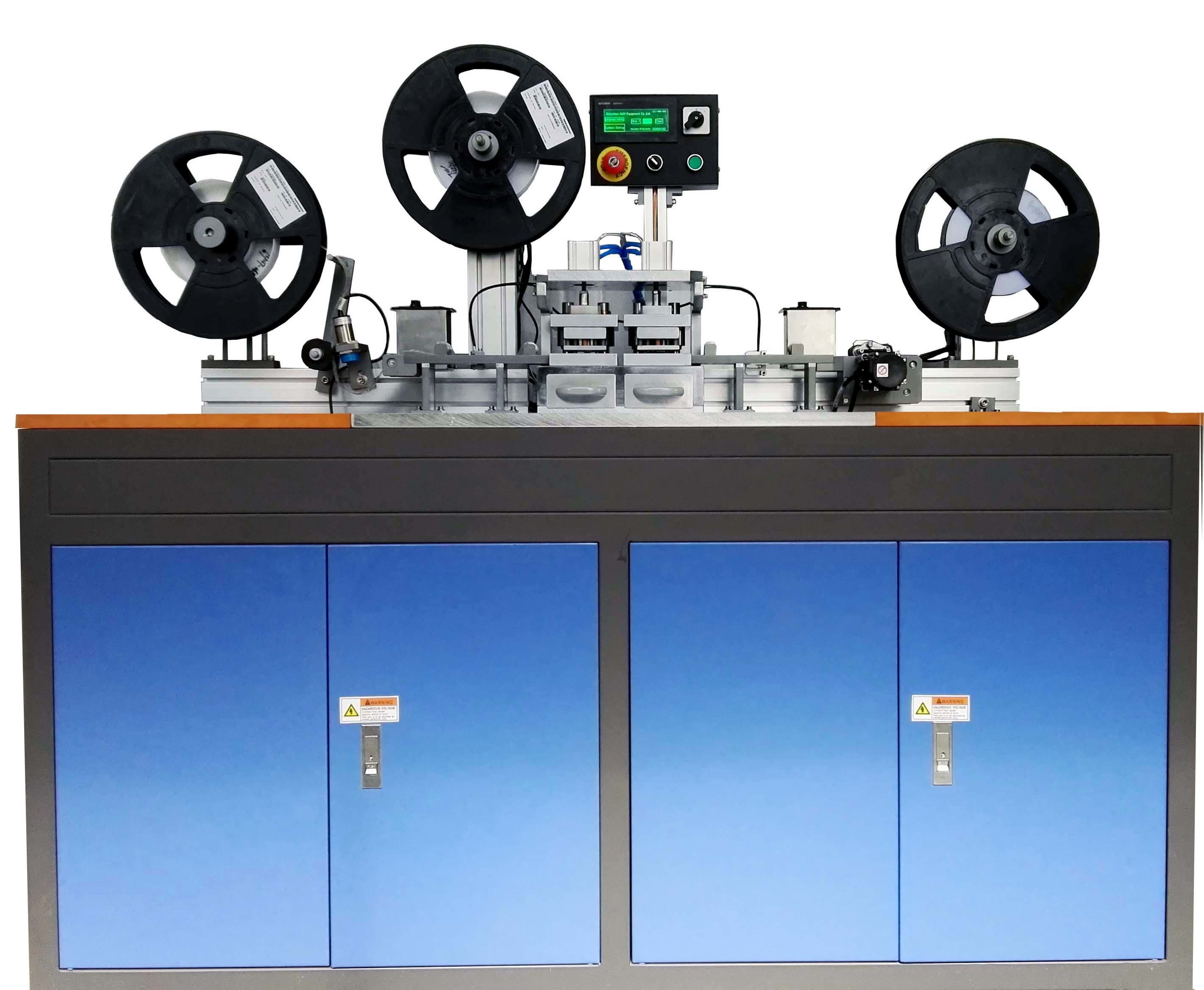

Contactless IC Module Cutter RFID Chip Tape Die Cutting Machine YMC-2

Product Introduction

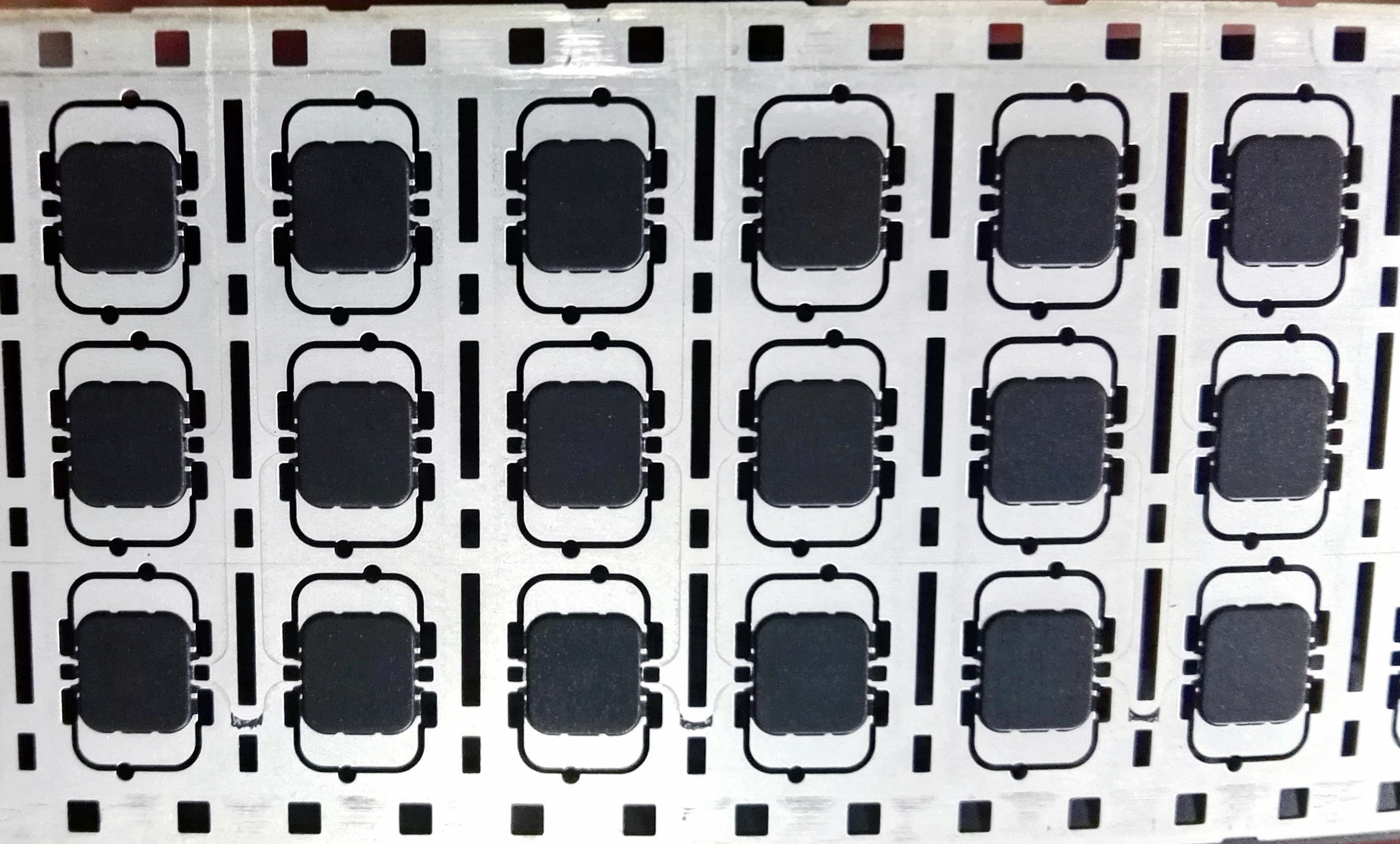

This precision machine is specifically designed for cutting or punching single contactless modules from module or chip tape, offering high efficiency and reliability in RFID card production.

Mitsubishi PLC control ensures stable machine operation
Premium SMC pneumatic components for durability
Automatic module cutting counter included

Technical Parameters

Performance Specifications

Speed: 10000 pieces per hour
Dimensions: L1200×W400×H1600mm
Weight: 100 KG
Power supply: AC220V 50/60HZ
Power consumption: 0.5 KW
Compressed air requirement: 5 kg/cm²
Control system: Mitsubishi PLC

Additional Features

Comprehensive Service Package

Pre-Sale Services

Professional consultation on raw materials and machine selection
Factory condition assessment and feasibility analysis
Model recommendation based on production requirements
Factory visits arranged with invitation letters

After-Sale Support

On-site installation and commissioning by engineers
Comprehensive operator training
Lifetime technical support
Regular follow-ups and feedback collection

Warranty Coverage

1-year comprehensive warranty with prompt technical support. For complex issues, we provide on-site assistance within the warranty period.
