Name: Automatic Contactless Card Inlay Production Line RFID Card Inlay Sheet Chip Hole Die Cutter
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHP-3000
Availability: InStock

Automatic Contactless Card Inlay Production Line RFID Card Inlay Sheet Chip Hole Die Cutter

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YHP-3000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	20-25days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	5sets per month

Get Best Price

Chat Now

Detail Information

INLAY Sheet Layout:	3×8, 4×8, 5×5 Etc	Operator Needed:	1 Person
Normal Compressed Air:	5-6kg/cm2, 50L/min	Model:	YHP-3000
Working Speed:	800-1000 Sheets Per Hour	Trade Term:	EXW,FOB,CIF Etc
Highlight:	Auto Contactless Card Inlay Production Line , Automatic Contactless Card Inlay Production Line , RFID Card Hole Die Cutter

Product Description

Automatic Contactless Card Inlay Production Line RFID Card Inlay Sheet Chip Hole Die Cutter

Product Specifications

Attribute	Value
INLAY sheet layout	3×8, 4×8, 5×5 etc
Operator needed	1 person
Normal Compressed air	5-6kg/cm2, 50L/min
Model	YHP-3000
Working Speed	800-1000 sheets per hour
Trade term	EXW,FOB,CIF etc

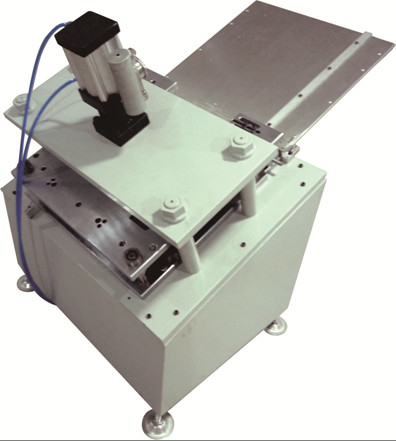

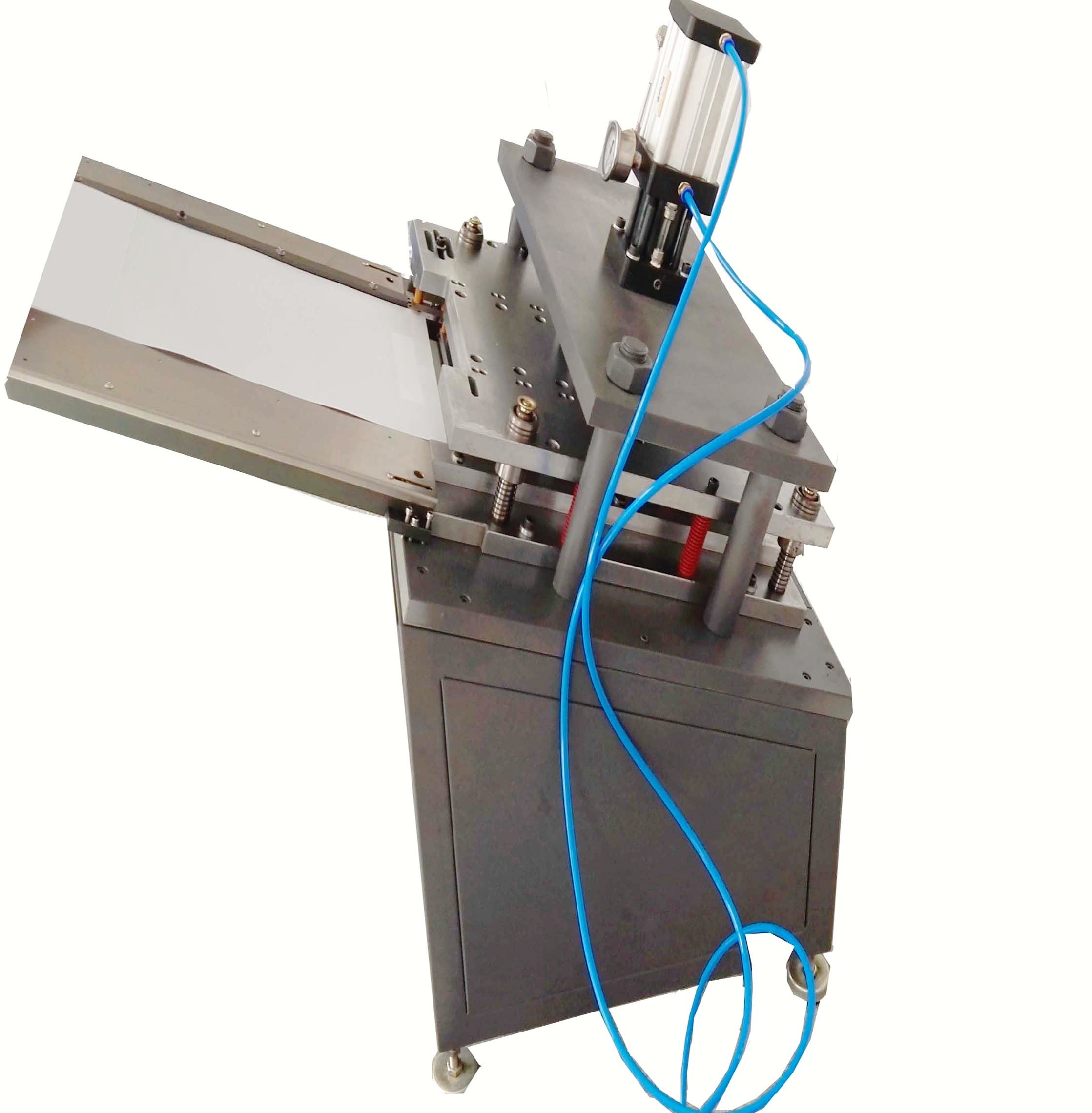

RFID Card Inlay Sheet Chip Hole Die Cutter YHP-3000 One Time Punching

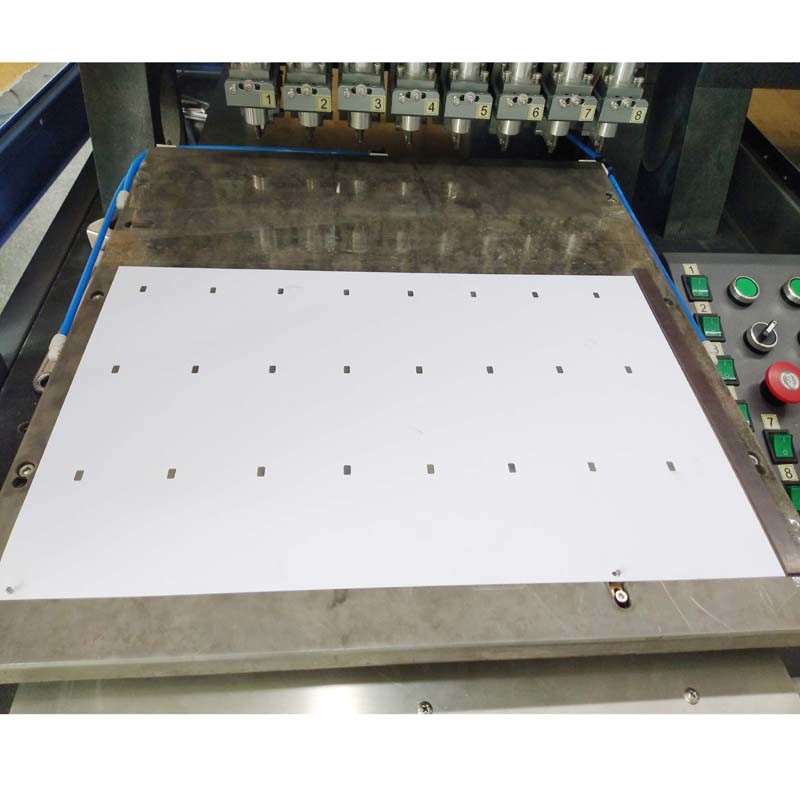

This precision machine is designed for punching both side position holes and chip fixing holes (like 24 holes for 3×8 layout) in RFID card INLAY sheet production. It handles PVC, PETG and ABS sheets of varying thicknesses with high accuracy and efficiency.

Key Features

Simultaneous punching ensures precise hole positioning
High-speed operation with easy maintenance
Quick mold change capability for different INLAY layouts (3×8, 4×8, 5×5)
Servo positioning + PLC control for accuracy (0.0125mm per step)
Low-noise operation with durable molds (2 million punches between maintenance)
User-friendly HMI touch screen interface

Technical Specifications

Dimensions: L600×W550×H800 mm

Weight: 50kg

Power: AC220V 50/60HZ 1.5KW

Air pressure: 5-6kg/cm²

Air consumption: 50L/min

Position precision: 0.05mm

Output capacity: 800-1000 sheets per hour

Advanced Features

Dual-mold design for flexible production requirements
Adjustable punching mold pitch and size
Precision dowel pin loading system for easy material adjustment
Protects chips by ensuring modules and PVC embedding on same plane
Visualized PLC control system for stable operation
