Name: 1.5KW Contactless Card Inlay Production Line RFD Card Inlay Sheet Hole Puncher
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHP-A+
Availability: InStock

Detail Information

Applicable Layout:	3×8, 4×8, 5×5 Or 9×8( For 3-tag Mini RFID Card)	Number Of Punch Die Head:	3, 4, 5 Or 8
Compressed Air:	5kg/cm2, 50L/min	Machine Model:	YHP-A+
Speed (max.):	800-1000 Sheets Per Hour	Position Precision:	0.05mm
Highlight:	RFD Card Sheet Hole Puncher , 1.5KW Contactless Card Inlay Production Line , Contactless Card Inlay Production Line 60HZ

Product Description

1.5KW Contactless Card Inlay Production Line RFD Card Inlay Sheet Hole Puncher

Product Specifications

Attribute	Value
Applicable layout	3×8, 4×8, 5×5 or 9×8 (for 3-tag mini RFID card)
Number of punch die head	3, 4, 5 or 8
Compressed air	5kg/cm², 50L/min
Machine model	YHP-A+
Speed (max.)	800-1000 sheets per hour
Position precision	0.05mm

Product Overview

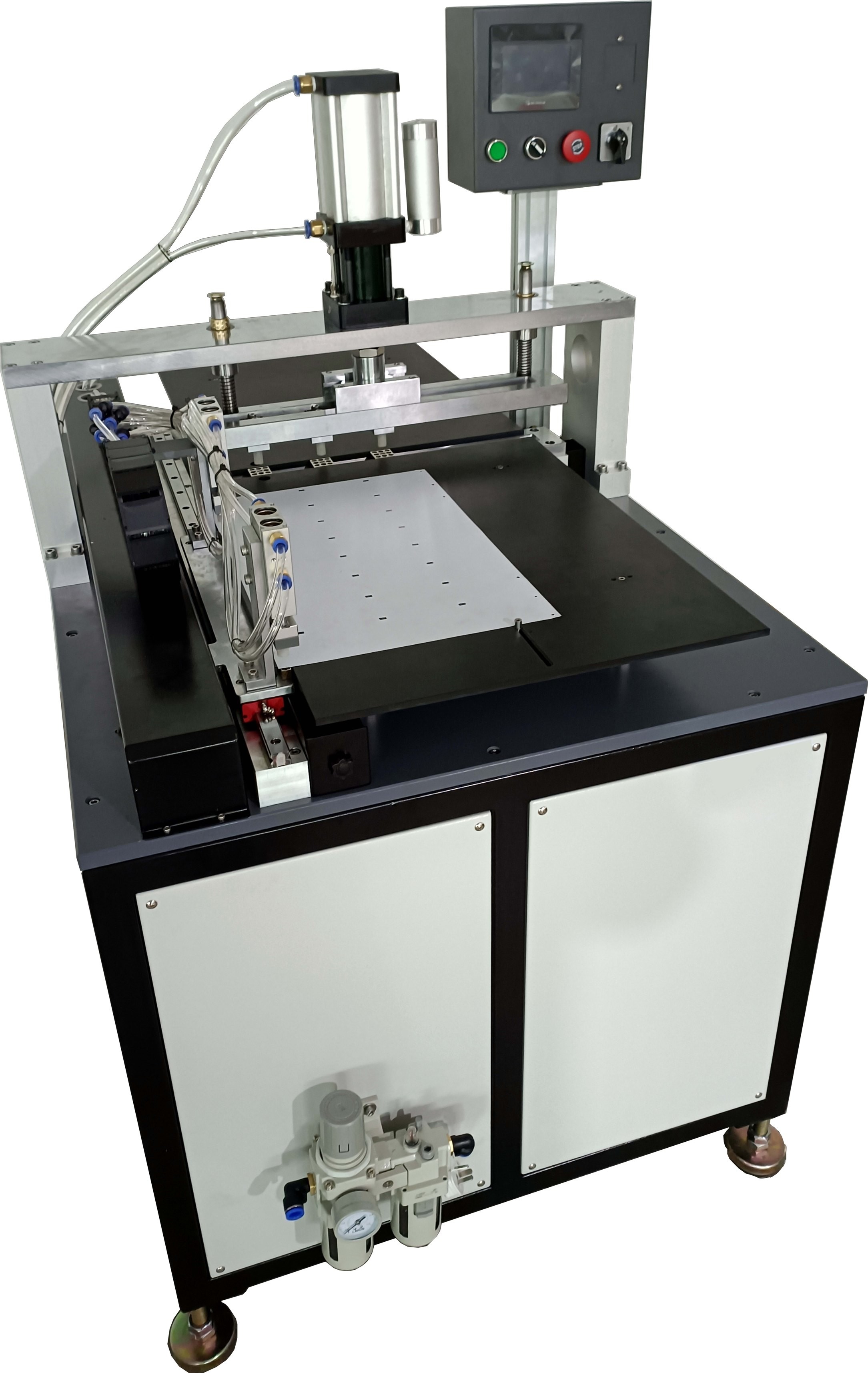

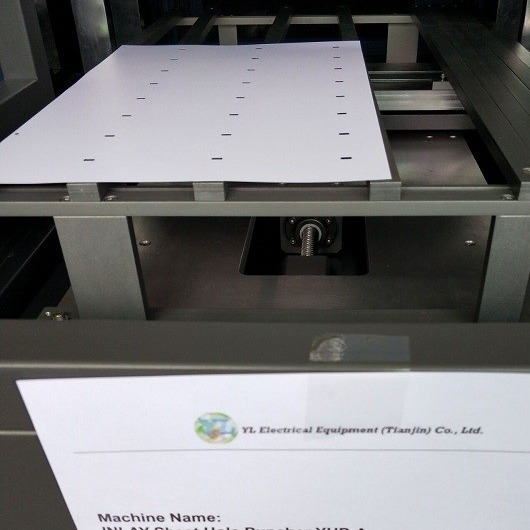

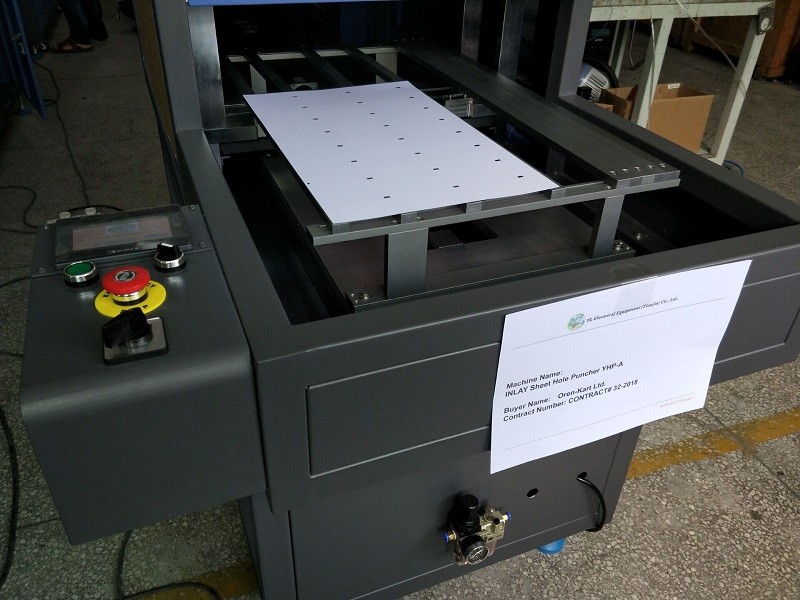

RFID Card INLAY Sheet Hole Puncher Adjustable for Prelam Inlay Production YHP-A+ is designed to punch both two side position holes and chip fixing holes (like 24 hole for 3×8 layout) for installing COB chips in the INLAY sheet middle layer in the process of RFID card INLAY sheet production.

Key Features

Punches 2-3 sheets per time for higher work efficiency
Adjustable punching positions within a certain range via touch screen control
Includes punching mould for standard big chip (5×8mm) with optional smaller chip mould (3.8×5.8mm)
Processes PVC, PETG and ABS sheets of various thicknesses and sizes
Servo system and precision mold ensure product quality and productivity
Easy to operate and maintain with extended service life

Technical Parameters

Dimensions	L1350×W700×H1550mm
Weight	350kg
Power	AC220V 50/60HZ 1.5KW
Air pressure	5kg/cm²
Control mode	Servo positioning + PLC control
Accuracy	Servo division per step = 0.0125mm
Output	800-1000 sheets per hour

Advanced Features

Protects chips by ensuring modules and PVC embedding on the same plane
Two molds for different production technologies with quick switch selection
Adjustable punching mold pitch and size
Low-noise cylinder-driven punching mold
PLC control for different layout punching
Mold life: Requires whetting every two million punches
Servo system positioning for accuracy
User-friendly HMI system with touch screen

Our Service

Pre-sale: Professional suggestions, device model choice, efficient online service, factory visits
Sale: Production updates, quality supervision, product acceptance, timely shipping
After-sale: Installation guidance, setup assistance, operator training, lifetime technical support

Guarantee

We provide a one-year guarantee period for our card machines. Our service department is available for efficient support. For unsolvable questions within one year, we offer on-site support.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHP-A+

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	20-25days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	5sets per month
