Name: Prelam Sheet Hole Puncher Machine For 3x8 RFID Card Inlay Sheet Production
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHP-A
Availability: InStock

Detail Information

Sheet Layout:	Such As 3×8, 4×8, 5×5 Etc	Materials:	PVC, ABS And PETG Etc Plastic Materials
Product Name:	Prelam Sheet Hole Puncher	Product Model:	YHP-A
Gross Weight::	Around 350 Kg	Origin:	China
Highlight:	Prelam Sheet Hole Puncher Machine , 3x8 Hole Puncher Machine

Product Description

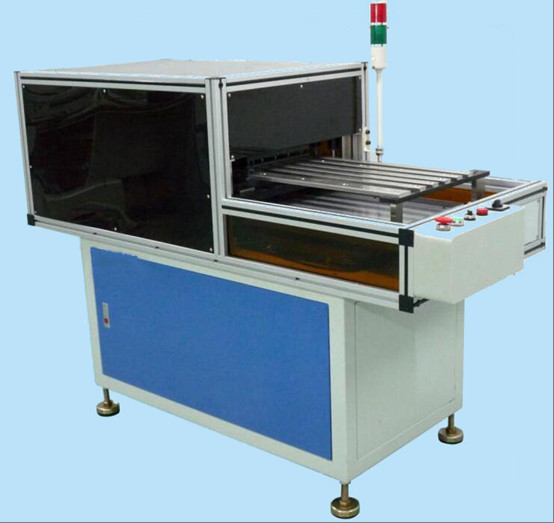

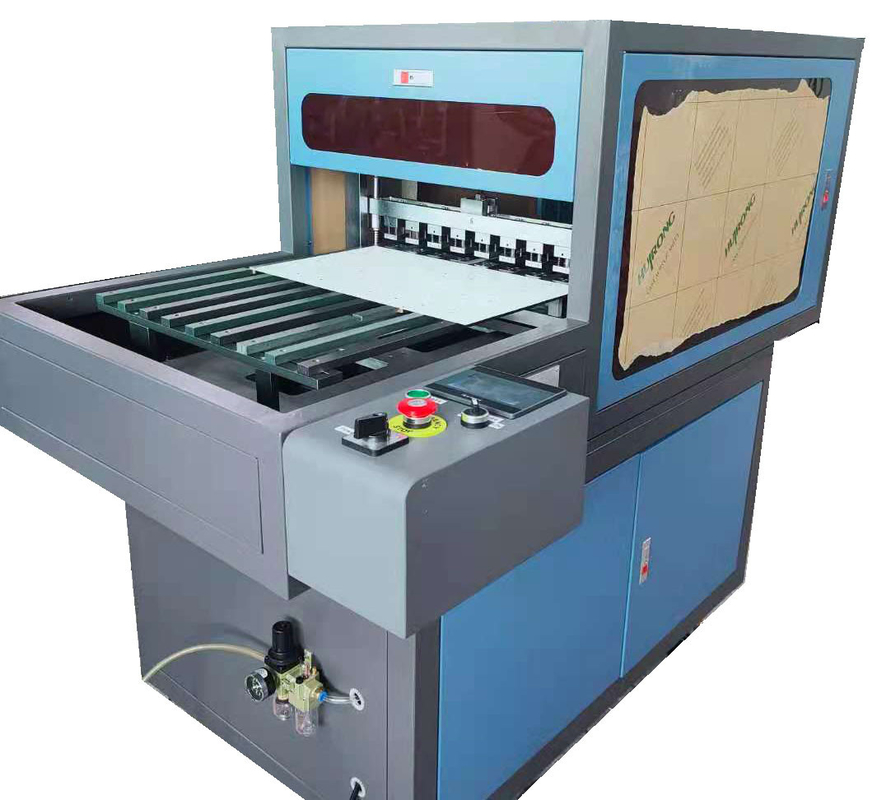

Prelam Sheet Hole Puncher Machine For 3x8 RFID Card Inlay Sheet Production

Product Specifications

Sheet layout	3×8, 4×8, 5×5 etc
Materials	PVC, ABS and PETG etc plastic materials
Product model	YHP-A
Gross Weight	Around 350 kg
Origin	China

Product Overview

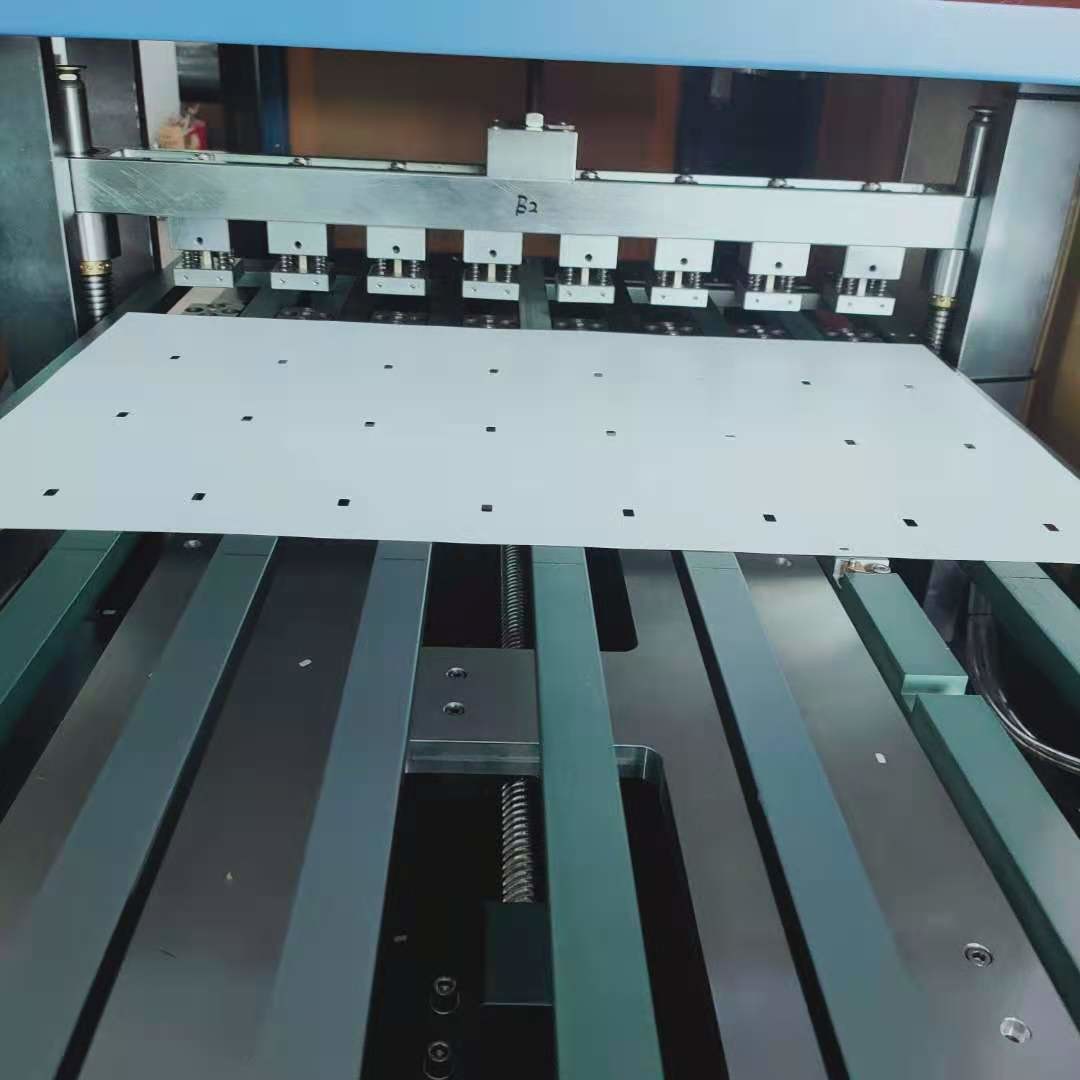

The Contactless Card INLAY Sheet Hole Puncher YHP-A is designed to punch chip fixing holes for installing built-in modules in contactless card INLAY sheet production. With adjustable punching mold positions, it accommodates various chip sizes including standard COB chips (MOA2, MOA4) and smaller MOA8 chips.

This precision machine punches positioning and clearance holes on PVC, PETG, and ABS sheets of varying thicknesses for RFID card production. Servo-controlled with PLC automation, it ensures high-quality output with minimal operator requirement.

Key Features

Dimensions	H1350 × W700 × L1550mm
Weight	350kg
Power	AC220V 50/60HZ 1.5KW
Air pressure	6kg/cm²
Control system	Servo positioning + PLC control
Positioning accuracy	0.1mm
Production capacity	300-400 sheets/hour

Technical Advantages

Dual-mold system accommodates different chip sizes with quick switch capability
Adjustable punching mold pitch and size for customized requirements
Low-noise cylinder-driven punching mechanism
Precision molds ensure consistent product quality
Extended mold lifespan - requires sharpening only after two million punches
Servo positioning system guarantees accurate hole placement
User-friendly HMI with touch screen interface
Dowel pin loading system for easy material adjustment

This industrial-grade hole puncher is an essential component in RFID card inlay production lines, offering reliable performance, precision engineering, and efficient operation for high-volume manufacturing environments.
