PLC Controlled Contactless IC Module Cutter For RFID Chip 5*8mm COB Chip Tape Die Cutter

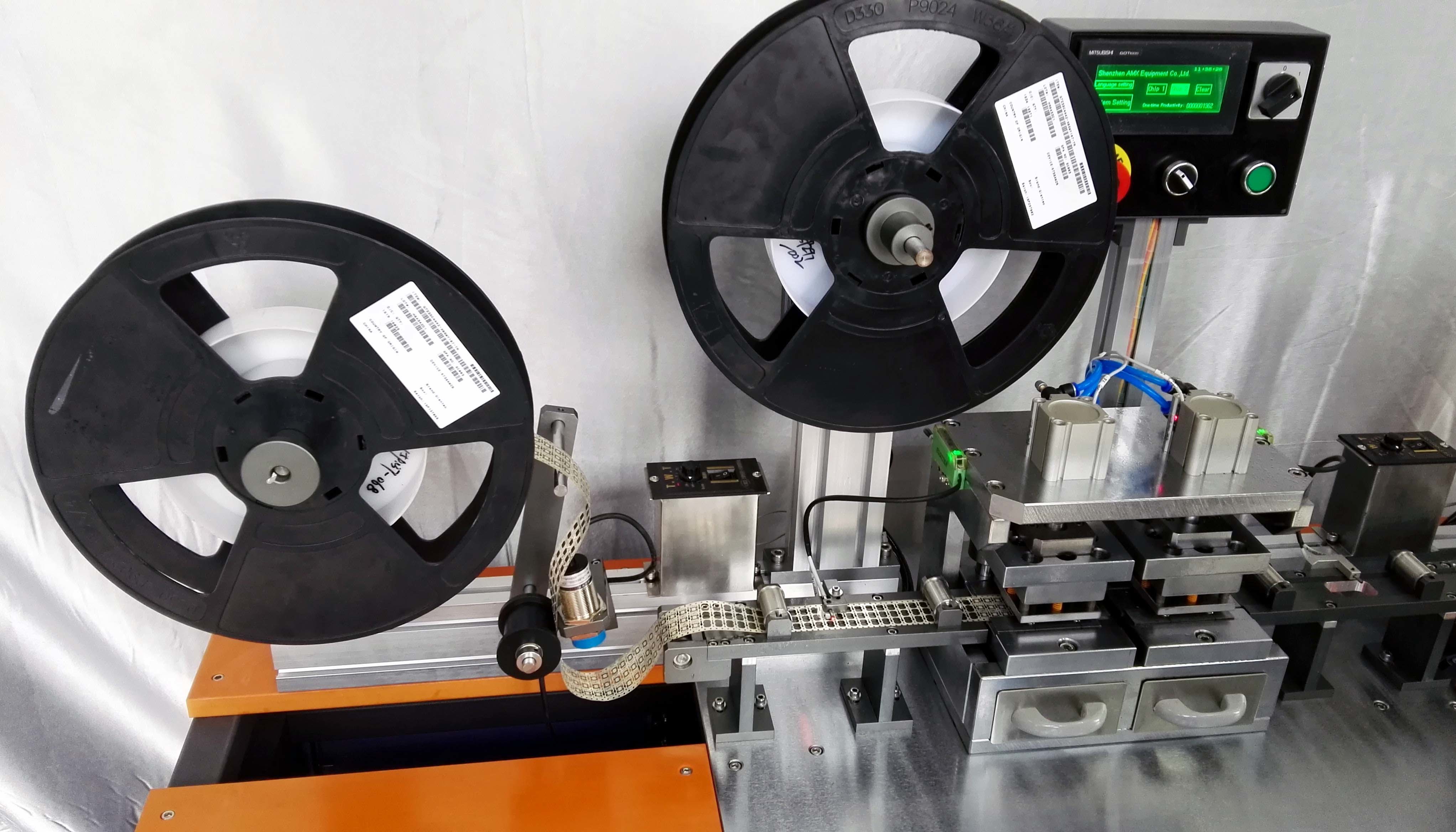

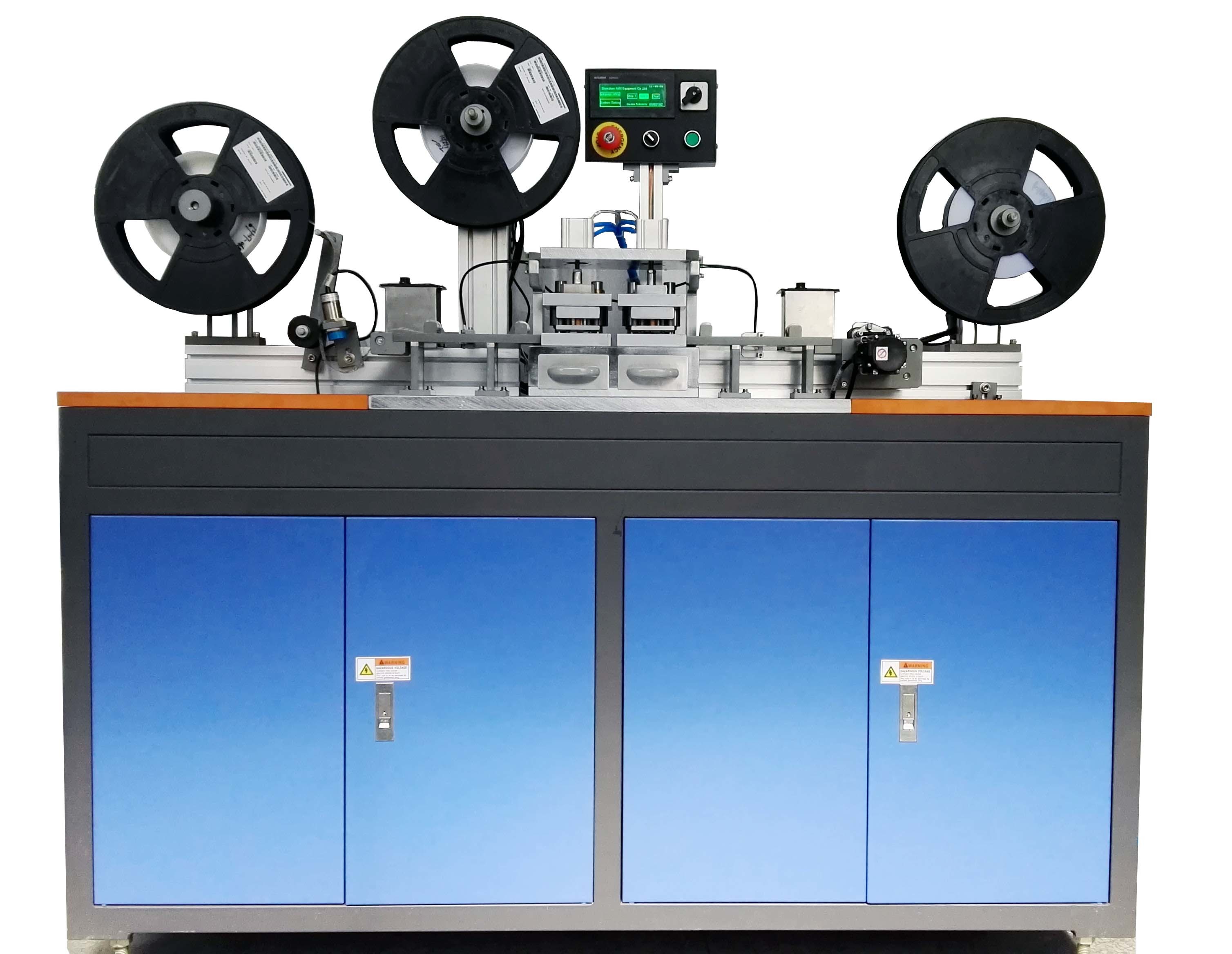

The Contactless IC Module Cutter (Model YMC-2) is designed for precision cutting or punching of single contactless modules from module or chip tape.

• Mitsubishi PLC control ensures stable machine operation
• Premium SMC pneumatic components for reliable performance
• Automatic module cutting counter for production tracking

• Speed: 10000 pieces per hour
• Dimensions: L1200×W400×H1600mm
• Weight: 100kg
• Power supply: AC220V 50/60HZ
• Power consumption: 0.5KW
• Compressed air requirement: 5 kg/cm²
• Control system: Mitsubishi PLC

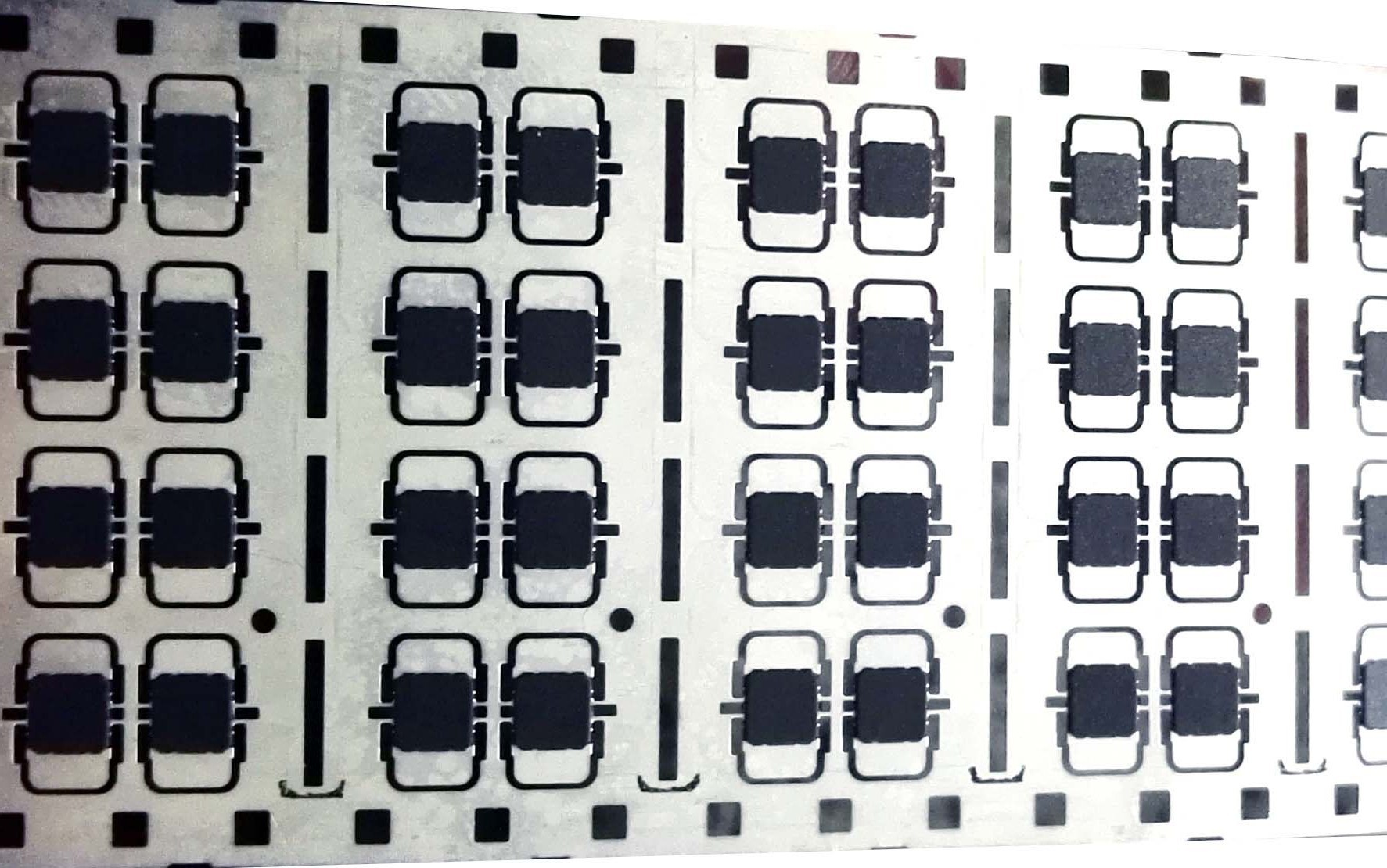

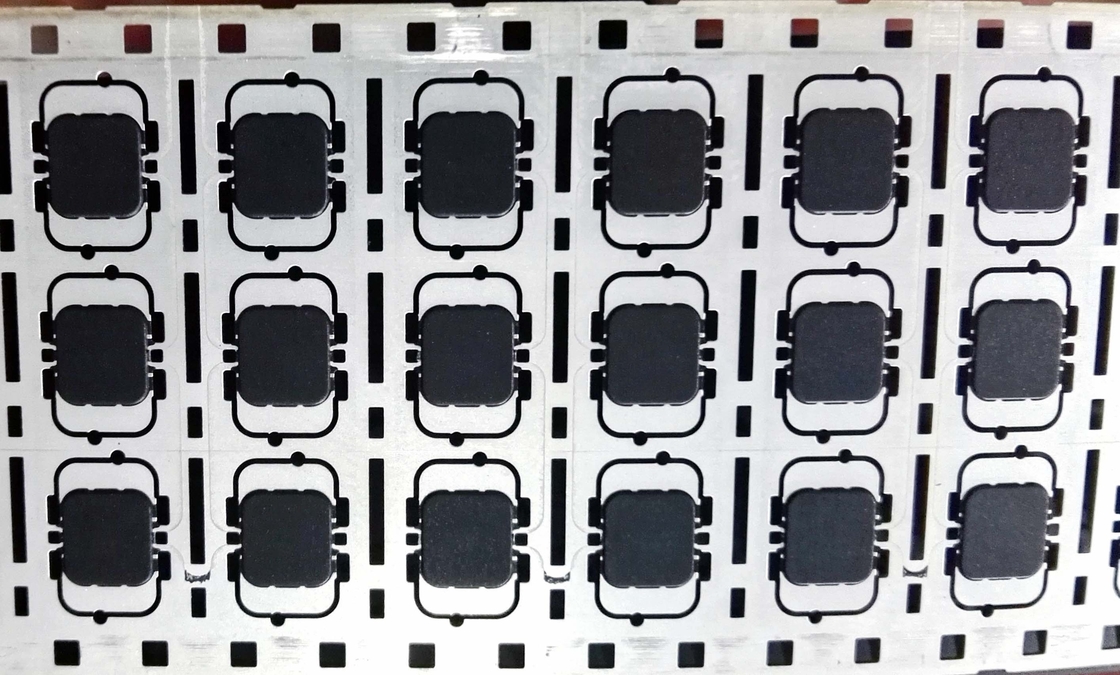

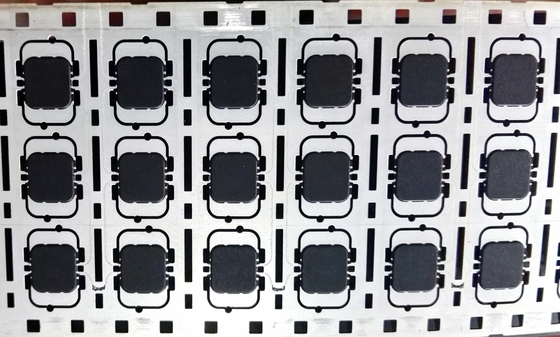

Automatically punches contactless chip module tape into single chip pieces. (Note: Not required when using only COB chips)

Machine Model: Contactless IC Module Cutter YMC-2 (2 stations)

• Station 1: MOA4 or MOA2 big chip punch
• Station 2: MOA8 small chip punch

Standard output: 6000-8000 chips per hour

Recommended quantity: 1 set
