Name: RFID Card INLAY Sheet Production Line 5 Welding Heads Chip Antenna Bonder
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YCB-15
Availability: InStock

Detail Information

Working Speed:	2500-3500 Units Per Hour	Model NO:	YCB-15
Mechanical Adjustment:	0.01mm	Electricity Input:	AC220V 50/60HZ
Servo Precision:	X,Y= 0.0125MM	Machine Package:	L1400 W1200 H1800mm
Highlight:	RFID Card INLAY Sheet Production Line , Chip Card INLAY Sheet Production Line

Product Description

RFID Card INLAY Sheet Production Line 5 Welding Heads Chip Antenna Bonder

Product Specifications

Attribute	Value
Working Speed	2500-3500 units per hour
Model NO	YCB-15
Mechanical adjustment	0.01mm
Electricity input	AC220V 50/60HZ
Servo precision	X,Y= 0.0125MM
Machine Package	L1400 W1200 H1800mm

Product Overview

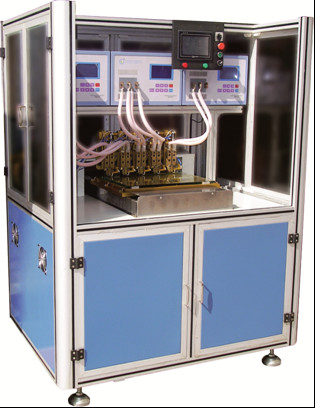

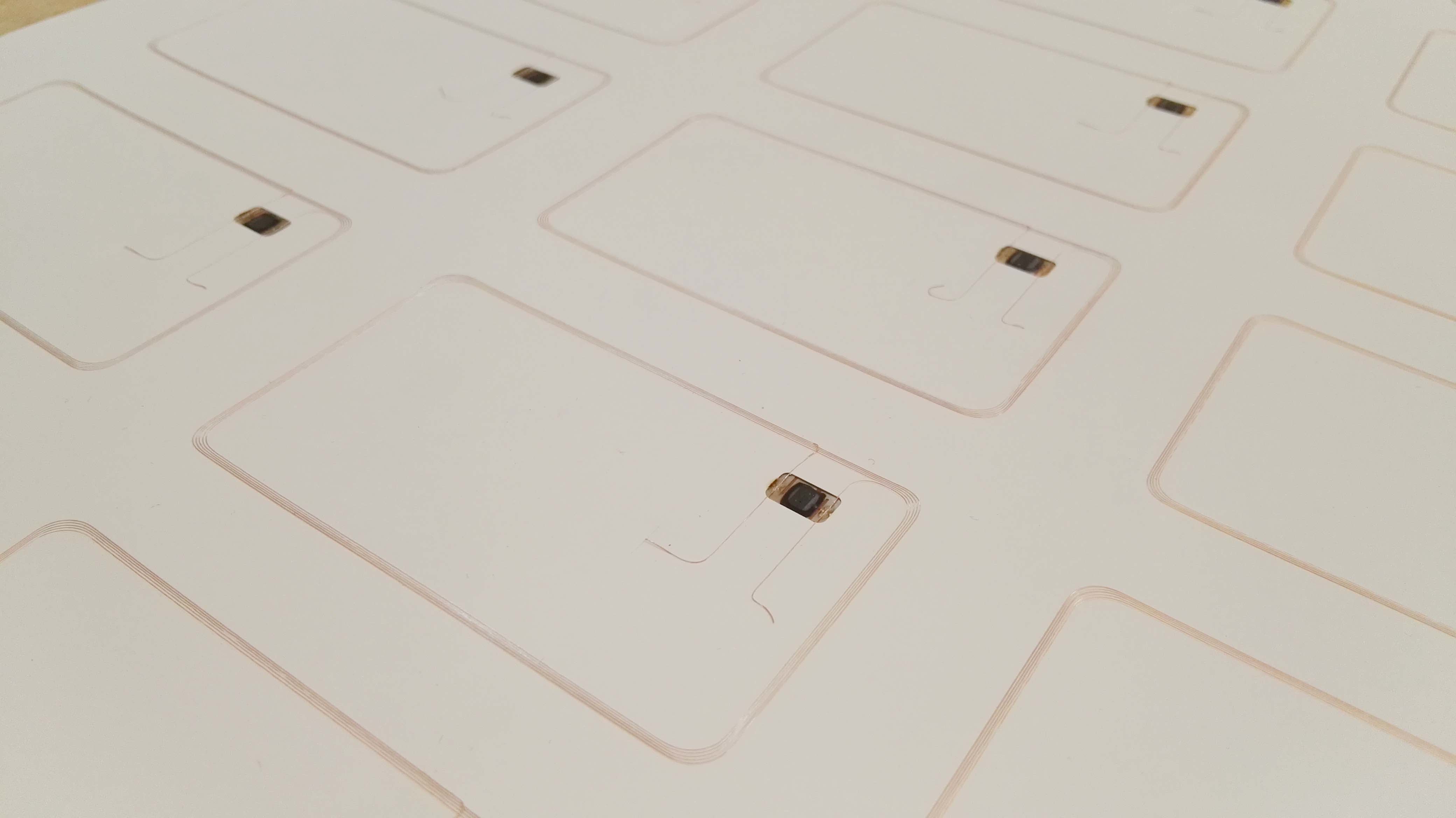

The RFID Card INLAY Sheet 5 Welding heads Chip Antenna Bonder YCB-15 is designed for automatic bonding or welding of contactless card antennas and chips with high speed and precision. This machine is an essential component in RFID card Inlay or Prelam sheet production lines.

Key Features

High-quality components including Mitsubishi PLC, touch screen, and servo system
German REXROTH lead screw for precise motion control
Dual-pulse high-frequency inverting welding system for fast, quality welding
Option for instant current or voltage output selection

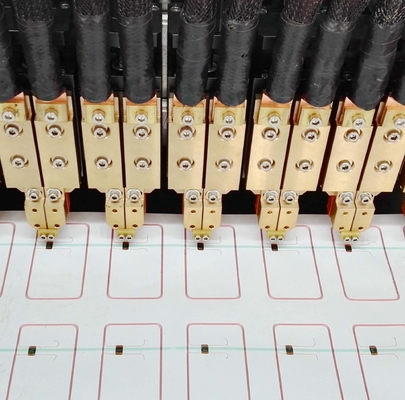

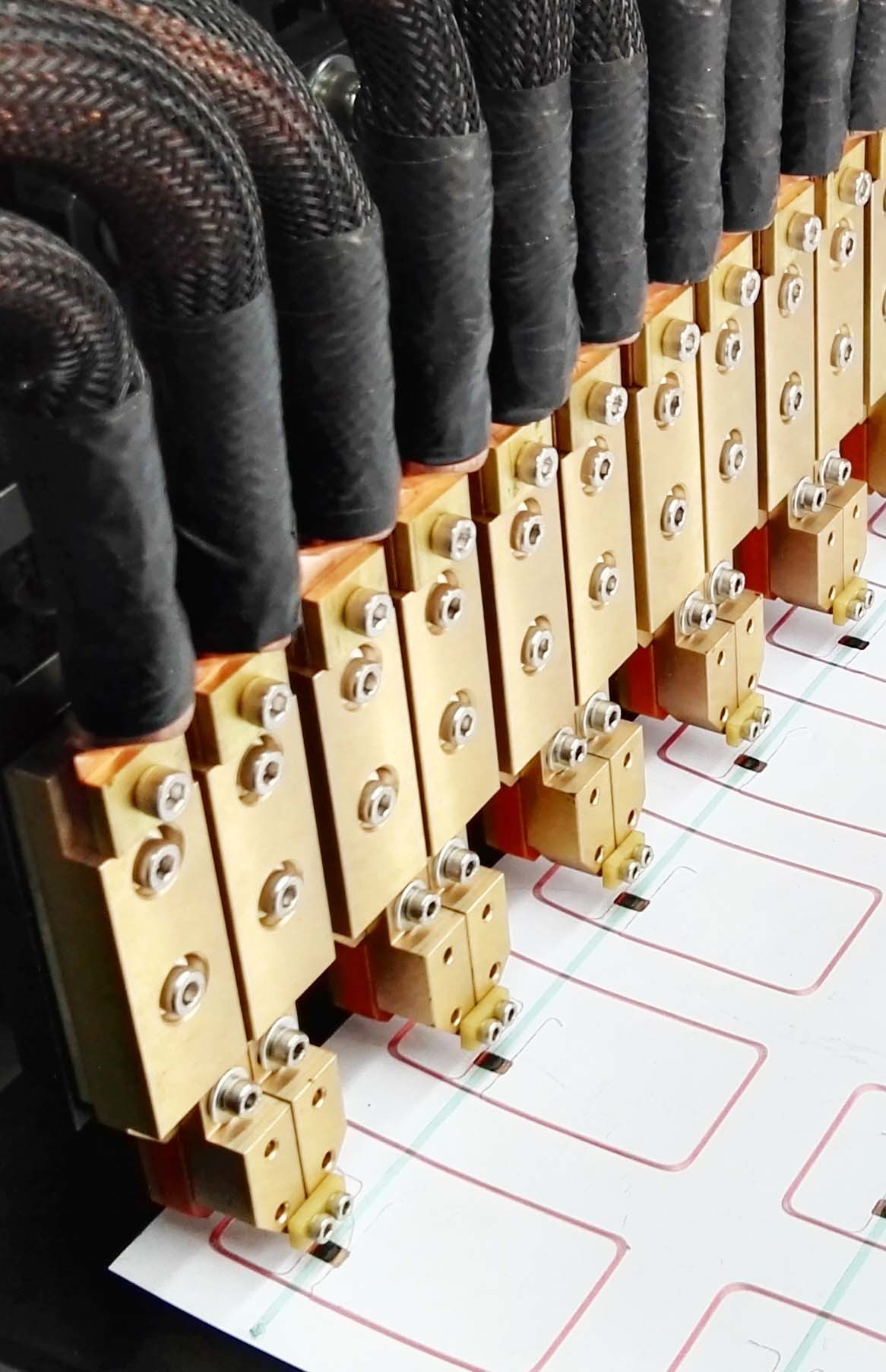

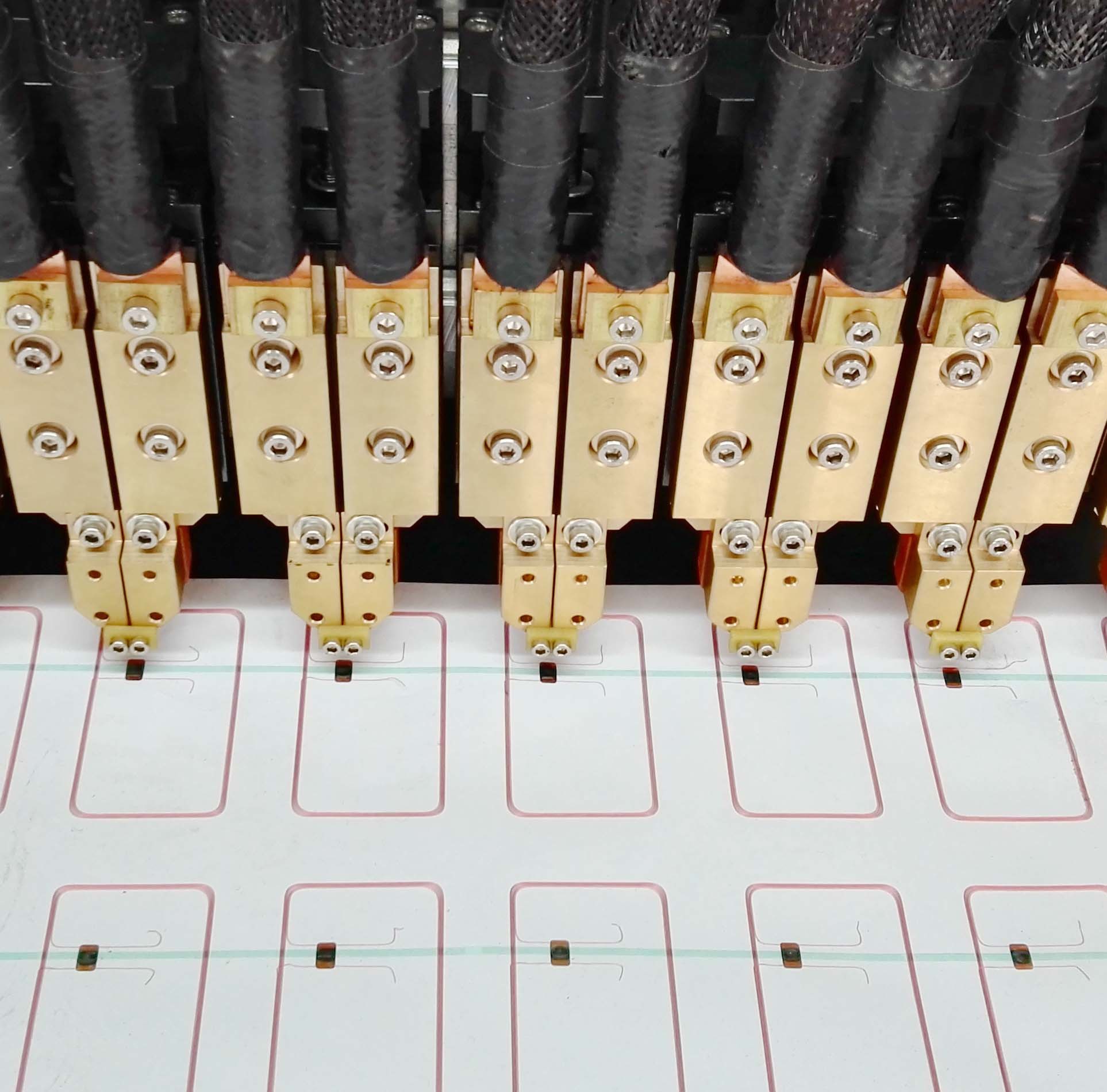

5 welding heads for efficient 5×5 layout processing
High production speed of 2500-3500 units per hour
Exceptional motion precision of 0.0125mm

Technical Parameters

Parameter	Specification
Production Speed	2500-3500 units per hour
Bonding Head Number	5 (5×5 layout)
Motion Precision	0.0125mm
Mechanical Adjustment	0.01mm
Compressed Air	6 kg/cm²
Air Consumption	50 L/min
Power	15KW
Power Supply	AC220V 50/60HZ 100A
Weight	1000 KG
Dimension	L1300×W900×H1700mm

Operational Advantages

The YCB-15 chip welding machine features stable operation with adjustable settings, requiring only one operator. Its user-friendly design simplifies operation and maintenance while extending service life and productivity. The machine's interface prioritizes operator safety, and customization options are available to meet specific client requirements.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YCB-15

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	25-35days
Payment Terms:	D/A, D/P, Western Union, T/T, Western Union
Supply Ability:	1 set per 35 days
