Contactless Card INLAY Sheet Hole Puncher Machine For PVC ABS And PETG Plastic Card

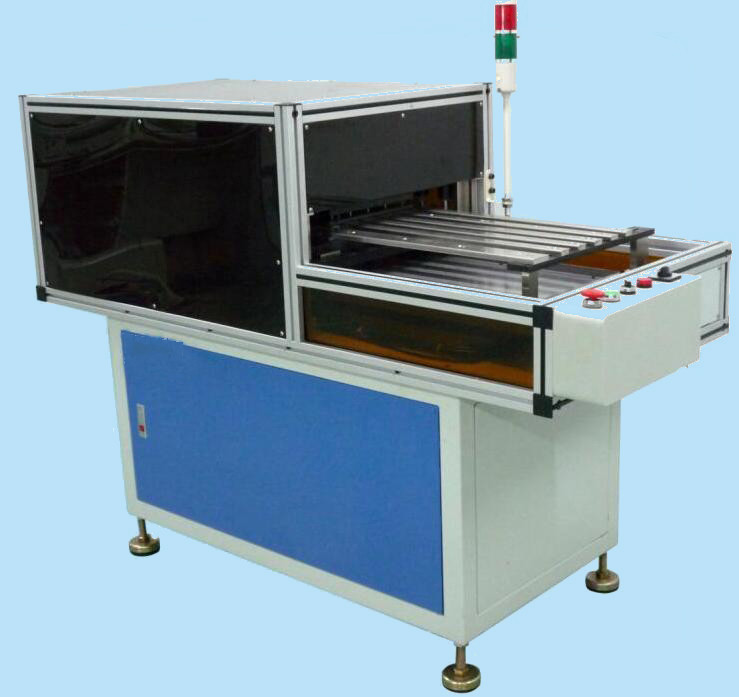

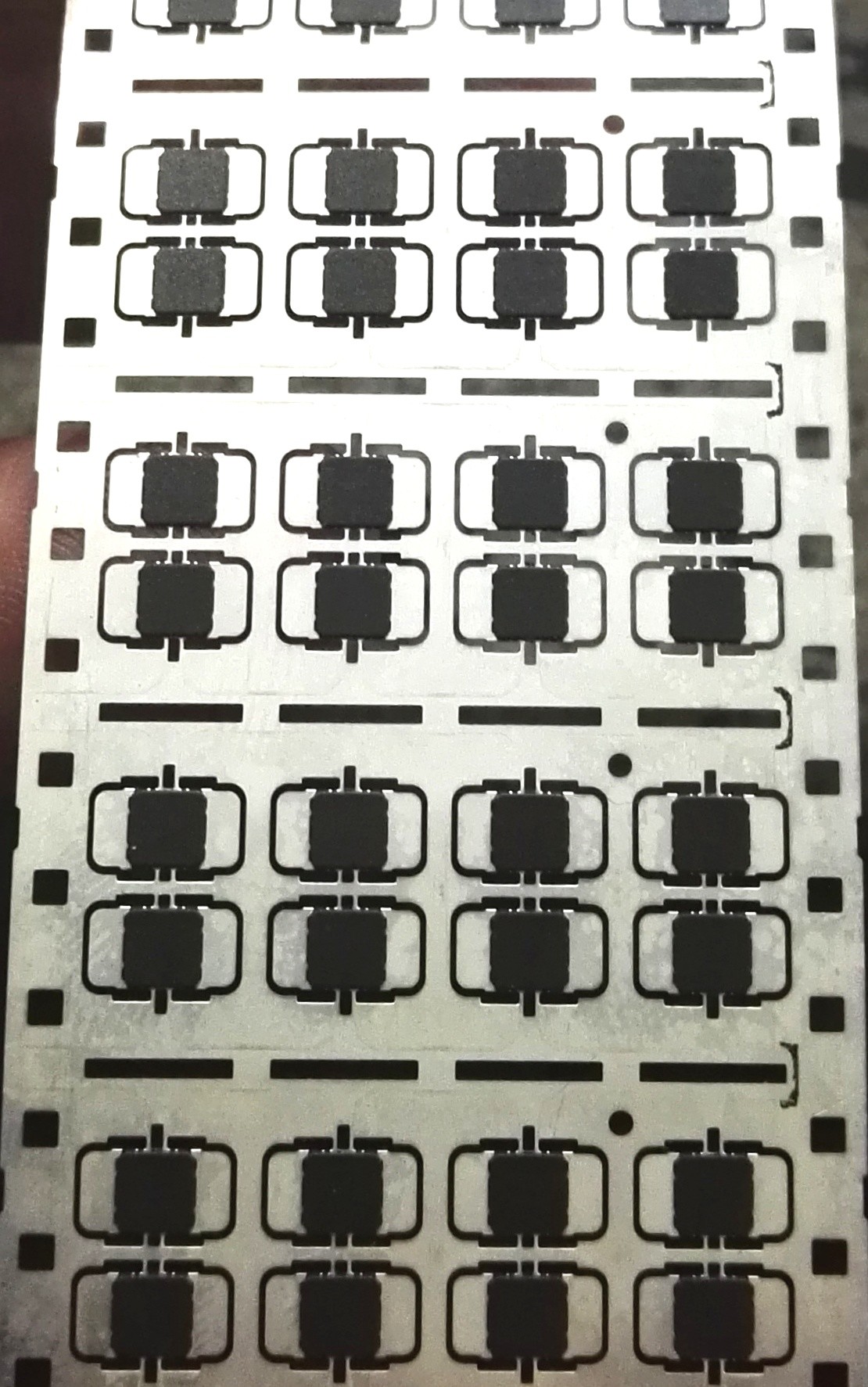

The Contactless Card INLAY Sheet Hole Puncher YHP-A is designed to punch chip fixing holes for installing built-in modules in contactless card INLAY sheet production. With adjustable punching mold positions, it accommodates both standard COB chips (MOA2, MOA4) and smaller MOA8 chips.

This essential component of RFID card production lines is also known as:

• RFID Card INLAY Sheet Hole Puncher
• Automatic Prelam Sheet Hole Puncher
• RFID Card Inlay Sheet Chip Hole Die Cutter YHP-A

• Layout compatibility: 3×8, 4×8, 5×5 configurations
• Material processing: PVC, ABS, and PETG plastic carriers
• Die head options: 3, 4, 5 or 8 die heads available
• Air requirements: 5kg/cm² at 50L/min compressed air
• Production capacity: 300-400 sheets per hour maximum
• Precision: 0.1mm position accuracy

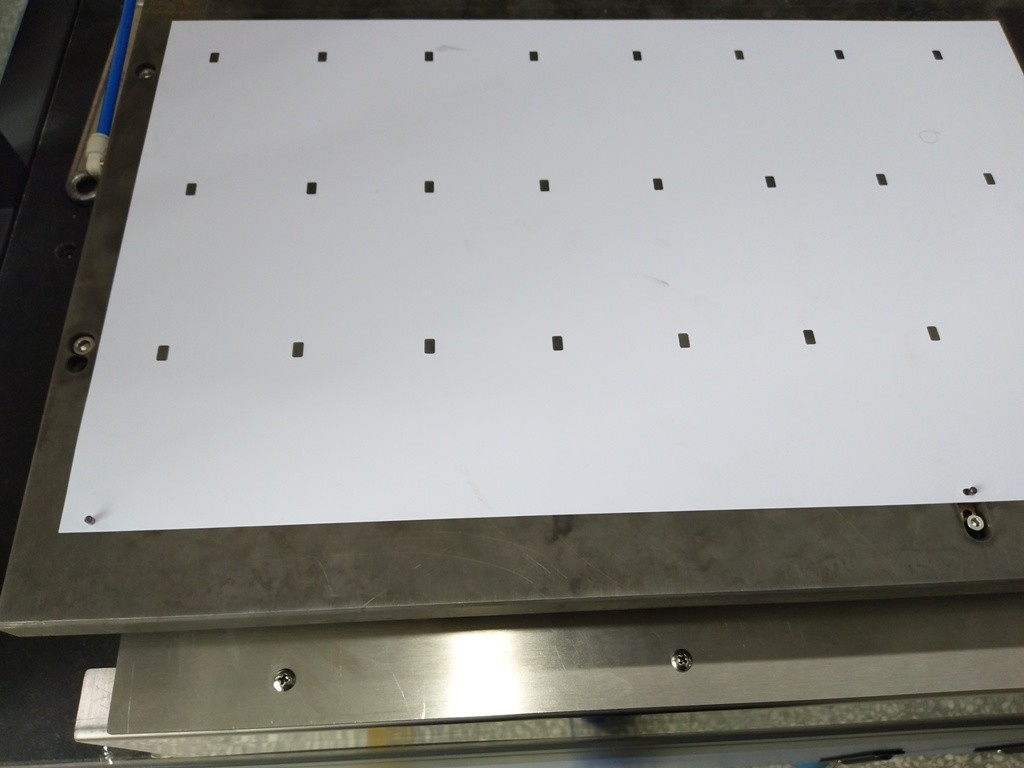

The YHP-A efficiently punches chip fixing holes (such as 24 holes in 3×8 layout) in INLAY middle sheets, enabling mass production of contactless cards with built-in modules.

Typical configuration: 1 set of INLAY Sheet Hole Puncher YHP-A required per production line.
