Name: Plastic RFID Contactless Card Inlay Production Line With 32 Embedding Heads
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YAE-416
Availability: InStock

Detail Information

Sheet Layout:	Different 3×8/4×8/5×5 Etc	Production Speed:	3000-3500 Card Unit Per Hour
Embedding Head:	32 Heads For Various Inlay Layout	Worktable Numbers:	4
Precision:	Servo Step Indexing=0.0125	Mechanical Adjustment Precision:	0.01mm
Highlight:	Plastic Contactless Card Inlay Production Line , Embedding Heads Contactless Card Inlay Production Line

Product Description

Plastic RFID Contactless Card Inlay Production Line With 32 Embedding Heads

Key Specifications

Sheet layout	Different 3×8/4×8/5×5 etc
Production Speed	3000-3500 card unit per hour
Embedding head	32 heads for various inlay layout
Worktable numbers	4
Precision	servo step indexing=0.0125
Mechanical adjustment precision	0.01mm

Machine Description

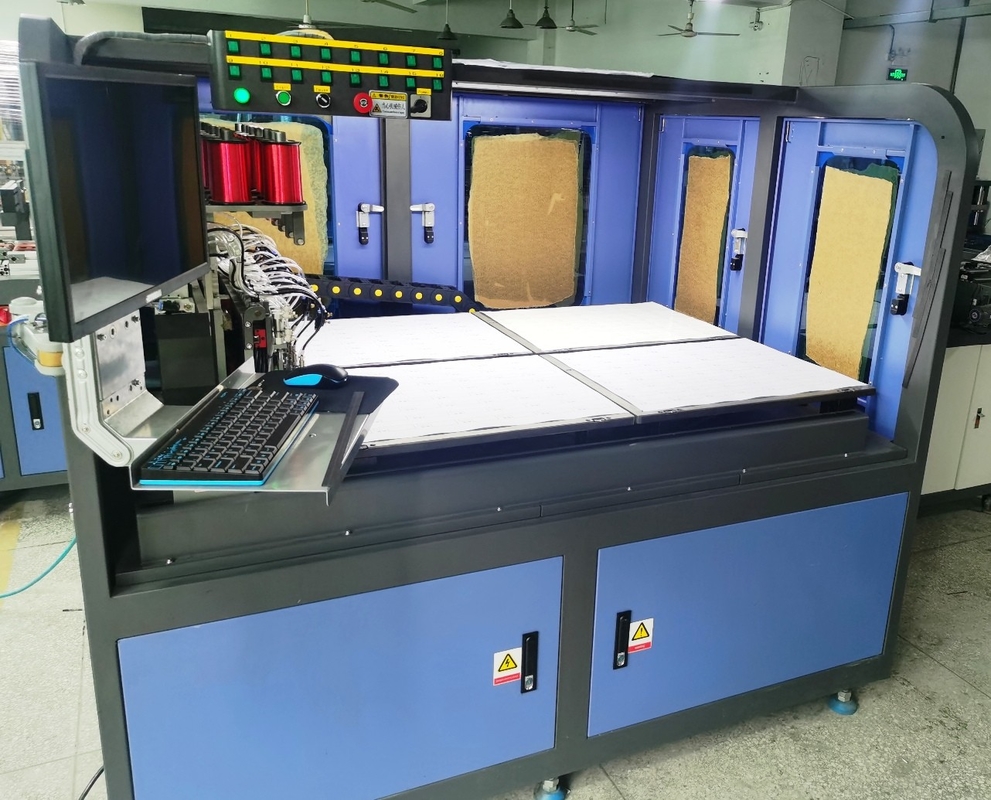

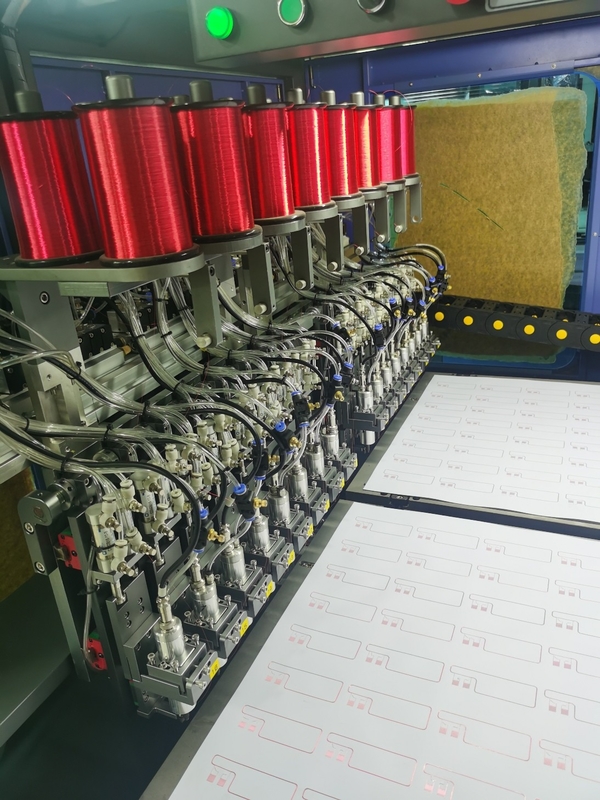

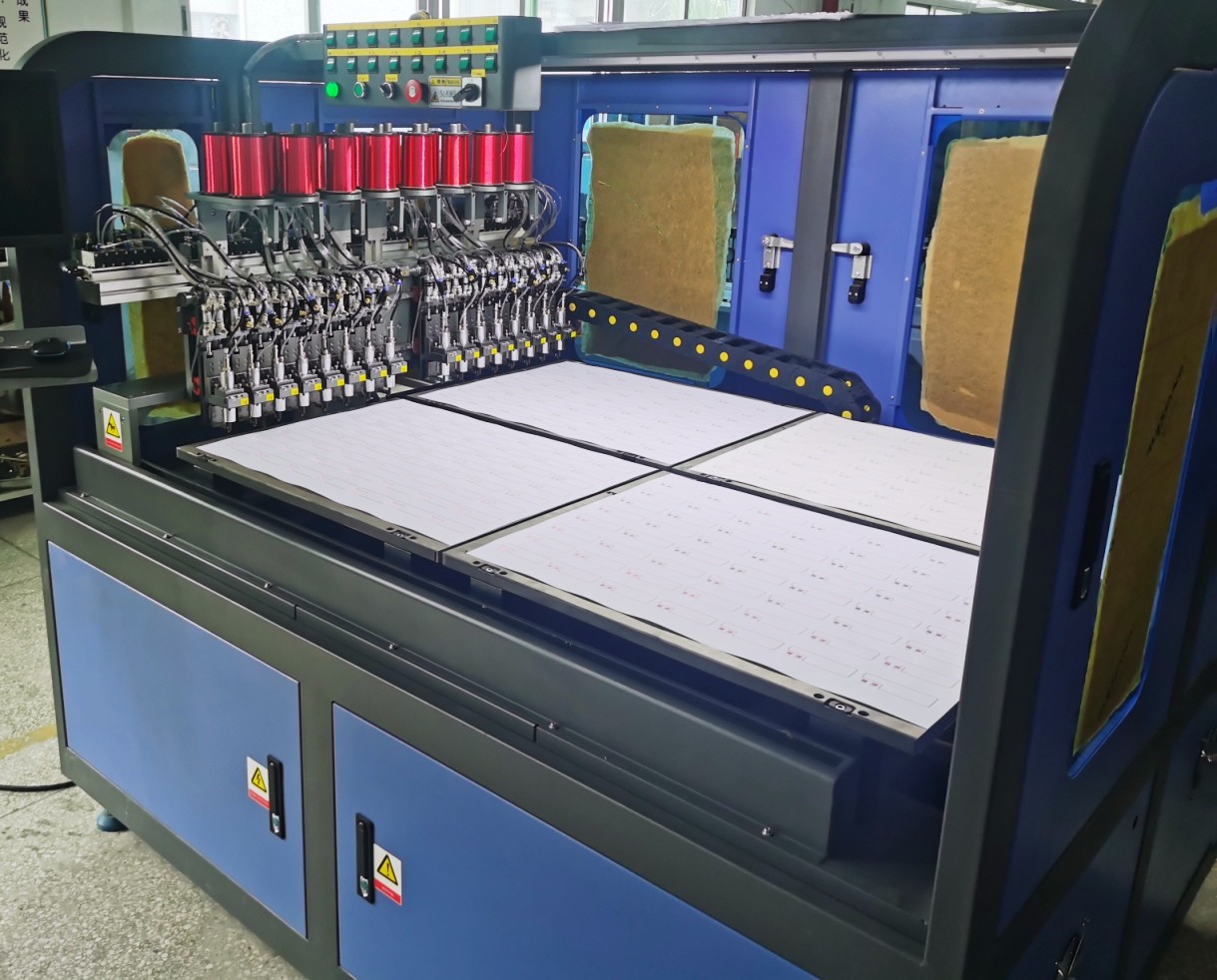

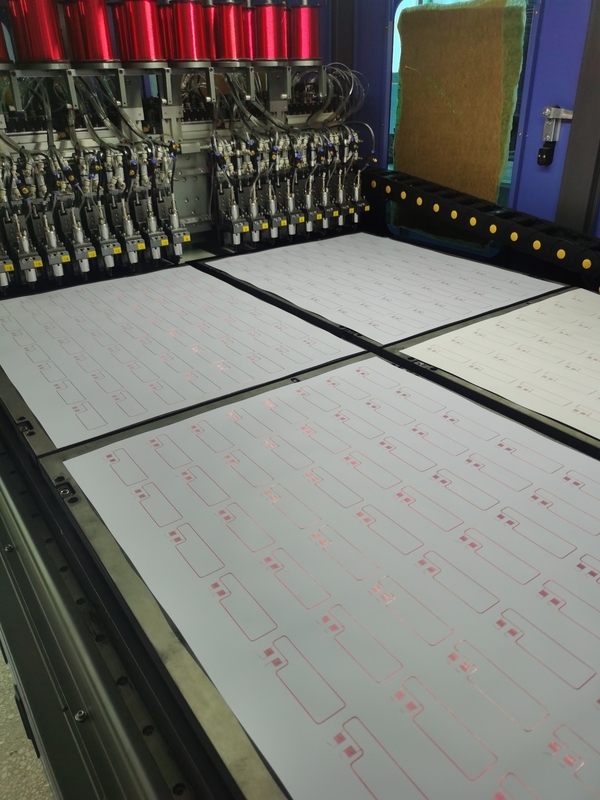

This RFID Card INLAY Antenna Implanting machine (Model YAE-416) is designed for the production and embedding of low frequency and high frequency coils in contactless cards. Utilizing domestic ultrasonic embedding technology, it requires only one operator, reducing labor costs while maintaining product quality.

Key Features

Most reliable and economical solution for INLAY sheet production
Mitsubishi 3-axis servo control with MOXA motion control system for high precision
Antenna design flexibility through AUTOCAD software
Special worktable design accommodates various sheet layouts (3×8/4×8/5×5)
Advanced ultrasonic embedding technology for superior results

Technical Specifications

Parameter	Value
Production Speed	3000-3500 pcs/hour
Embedding Heads	32
Operation Platforms	4 worktables
Dimensions	L1750×W1150×H1600mm
Weight	1500 KG
Power Supply	AC220V 50/60HZ 25A
Power Consumption	3 KW
Precision	0.01mm mechanical adjustment

Model Information

Model NO	YAE-416
Performance Classification	High-End CNC Machine Tools
Processing Precision	0.01~0.02(mm)
Production Capacity	50set/Year
Origin	China

Our Service Commitment

Pre-sale: Professional consultation, model selection assistance, factory visits, and comprehensive product information.

Sale: Production updates, quality supervision, product acceptance, and timely shipping.

After-sale: Installation support, operator training, lifetime technical support, and regular follow-ups.

Warranty

We provide a 1-year guarantee period for our card machines. During this time, we offer efficient remote support and can arrange on-site assistance for complex issues.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YAE-416

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-35days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 set per year
