Name: RFID Card INLAY Production Line Antenna Implanting With 10 Embedding Heads
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YAE-210
Availability: InStock

RFID Card INLAY Production Line Antenna Implanting With 10 Embedding Heads

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YAE-210

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-35days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2 set per month

Get Best Price

Chat Now

Detail Information

Suitable Layout:	5×5 Etc	Production Speed:	3000-3200 Pcs Per Hour
Embedding Head Number:	10 Heads Special For 5*5 Layout	Air Consumption:	120 L/min
Precision:	Servo Step Indexing=0.0125	Power Supply:	AC220V 50/60HZ 25A
Highlight:	RFID Card INLAY Production Line , Embedding Card INLAY Production Line

Product Description

RFID Card INLAY Production Line Antenna Implanting With 10 Embedding Heads

Key Specifications

Attribute	Value
Suitable layout	5×5 etc
Production Speed	3000-3200 pcs per hour
Embedding head number	10 heads special for 5*5 layout
Air Consumption	120 L/min
Precision	servo step indexing=0.0125
Power supply	AC220V 50/60HZ 25A

Product Overview

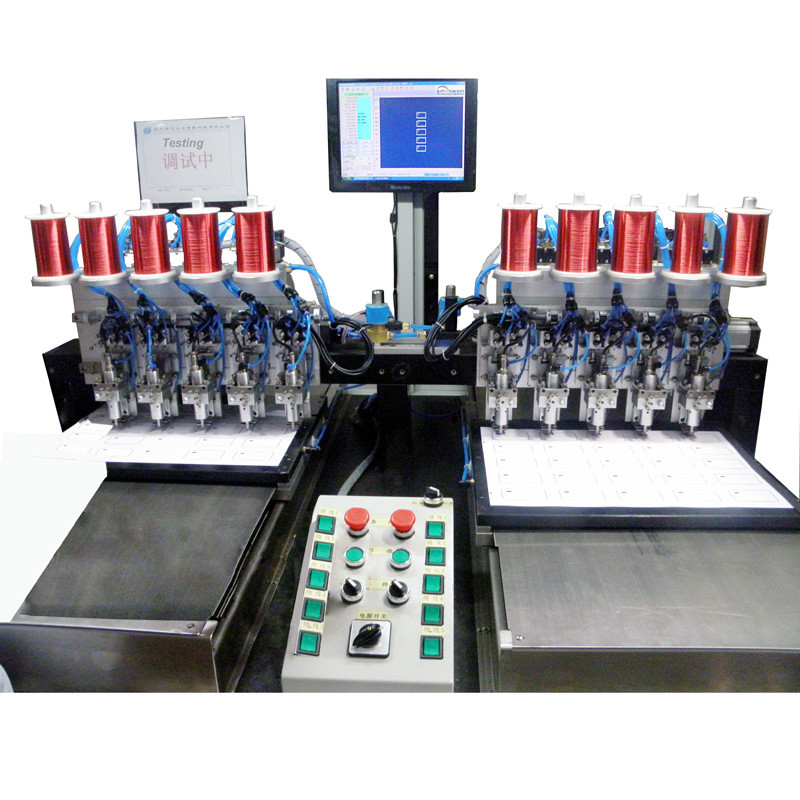

The YAE-210 Antenna Implanting Machine is designed for efficient production of low and high frequency RFID card coils. Utilizing advanced ultrasonic embedding technology, this system requires only one operator, reducing labor costs while maintaining consistent product quality.

Key Features

Most reliable and economical solution for INLAY sheet production
Mitsubishi 3-axis servo control with MOXA motion control system for high precision
Antenna design flexibility through AUTOCAD software
Advanced ultrasonic embedding technology for superior results
User-friendly operation and maintenance design

Technical Specifications

Model NO	YAE-210
Production Speed	3000-3200 pcs/hour
Operation Platform	2 worktables
Dimensions	L1750×W1150×H1600mm
Weight	1500 KG
Power Requirements	AC220V 50/60HZ 25A (3.5KW)
Precision	0.01mm mechanical adjustment

Comprehensive Service Support

Pre-Sale: Professional consultation, machine selection assistance, and factory visit arrangements

During Sale: Quality supervision, production updates, and timely shipping

After-Sale: Installation support, operator training, and lifetime technical assistance
