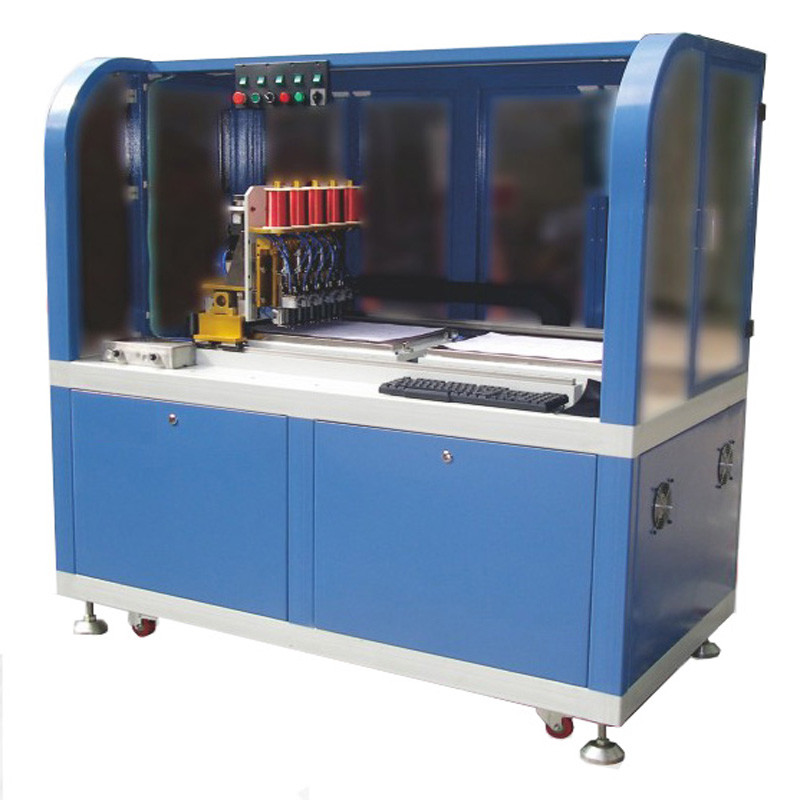

Prelam INLAY Sheet RFID Contactless Card Inlay Production Line Antenna Implanting YAE-28

The Prelam INLAY Sheet Antenna Implanting RFID card INLAY Production Machine YAE-28 is designed for embedding or implanting copper wire onto INLAY middle sheets using advanced ultrasonic technology.

As an essential component of RFID card INLAY production lines, this machine is also known as RFID Card INLAY Sheet Antenna Implanting Machine, RFID Card Prelam Sheet Antenna Implanter, or Contactless Card Copper Wire Embedder YAE-28.

• Recognized as the most reliable and economical solution for INLAY sheet production
• Features Mitsubishi 3-axis servo control and MOXA motion control system for high position precision
• Allows easy antenna shape and size design using AUTOCAD software
• Utilizes advanced ultrasonic technology for superior embedding results and high efficiency

• Working Speed: 2000-2500 pcs per hour

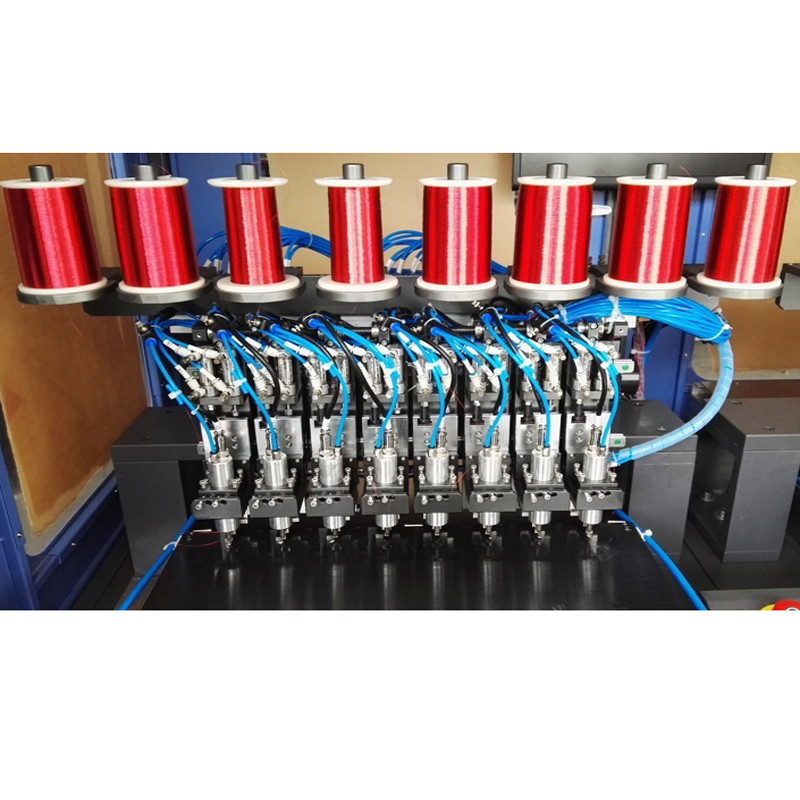

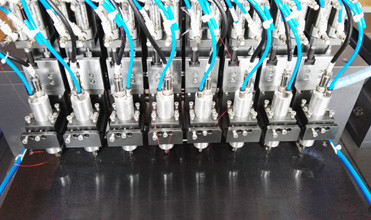

• Embedding head number: 8 heads
• Operation platform: 2 worktables
• Dimension: L1750×W1150×H1600mm
• Weight: 1500 KG
• Compressed air: 6 kg/cm2
• Air Consumption: 100L/min.
• Control mode: MOXA motion control+Mitsubishi servo
• Precision: servo step indexing=0.0125
• Mechanical adjustment precision: 0.01mm.
• Power supply: AC220V 50/60HZ 25A
• Power: 3 KW

The YAE-28 machine automatically embeds or implants designed copper wire antennas onto INLAY middle sheets with precision. Typically, three sheets are laminated together to form one complete INLAY sheet.
