Name: Contactless Card Prelam Speedy Inlay Sheet Antenna Embedding Machine YAE-416
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YAE-416
Availability: InStock

Contactless Card Prelam Speedy Inlay Sheet Antenna Embedding Machine YAE-416

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YAE-416

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	D/P, T/T, D/A, Western Union
Supply Ability:	1 set per 35 days

Get Best Price

Chat Now

Detail Information

Speed:	6000-7000 Cards/hour For Normal Coil, 4000-4500 Cards/hour For DI Card Antenna Coil	Embedding Head Number:	16 Heads Suitable For 38 Or 48 Layout.
Worktable Number:	4 Worktables	Dimension:	L2000×W1150×H1800mm
Control Mode:	PLC+ Industrial Computer	Weight:	1200 KG
Highlight:	Inlay Sheet Antenna Embedding Machine , Inlay Antenna Embedding Machine

Product Description

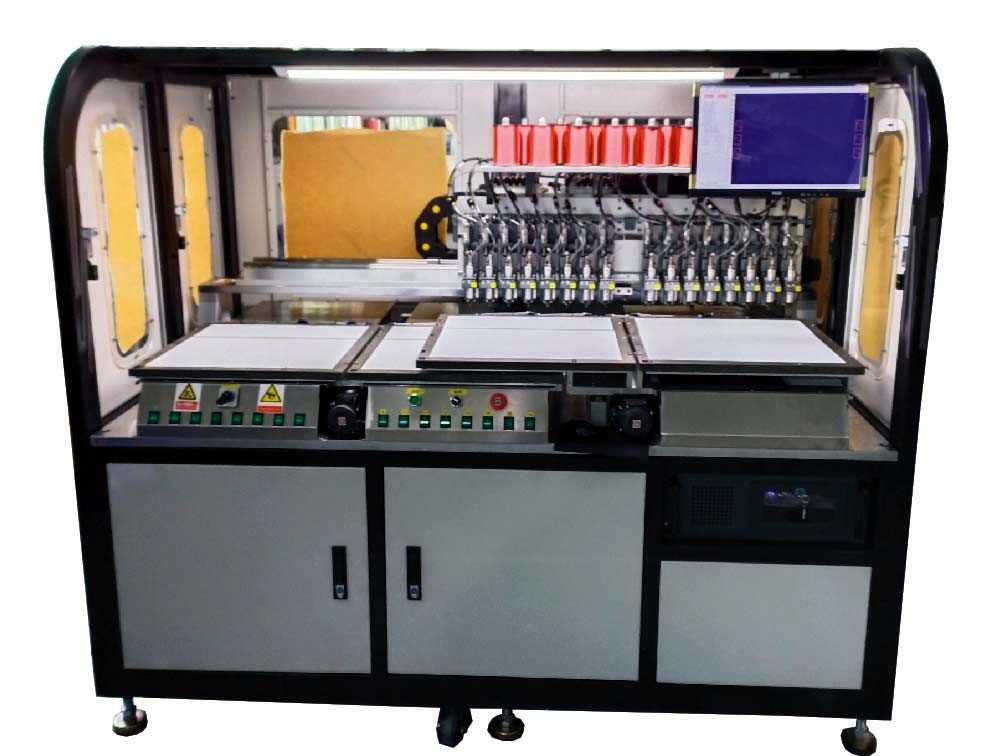

Contactless Card Prelam Speedy Inlay Sheet Antenna Embedding Machine YAE-416

Product Overview

This high-performance machine embeds copper wire onto RFID card INLAY sheets using advanced ultrasonic technology. With 16 embedding heads and 4 work tables, it delivers exceptional efficiency for RFID card production.

Key Features

High-end 3-axis servo control with MOXA motion control system for precision positioning
Antenna design flexibility using AUTOCAD 2004 software
Advanced ultrasonic technology for superior embedding results

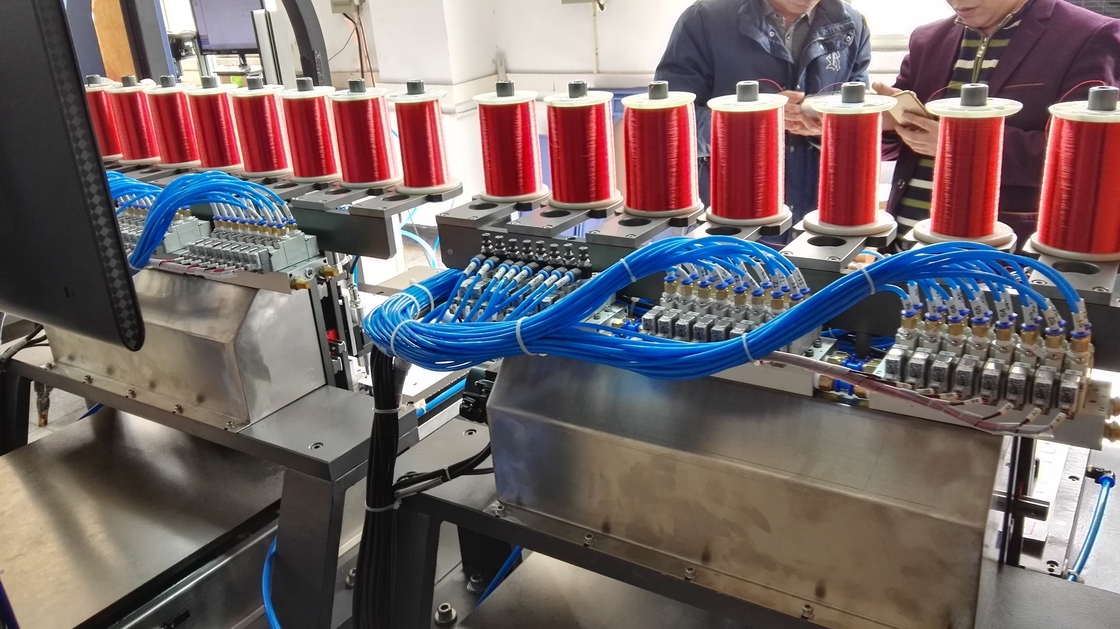

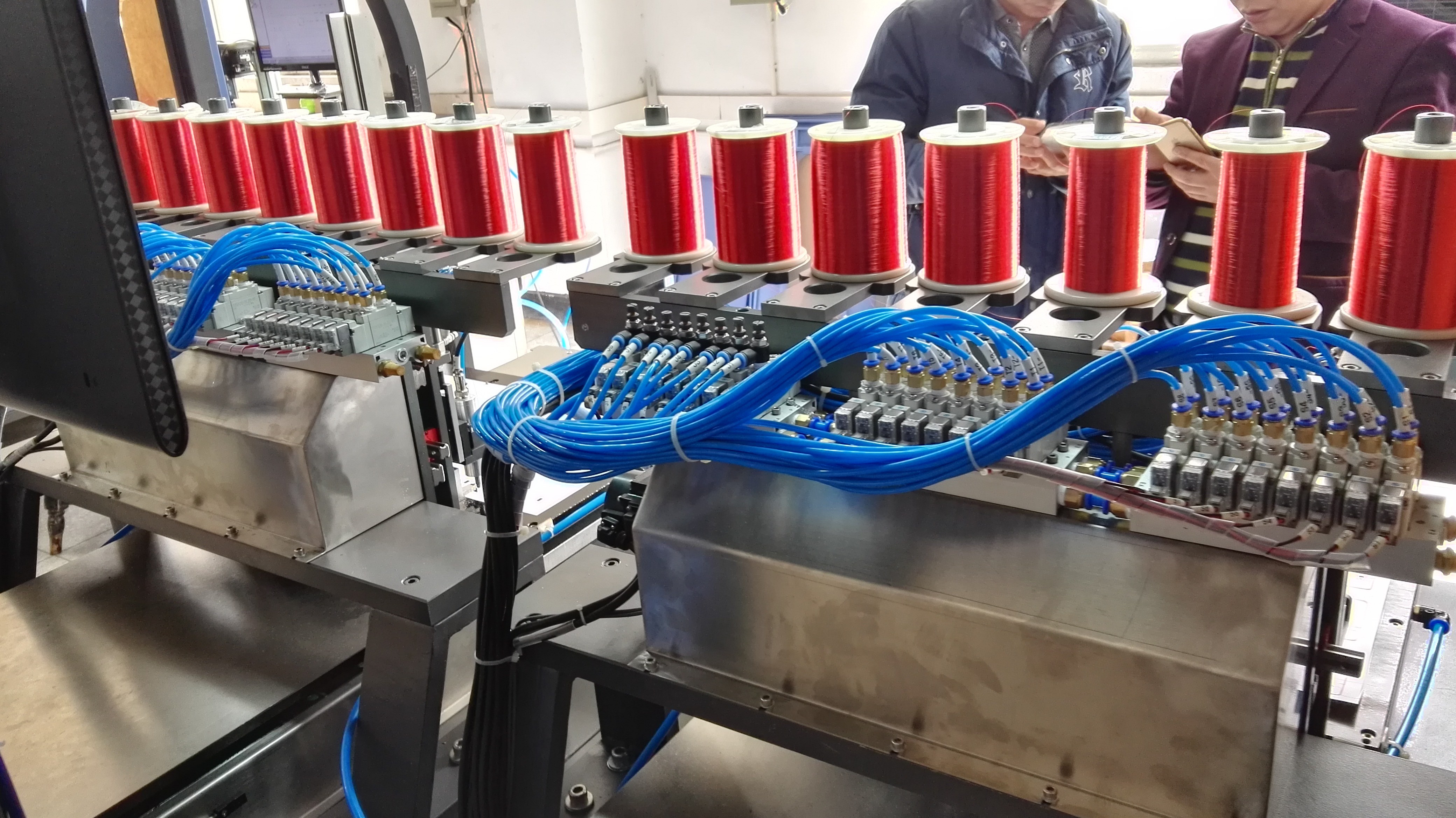

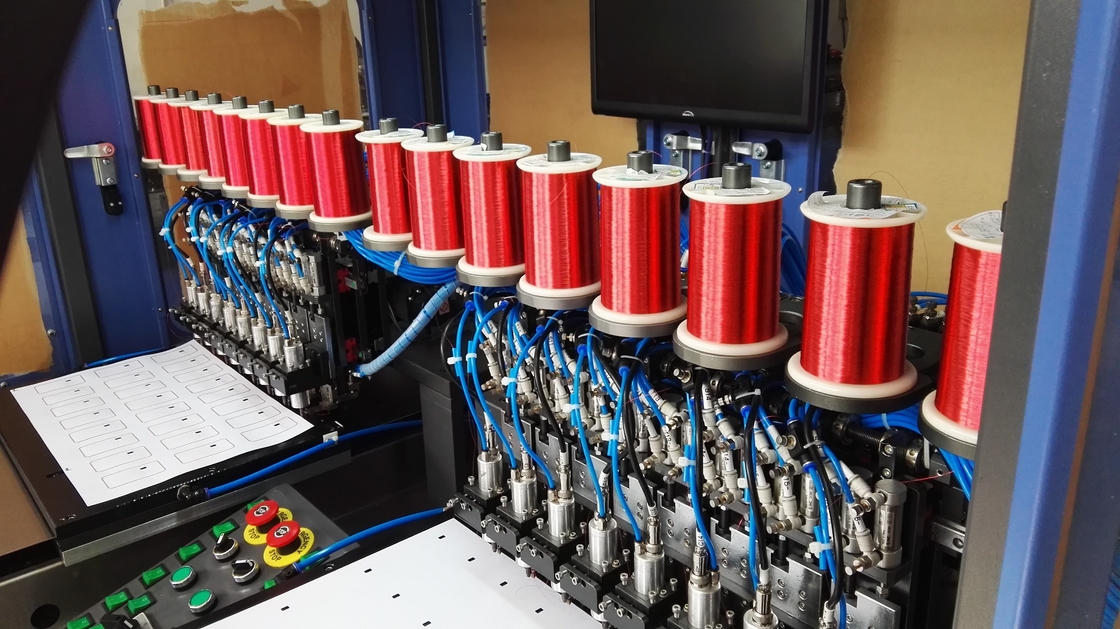

16 embedding heads with 4 work tables for maximum productivity
PLC + industrial computer control system

Technical Specifications

Attribute	Value
Speed	6000-7000 cards/hour (normal coil) 4000-4500 cards/hour (DI card antenna coil)
Embedding Heads	16 heads (3×8 or 4×8 layout)
Worktables	4
Dimensions	L2000×W1150×H1800mm
Weight	1200 KG
Power Supply	AC220V 50/60HZ
Power	4KW
Compressed Air	150L/M, 6 kg/cm²
Control Mode	PLC + industrial computer
Precision	±0.02mm

Applications

Automatically embeds designed copper wire antennas onto INLAY middle sheets with precision. Typically used in the lamination process of three sheets into one INLAY sheet.

Configuration Options

Machine Model: YAE-416 (16 heads/4 work tables for sheet layouts 3×8, 4×8, 6×8 or 7×8)

Production Capacity: 6000-7000 units per hour
