RFID Contactless Card Antenna Embedding Machine PVC Card INLAY Prelam Sheet Production Machine

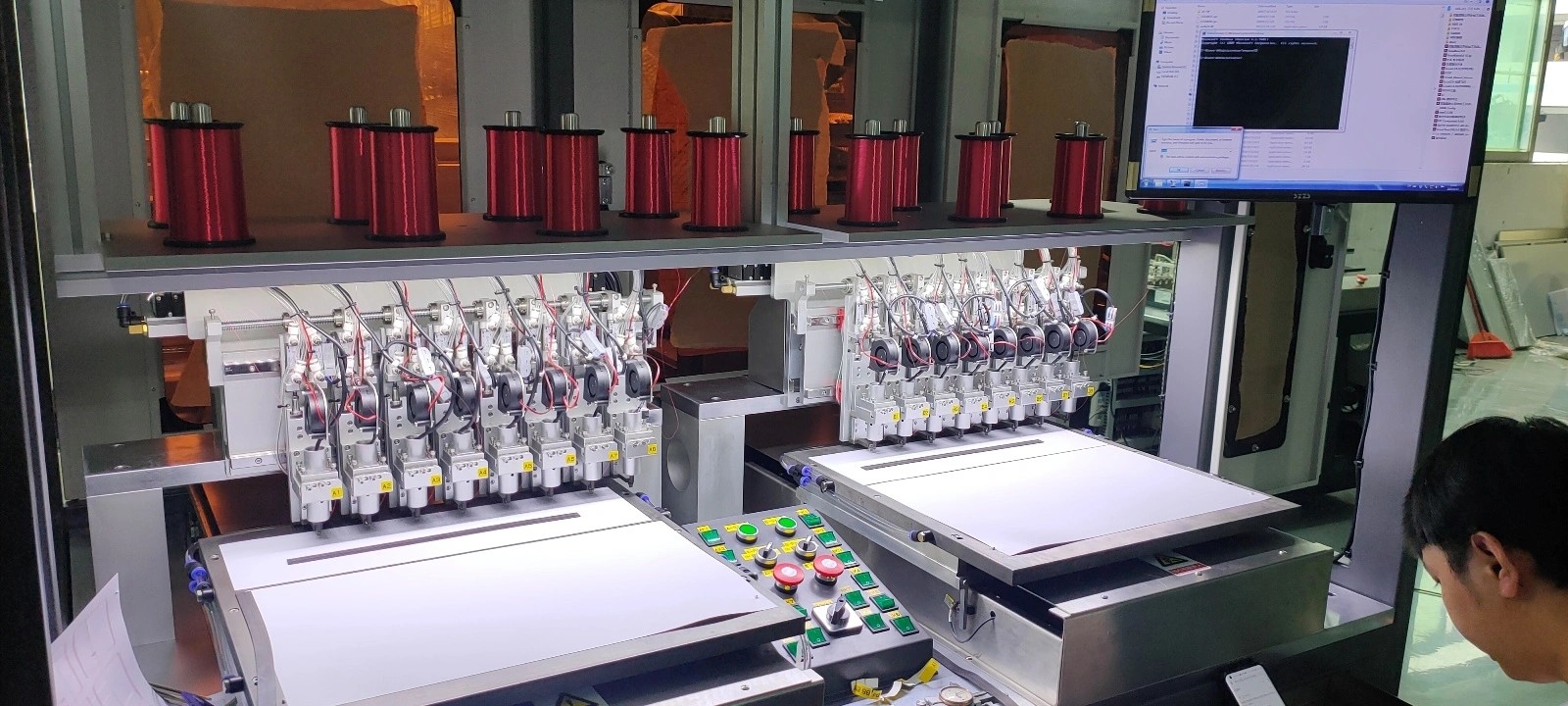

The RFID Card INLAY Prelam Sheet Production Machine YAE-210 is designed for embedding copper wire onto INLAY middle sheets using advanced ultrasonic technology according to precise design specifications.

• Industry-leading reliability and cost-effectiveness for INLAY sheet production
• Precision control system with Mitsubishi 3-axis servo and MOXA motion control
• Flexible antenna design capability through AUTOCAD software
• Advanced ultrasonic embedding technology for superior results and high efficiency

• Production speed: 3000-3200 pieces per hour

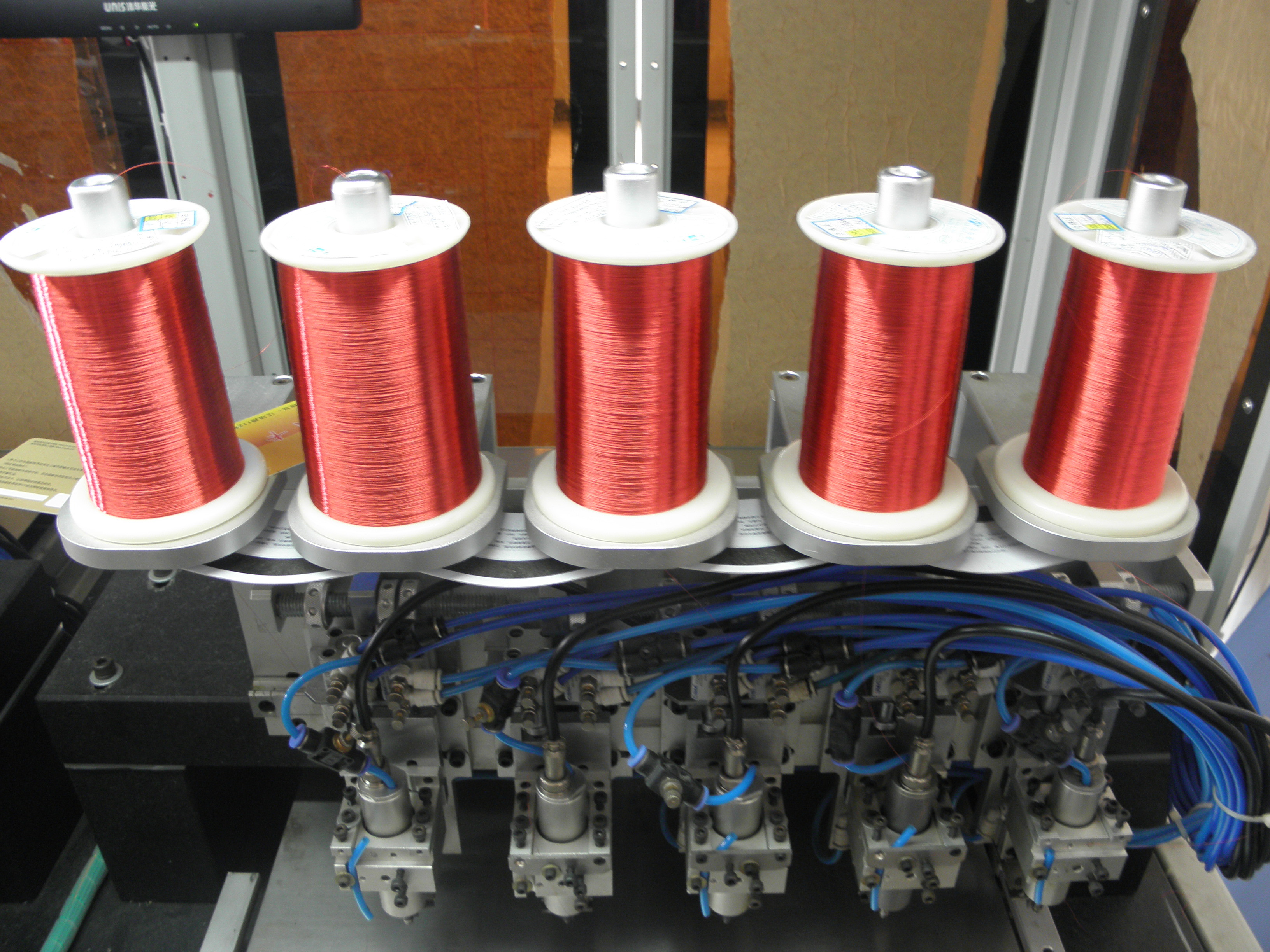

• 10 embedding heads (optimized for 5×5 layout)
• 2 worktables for continuous operation
• Dimensions: 1750 × 1150 × 1600 mm (L×W×H)
• Weight: 1500 kg
• Power requirements: AC220V 50/60Hz 25A
• Power consumption: 3.5 kW
• Compressed air: 6 kg/cm² at 120 L/min
• Precision: Servo step indexing = 0.0125
• Mechanical adjustment precision: 0.01 mm

The YAE-210 is an essential component in RFID card INLAY production lines, also known as:

• RFID Card INLAY Sheet Antenna Implanting Machine
• RFID Card Prelam Sheet Antenna Implanter
• Contactless Card Copper Wire Embedder YAE-210

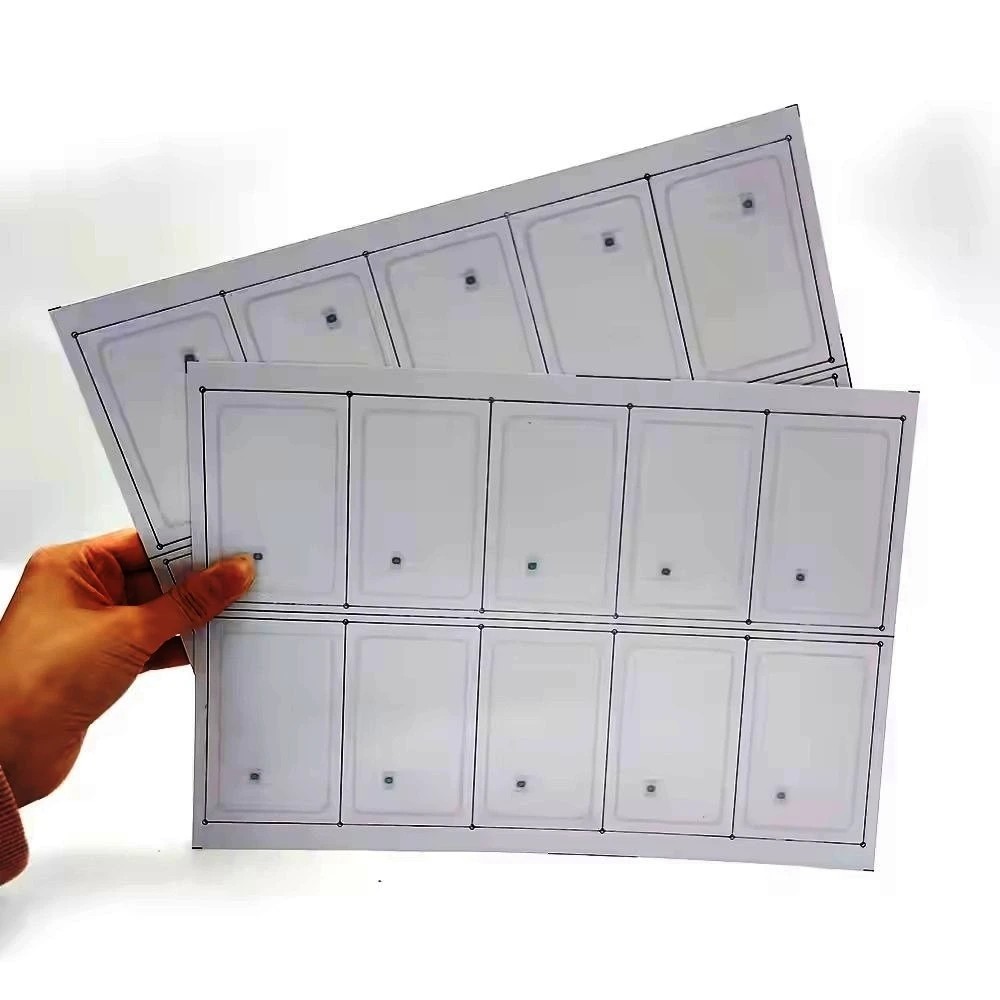

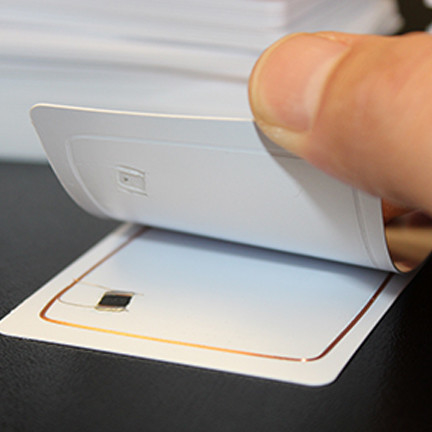

This machine precisely embeds designed copper wire antennas onto INLAY middle sheets, which are then laminated with two additional sheets to complete the INLAY production process.

Model: Contactless Card Antenna Embedding Machine YAE-210 (10 embedding heads/2 work tables for 5×5 sheet layout)

Quantity: 1 set

Production Capacity: 1500-2000 pieces per hour
