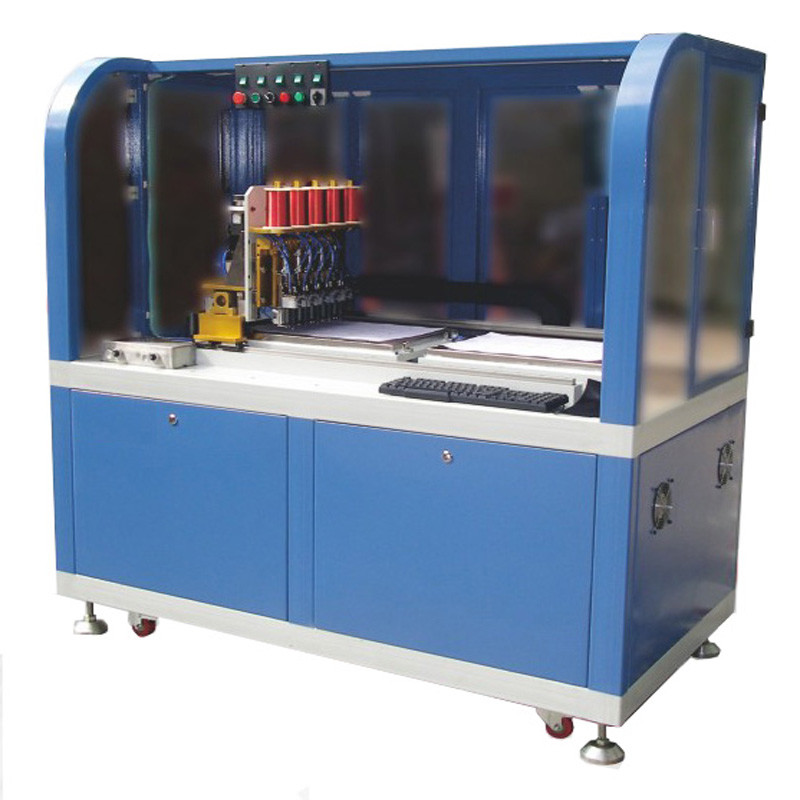

RFID Card Wire Embedder INLAY Sheet Antenna Implanter Contactless Cards Antenna Embedding Machine

This advanced machine is designed for embedding or implanting copper wire onto INLAY middle sheets according to precise design specifications using ultrasonic technology.

• Industry-leading reliability and cost-efficiency for INLAY sheet production
• Precision control system with Mitsubishi 3-axis servo and MOXA motion control
• Flexible antenna design capability through AUTOCAD software integration
• Advanced ultrasonic technology ensures superior embedding results and high efficiency

1. Speed: 2000-2500 pieces per hour

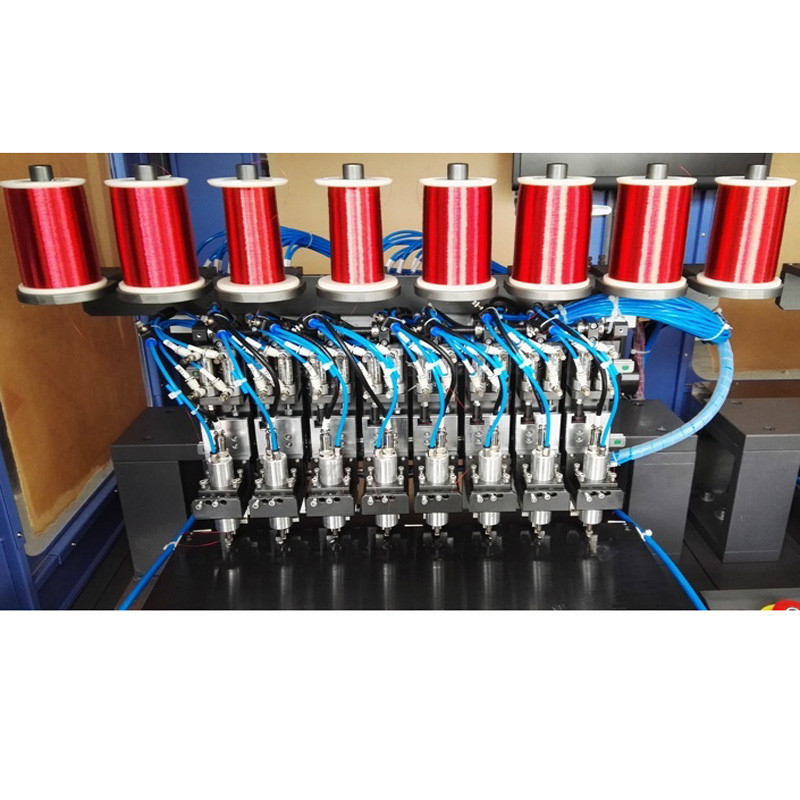

2. Embedding head configuration: 8 heads for 3×8 or 4×8 layout
3. Worktable configuration: 2 worktables
4. Dimensions: L1750 × W1150 × H1600mm
5. Weight: 1500kg
6. Power supply: AC220V 50/60Hz 25A
7. Power consumption: 3KW
8. Compressed air requirement: 6 kg/cm²
9. Air consumption: 100 L/min
10. Control system: MOXA motion control + Mitsubishi servo
11. Precision: Servo step indexing = 0.0125
12. Mechanical adjustment precision: 0.01mm

As an essential component of RFID card INLAY production lines, the YAE-28 is also known as:

• RFID Card INLAY Sheet Antenna Implanting Machine
• RFID Card Prelam Sheet Antenna Implanter
• Contactless Card Copper Wire Embedder YAE-28

The machine precisely embeds or implants designed copper wire antennas onto INLAY middle sheets, which are typically laminated from three separate sheets.

Machine model: Contactless Card Antenna Embedding Machine YAE-28 (8 embedding heads/2 work tables for sheet layout 3×8 or 4×8)

Typical production speed: 1500-2000 pieces per hour
