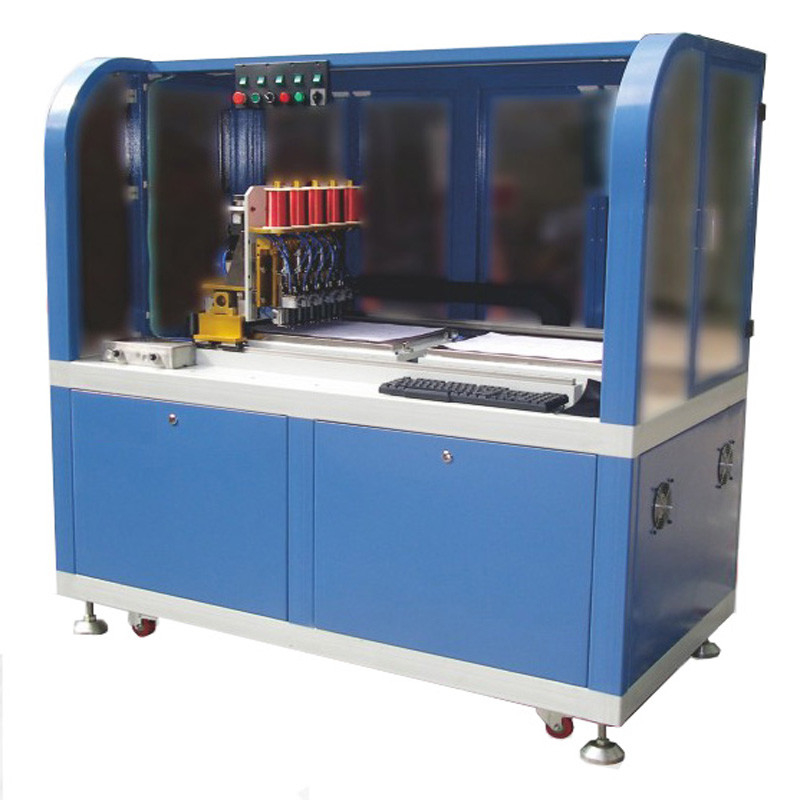

Contactless Card Antenna Embedding Machine RFID Inlay Prelam Line YAE-25

This machine is designed for embedding or implanting copper wire onto INLAY middle sheets according to designed tracks using advanced ultrasonic technology.

• Recognized as the most reliable and economical machine for INLAY sheet production
• Mitsubishi 3-axis servo control and MOXA motion control system ensure high position precision
• Antenna shape and size can be easily designed in AUTOCAD software
• Advanced ultrasonic technology ensures excellent embedding results and high efficiency

As an essential component of RFID card INLAY production lines, the YAE-25 is also known as:

• RFID Card INLAY Sheet Antenna Implanting Machine
• RFID Card Prelam Sheet Antenna Implanter
• Contactless Card Copper Wire Embedder YAE-25

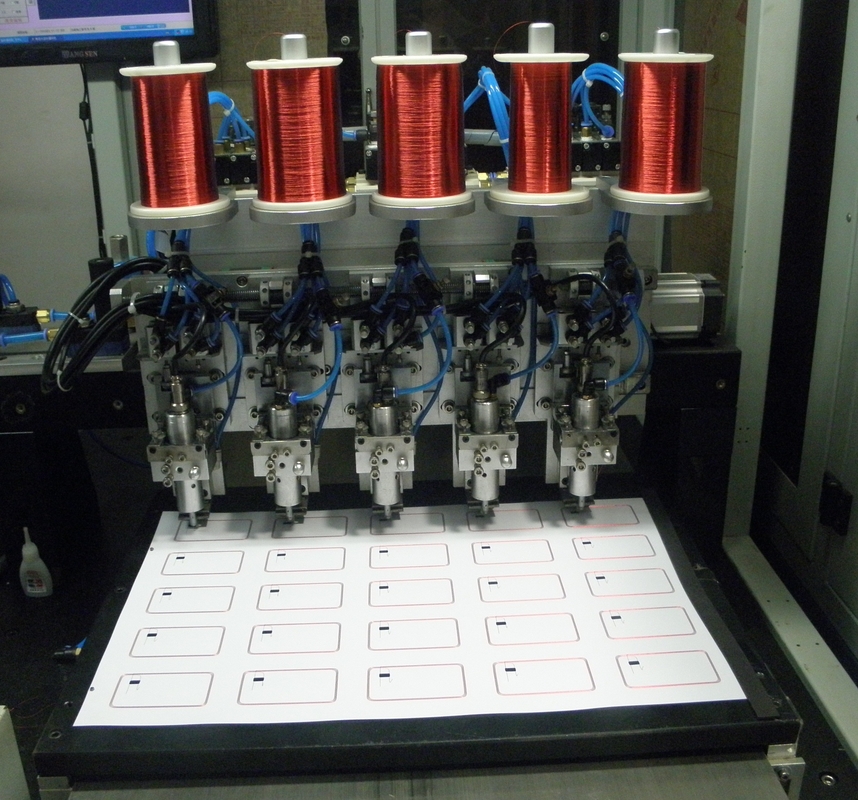

The machine automatically embeds or implants designed copper wire antennas onto INLAY middle sheets with precision. Typically, three sheets are laminated into one INLAY sheet.

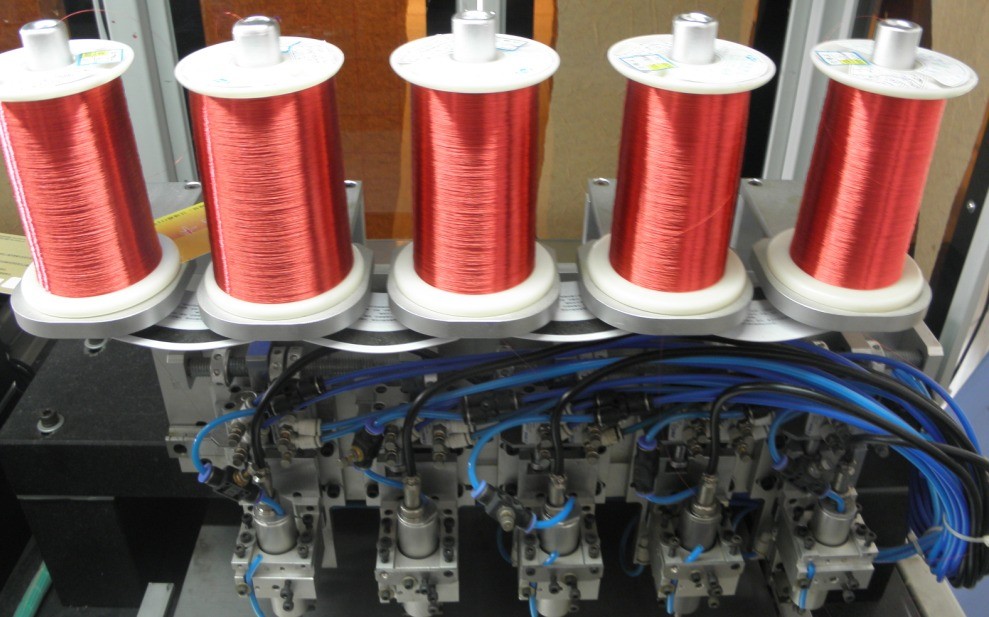

Machine model needed: Contactless Card Antenna Embedding Machine YAE-25 (5 embedding heads/2 work tables for sheet layout 5×5)

Machine quantity needed: 1 set

Production speed: 1500-2000 pcs per hour
