Contactless Card Inlay Antenna Embedding Machine RFID Card INLAY Sheet Antenna Machine

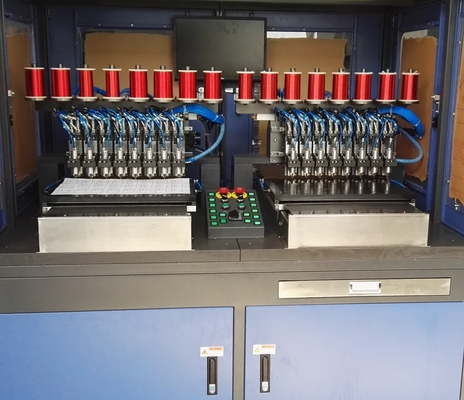

The Contactless Card Antenna Embedding Machine YAE-216 is designed for embedding or implanting copper wire onto INLAY middle sheets using advanced ultrasonic technology.

As an essential component of RFID card INLAY production lines, this machine is also known as:

• RFID Card INLAY Sheet Antenna Implanting Machine
• RFID Card Prelam Sheet Antenna Implanter
• Contactless Card Copper Wire Embedder YAE-216

• Most reliable and economical solution for INLAY sheet production
• Mitsubishi 3-axis servo control with MOXA motion control system for high position precision
• Antenna shape and size can be easily designed in AUTOCAD software
• Special worktable design accommodates various sheet layouts (3×8/4×8/5×5)
• Advanced ultrasonic technology ensures excellent embedding results and high efficiency

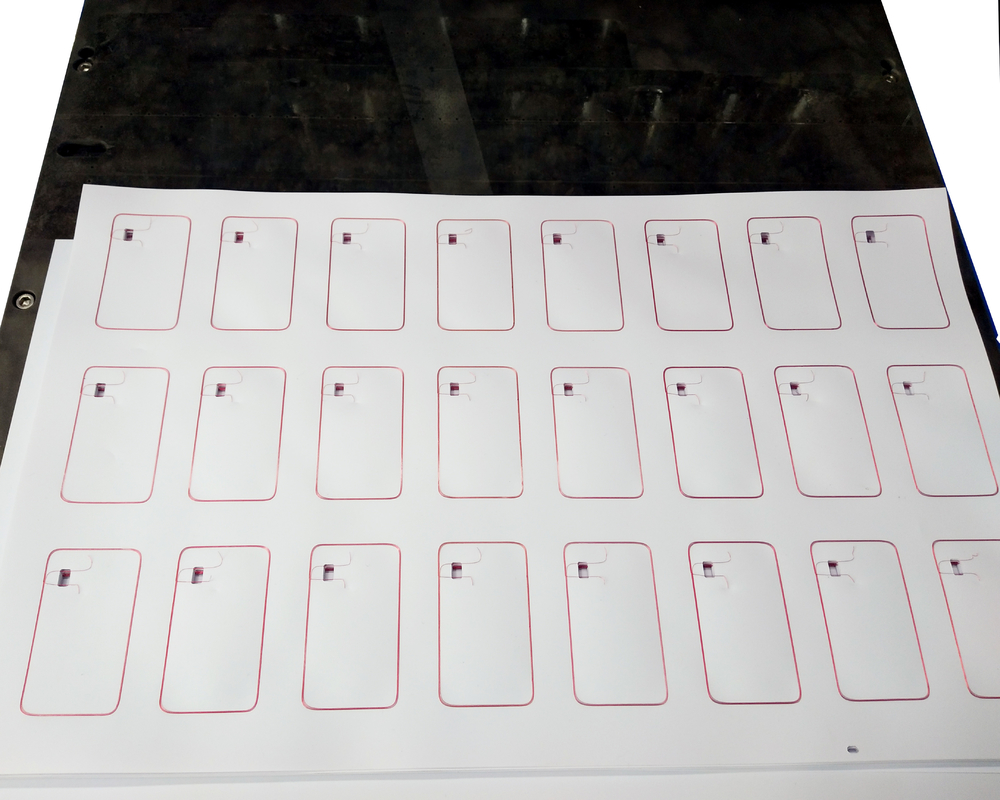

Automatically embeds or implants designed copper wire antenna onto INLAY middle sheets with precision. Typically used when three sheets are laminated into one INLAY sheet.

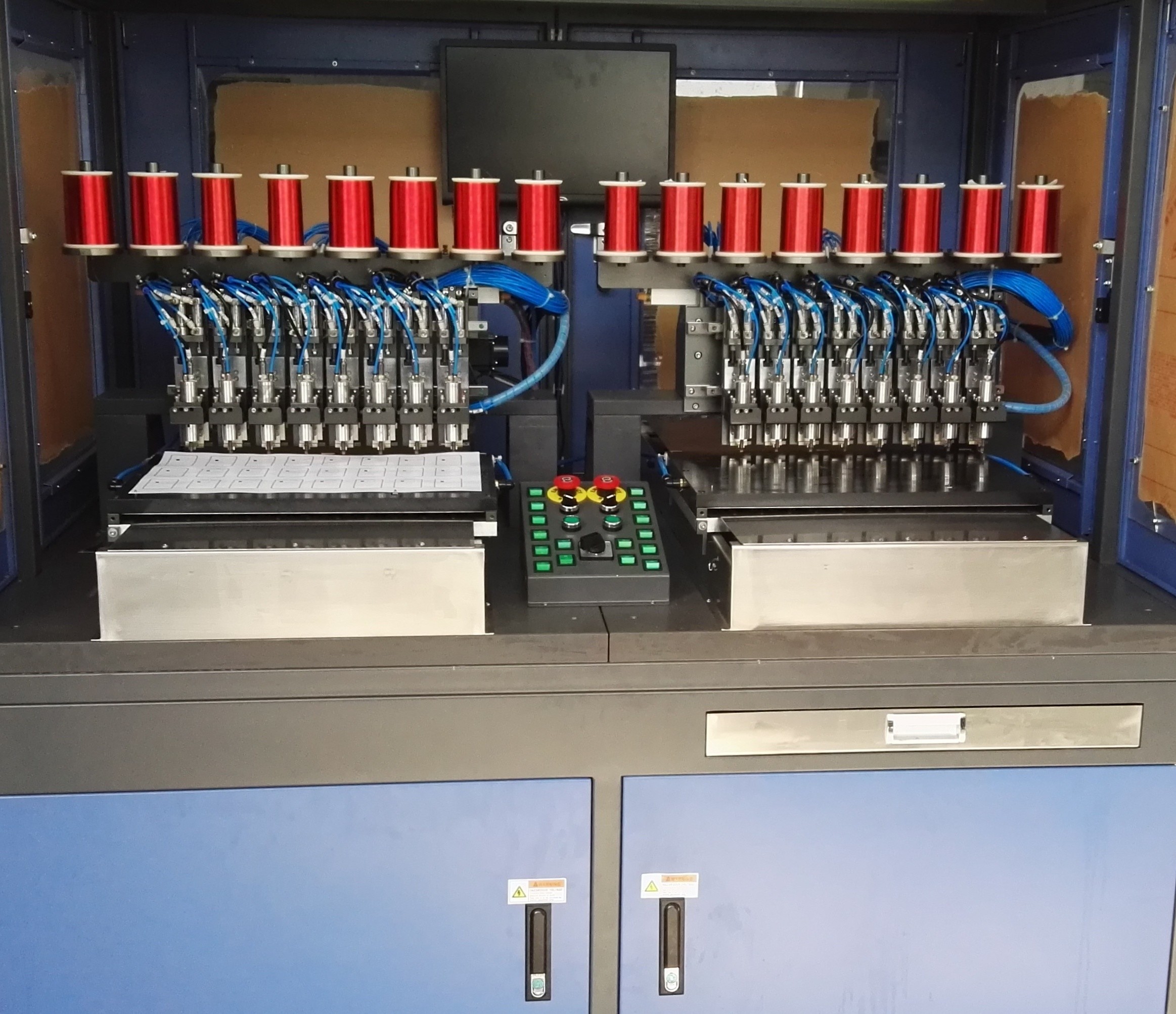

Machine model needed: Contactless Card Antenna Embedding Machine YAE-216 (8 embedding heads/2 work tables for sheet layout 3×8,4×8,5×5)

Machine quantity needed: 1 set

Production speed: 3000-3500 units per hour
