Automatic Plastic Identity Card Lamination Machine 600x730 For 7x8 Layout Or Less Size

                   Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

                                  Plastic Card Laminator YLL-27C 600*730

1. Introduction of Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

Automatic tray moving from hot tower to cold tower after hot lamination finished, manual tray feeding and removing, template size 600*730mm for 7*8 layout or less size, 2 towers, 7 openings for each, 4 cylinders for each tower, PLC controlled, designed for smart card or RFID Card INLAY lamination

2. Key Features of Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

• It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
• It can realize automatic tray moving from hot tower to cool tower after the hot lamination operation is finished.
• pressure supply is realized by two motors and two oil pumps for very high reliability;
• Automatic lamination parallelism adjustment is available.
• The pressure and temperature control module is applied to ensure higher control precision.
• If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
• The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

3. Technical Parameter of Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

1). PVC sheet layout: 6×8 5×5, 3×8, 4×8,7×8

2). Laminating template size and material: 600×730mm, aluminum alloy

3). Hydraulic cylinder number: 4 cylinders (diameter 125mm) for each tower

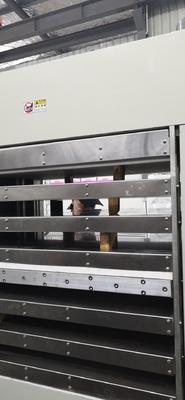

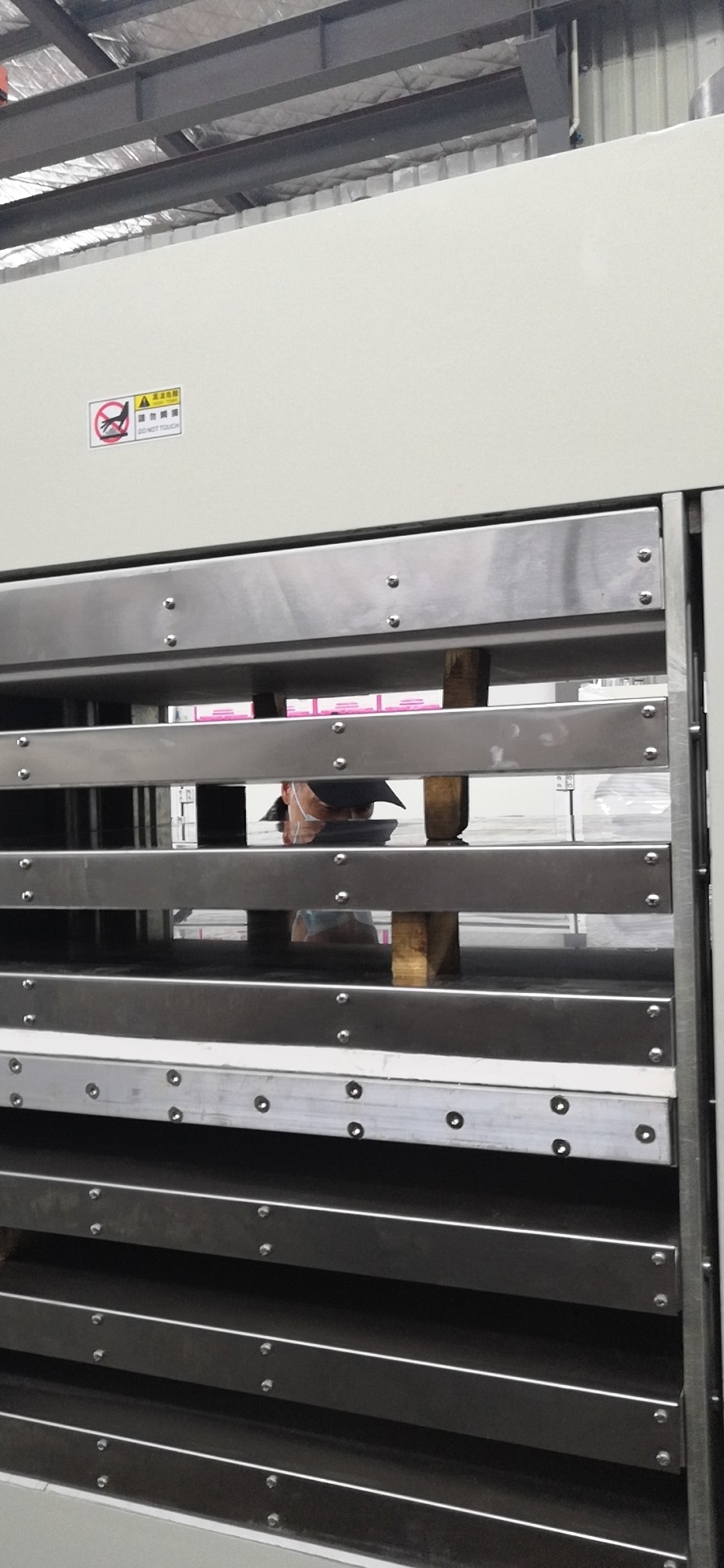

4). Daylight number/distance: 7 daylights, 2 tower/50mm

5). Control mode: PLC

6). Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)

7). Temperature control precision: +/-1℃

8). Heating temperature: ≤200℃

9). Power: 23 KW (Maximum)

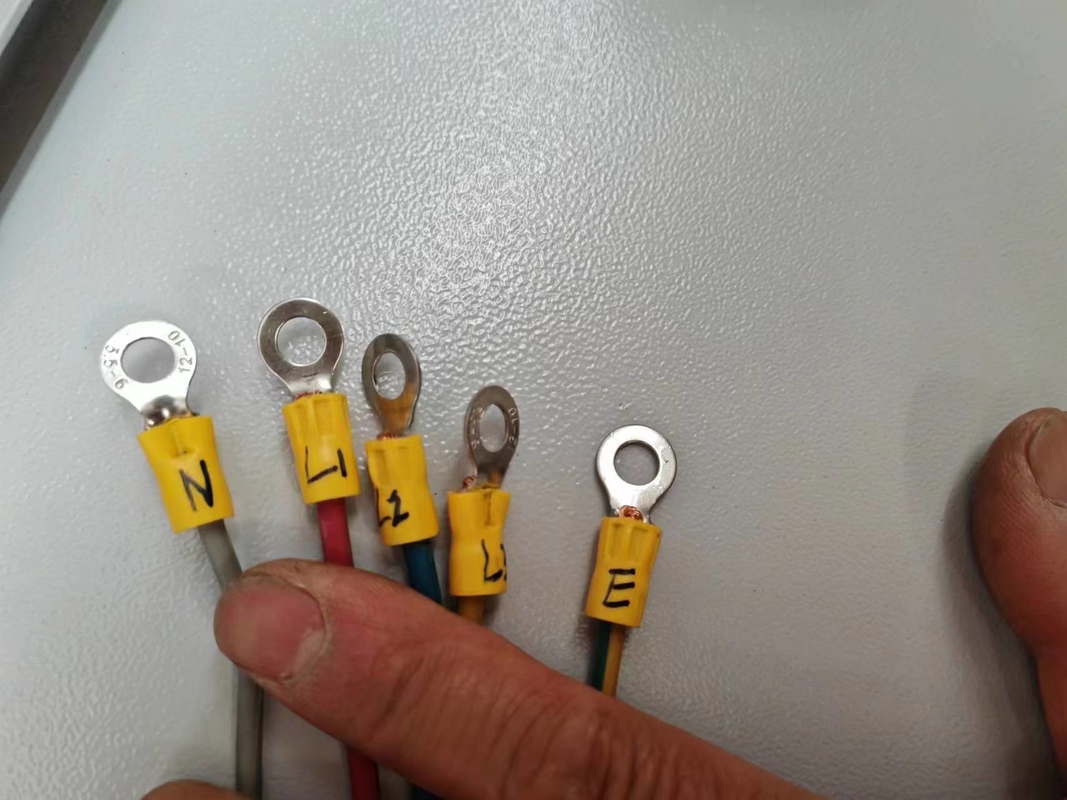

10). Power supply: AC380V 50/60HZ 3 phase 5 wires

11). Dimension: 2500mm×1200mm×1850mm

12). Gross weight: 3400 kg.

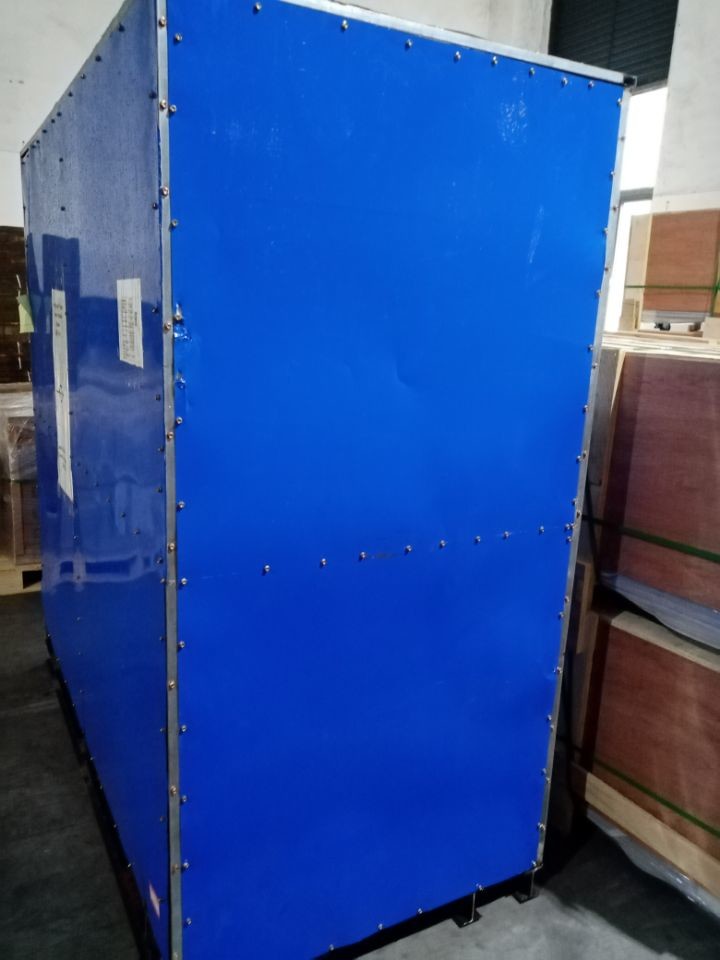

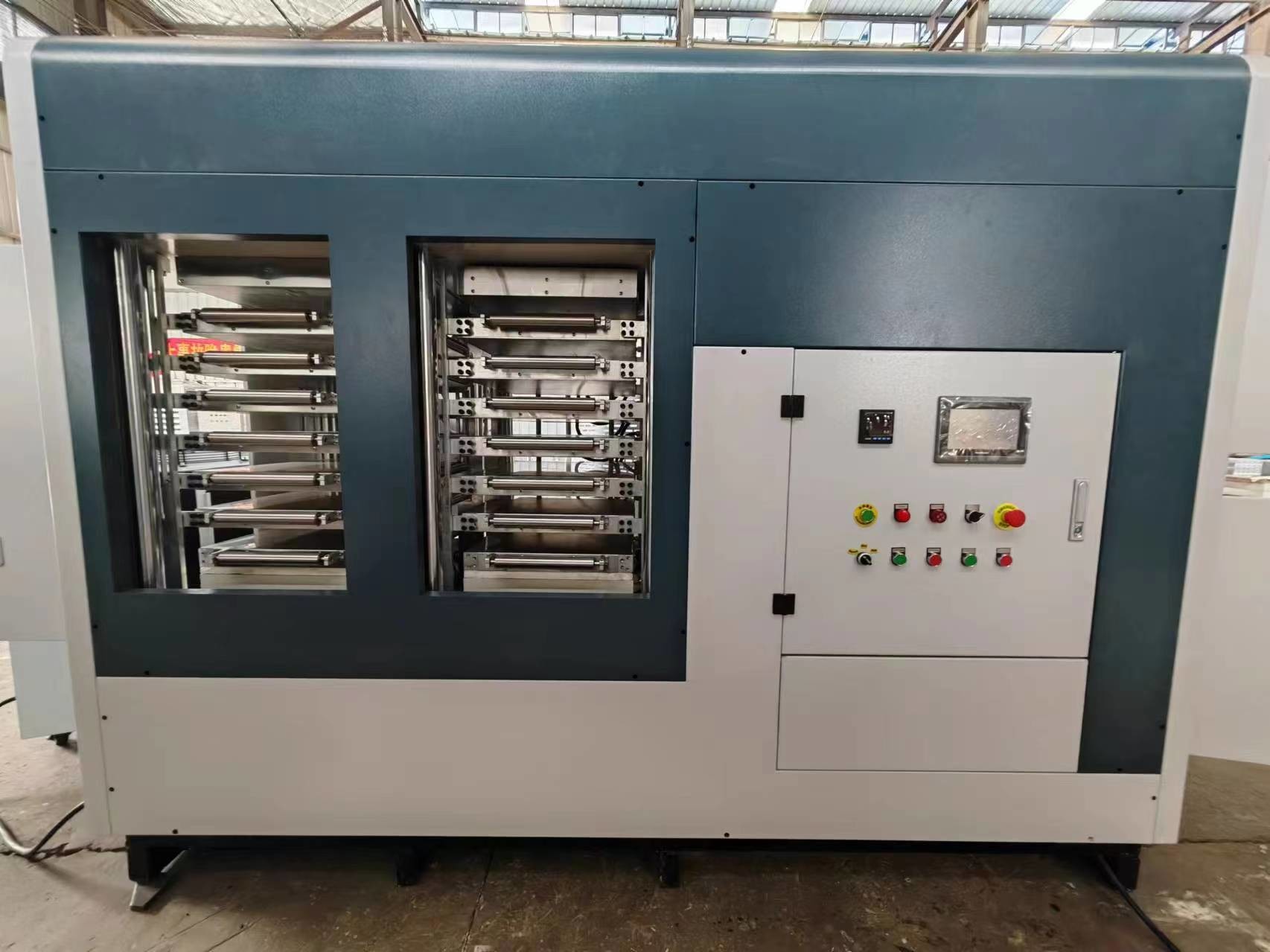

4. Details of Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size
