Semi-auto Plastic Card Laminating A4 PVC Sheet Pressing Machine Solid Relay YLL-16A4
1. Introduction of Semi-auto Plastic Card Laminating A4 PVC Sheet Pressing Machine Solid Relay YLL-16A4

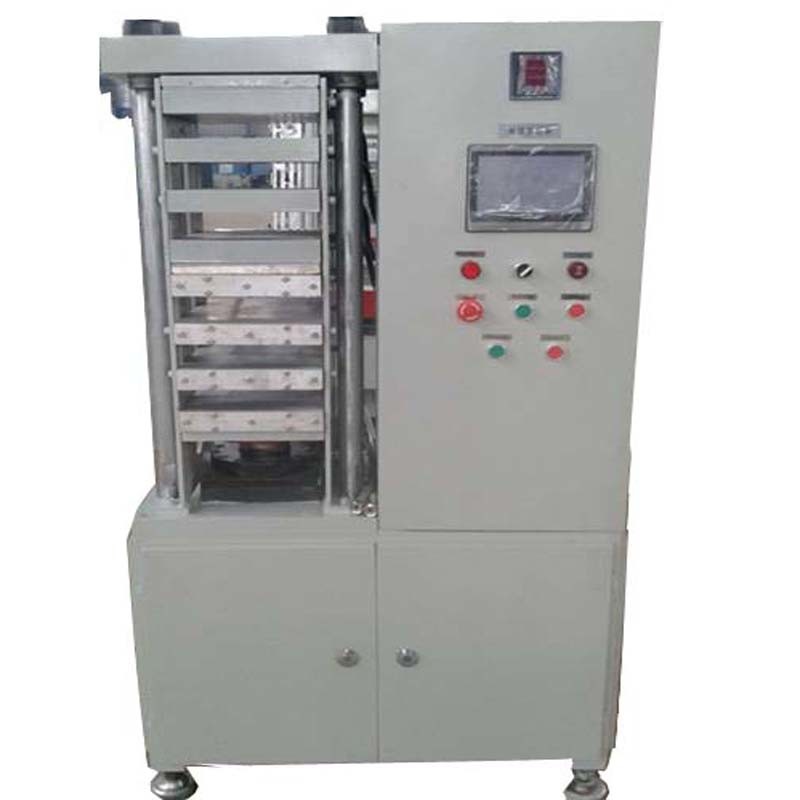

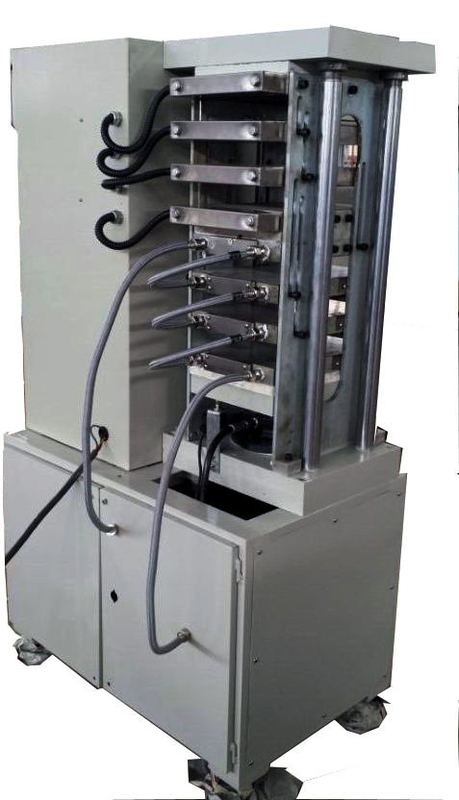

Plastic Card Laminator YLL-16A4 is designed to laminate the A4 bonded PVC sheet assembly into the thicker PVC sheets to be punched. It has one tower with 3 hot openings and 3 cooling openings. Plastic Card Laminator YLL-16A4 is also named as Smart Card Pressing Machine or Card Laminating Machine YLL-16A4.
The China's 2nd Generation ID card which is the biggest ID card project in the world has adopted our mature lamination solutions. This machine occupied the major market share in China card manufacturing field.
2. Features of Semi-auto Plastic Card Laminating A4 PVC Sheet Pressing Machine Solid Relay YLL-16A4
- It is controlled by solid relay to ensure reliable performance.
- It has the best performance/price ratio, which is very suitable for middle or small card factory.
- The big size cooling parallel loop is specially designed to ensure better cooling effect.
| PVC sheet layout |
2×5 for 16A4 model |
| Laminating template size |
230×315mm suitable for A4 PVC sheet lamination |
| Daylight number/distance |
1 tower, 3 hot daylights, 3 cool daylights, 40mm |
| Pressure control precision |
+/-1Mpa |
| Work pressure |
0-16Mpa (adjustable). |
| Temperature control precision |
+/- 2℃ |
| Heating temperature |
≤200 ℃ |
| Power |
7.5 KW (Maximum) |
| Power supply |
AC380V 50/60HZ 3 phase 4 wires |
| Dimension |
around L800×W550×H1200mm |
| Gross weight |
about 500kgs |
| Speed |
1000 cards per hour. |
| Package information |
1 strong plywood carton, GW 550KG, L1000XW700XH1400mm |
3. Technical Parameter of Semi-auto Plastic Card Laminating A4 PVC Sheet Pressing Machine Solid Relay YLL-16A4
1). PVC sheet layout: 2×5 for 16A4 model
2). Laminating template size: 230×315mm suitable for A4 PVC sheet lamination
3). Daylight number/distance: 1 tower, 3 hot daylights, 3 cool daylights, 40mm
4). Pressure control precision: +/-1Mpa
5). Work pressure: 0-16Mpa (adjustable).
6). Temperature control precision: +/- 2℃
7). Heating temperature: ≤200 ℃
8). Power: 7.5 KW (Maximum)
9). Power supply: AC380V 50/60HZ 3 phase 4 wires
10). Dimension: around L800×W550×H1200mm
11). Gross weight: Around 500 kg.
12). Speed: 1000 cards per hour.
13). Packaging information:1 strong plywood carton, GW 550KG, L1000XW700XH1400mm
| Lamination Temperature |
• Up to 170 °C, adjustable and precision is ±1 °C |
| Lamination Time |
• Setting range 0-99 minutes which could be adjustable |
| Power Supply |
• Supply: 3 Phase AC380V ,50Hz
• Consumption: 7.5KW |
| Net Weight |
• 480 Kgs |
| Dimension |
• 800mm(L) × 550(W) ×1200mm(H) |
| Delivery Lead Time |
• 15- 20 working days excluding the training days |
| Training Time |
• 1-2 days in manufacturer. |
4. More description of Semi-auto Plastic Card Laminating A4 PVC Sheet Pressing Machine Solid Relay YLL-16A4
Semi-auto Plastic Card Laminating A4 PVC Sheet Pressing Machine Solid Relay YLL-16A4 is also called Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-16A4
Package information:1 strong plywood carton, GW 550KG, L1000XW700XH1400mm
