5x5 3x8 4x8 Plastic Card Laminating Machine Semi Automatic PLC Control Card Laminator

                              PLC Control Designed For Plastic Card Lamination Semi-Automatic Card Laminator YLL-26B 420×520

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-26B 420×520

1. Introduction of PLC Control Designed For Plastic Card Lamination Semi-Automatic Card Laminator YLL-26B 420×520

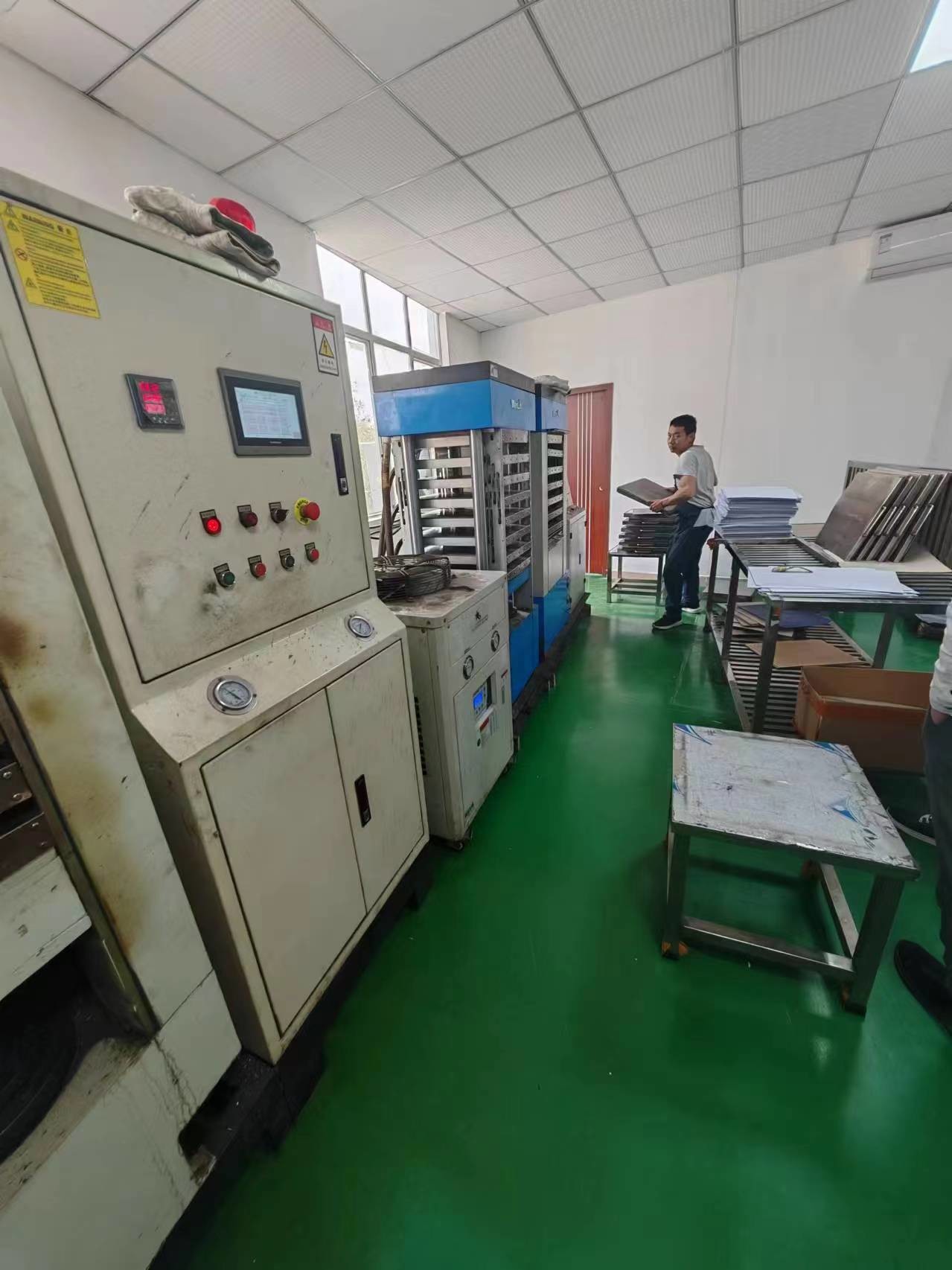

2 towers, 6 daylights for each tower, 1 big cylinder for each cylinder, steel lamination template, PLC control, designed for normal card lamination

2. Features of PLC Control Designed For Plastic Card Lamination Semi-Automatic Card Laminator YLL-26B 420×520

• It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
• pressure supply is realized by two motors and two oil pumps for very high reliability;
• Automatic lamination parallelism adjustment is available.
• The pressure and temperature control module is applied to ensure higher control precision.
• If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
• The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

3. Technical Parameter of PLC Control Designed For Plastic Card Lamination Semi-Automatic Card Laminator YLL-26B 420×520

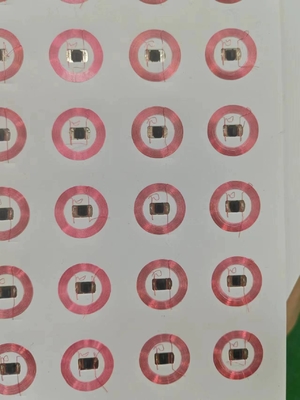

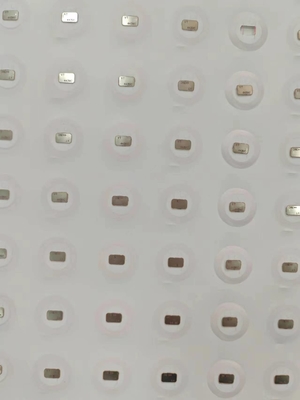

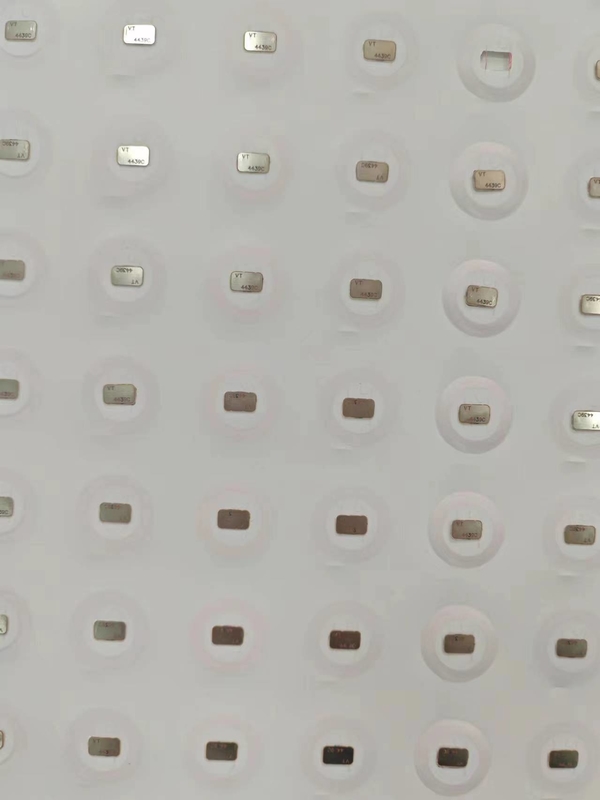

1). PVC sheet layout: 5×5, 3×8, 4×8

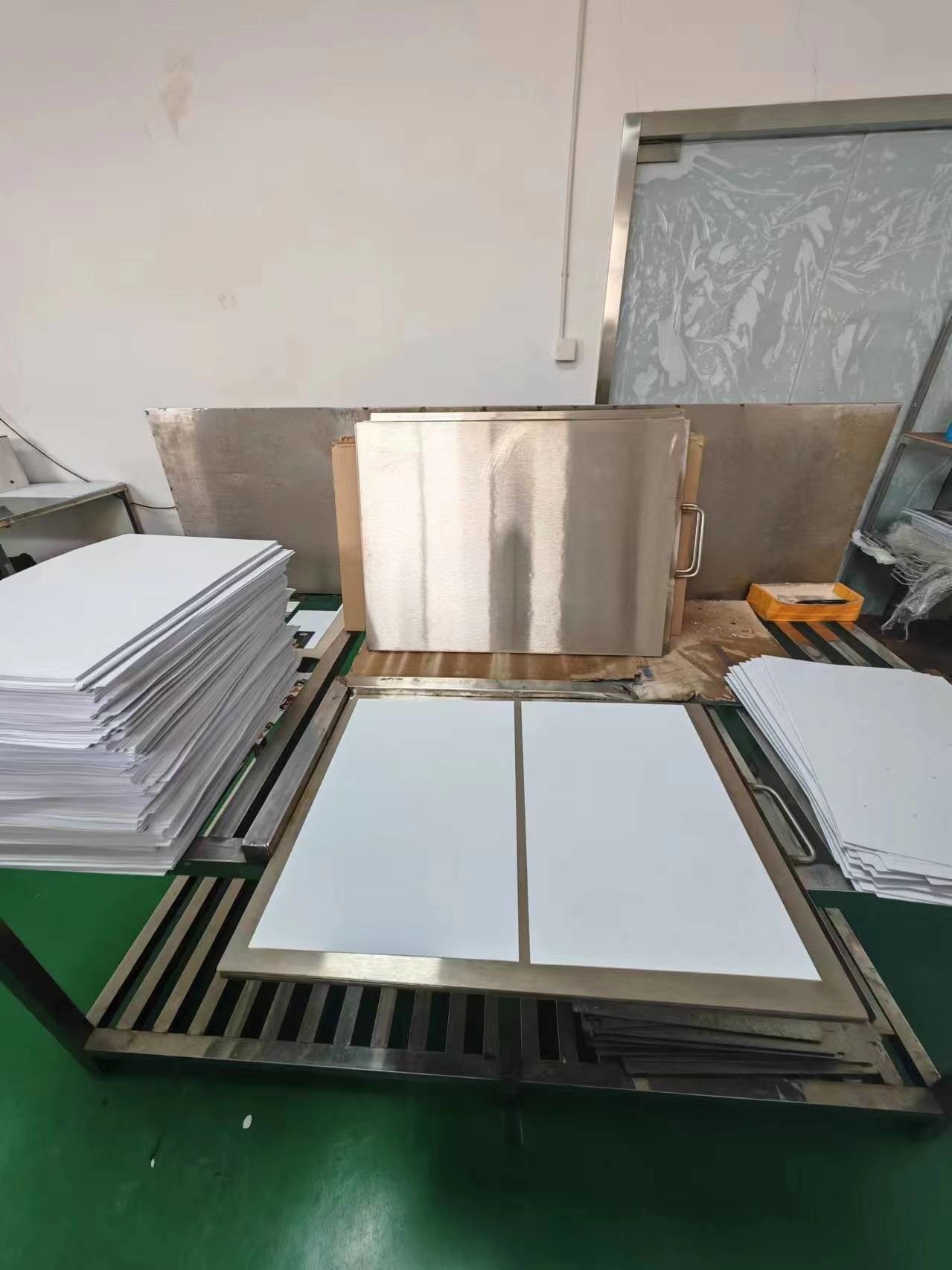

2). Laminating template size and material: 420×520mm, steel

3). Hydraulic cylinder number: 1 main cylinder (diameter 220mm) for each tower

4). Daylight number/distance: 6 daylights, 2 tower/50mm

5). Control mode: PLC

6). Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)

7). Temperature control precision: +/-1℃

8). Heating temperature: ≤200℃

9). Power: 23 KW (Maximum)

10). Power supply: AC380V 50/60HZ 3 phase 5 wires

11). Dimension: 2500mm×1200mm×1850mm

12). Gross weight: 3300 kg.

4. Application of PLC Control Designed For Plastic Card Lamination Semi-Automatic Card Laminator YLL-26B 420×520

Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.
