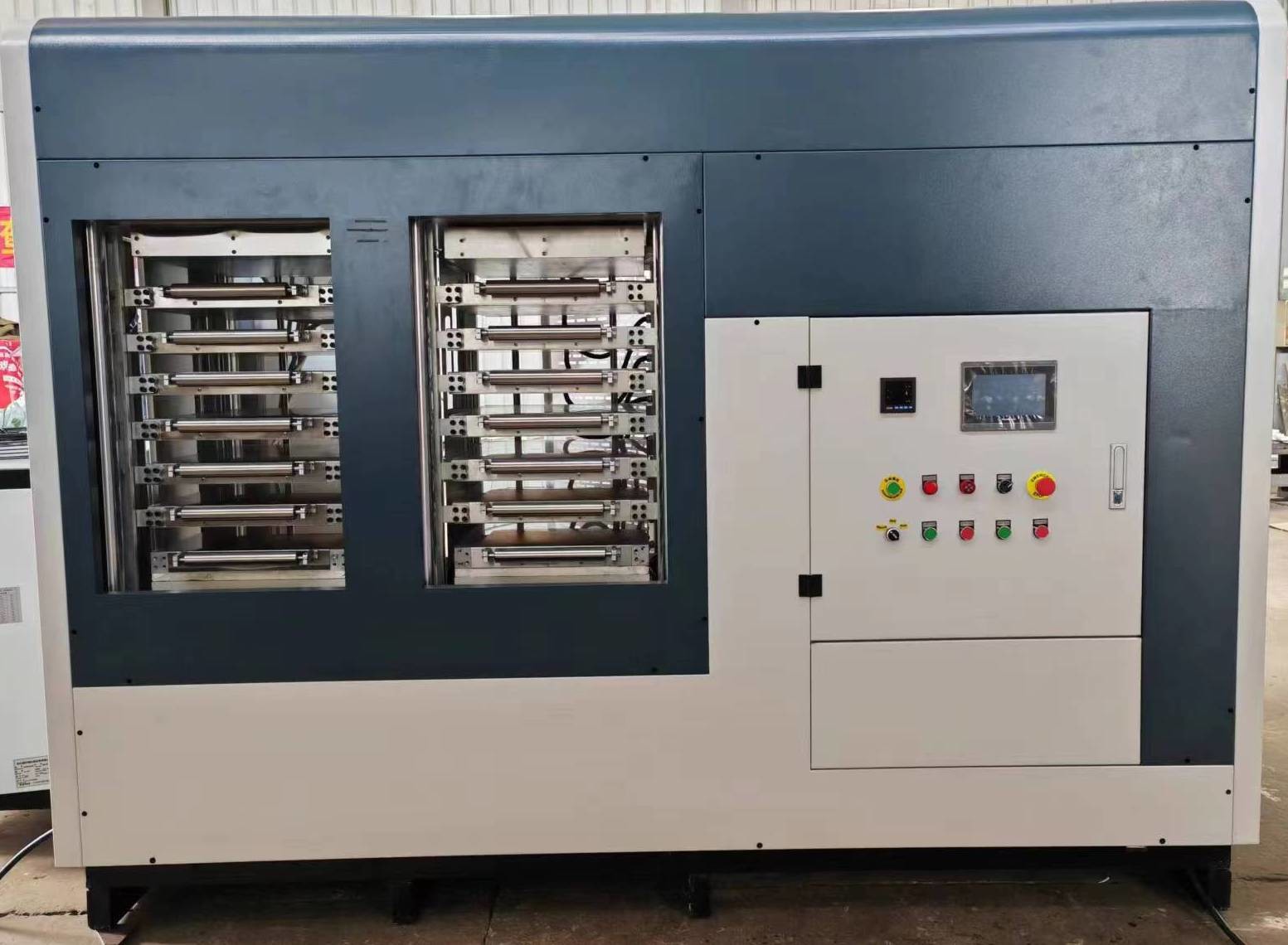

4 Cylinders Smart Card Laminator Machine Semi Auto RFID Inlay Laminating Machine

                               4 cylinders Semi-Automatic Smart Card RFID inlay Laminating Machine Card Laminating Machine YLL-27C+ 560*750

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-27C+ 560*750

1. Introduction of 4 cylinders Semi-Automatic Smart Card RFID inlay Laminating Machine Card Laminating Machine YLL-27C+ 560*750

Automatic tray moving from hot tower to cool tower, suitable for 6*8 and 7*8 layout, 2 towers, 7 daylights for each tower, 4 cylinders for each cylinder, Aluminum alloy lamination template, PLC control, designed for RFID INLAY sheets or RFID chip card lamination.

2. Features of 4 cylinders Semi-Automatic Smart Card RFID inlay Laminating Machine Card Laminating Machine YLL-27C+ 560*750

• It can realize automatic tray moving from hot tower to cool tower, which can greatly reduce the labor level in laminationprocess.
• It is controlled byProgrammable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
• It is specially designed for massive lamination of various cards including contactless RFID chip cards and RFID INLAY sheets.
• Automatic lamination parallelism adjustment is available.
• The pressure and temperature control module is applied to ensure higher control precision.
• If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
• The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

3. Technical Parameter of 4 cylinders Semi-Automatic Smart Card RFID inlay Laminating Machine Card Laminating Machine YLL-27C+ 560*750

1). PVC sheet layout: 6×8, 7×8, 5×10, 5×12

2). Laminating template size and material: 560×750mm, aluminum alloy

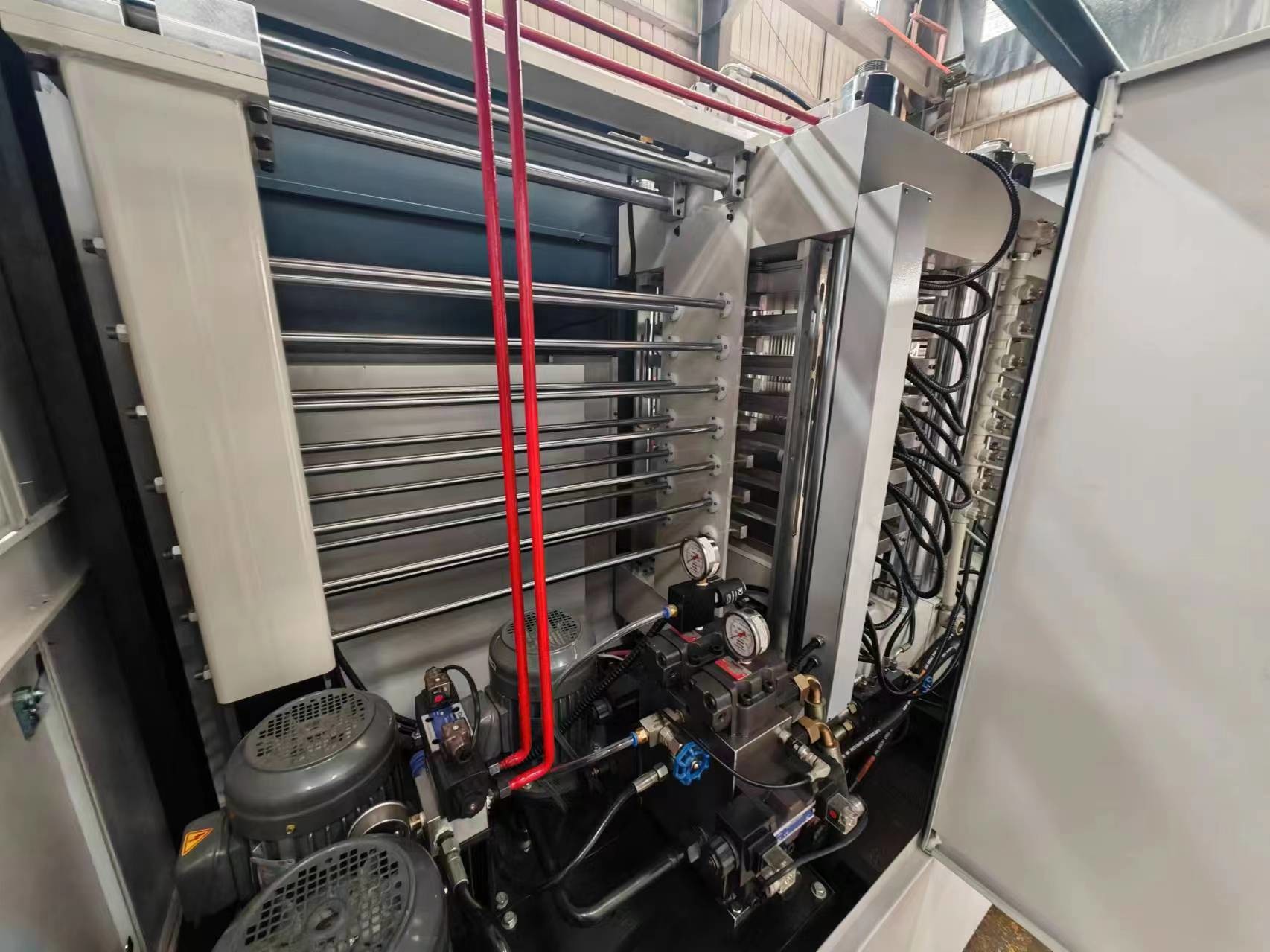

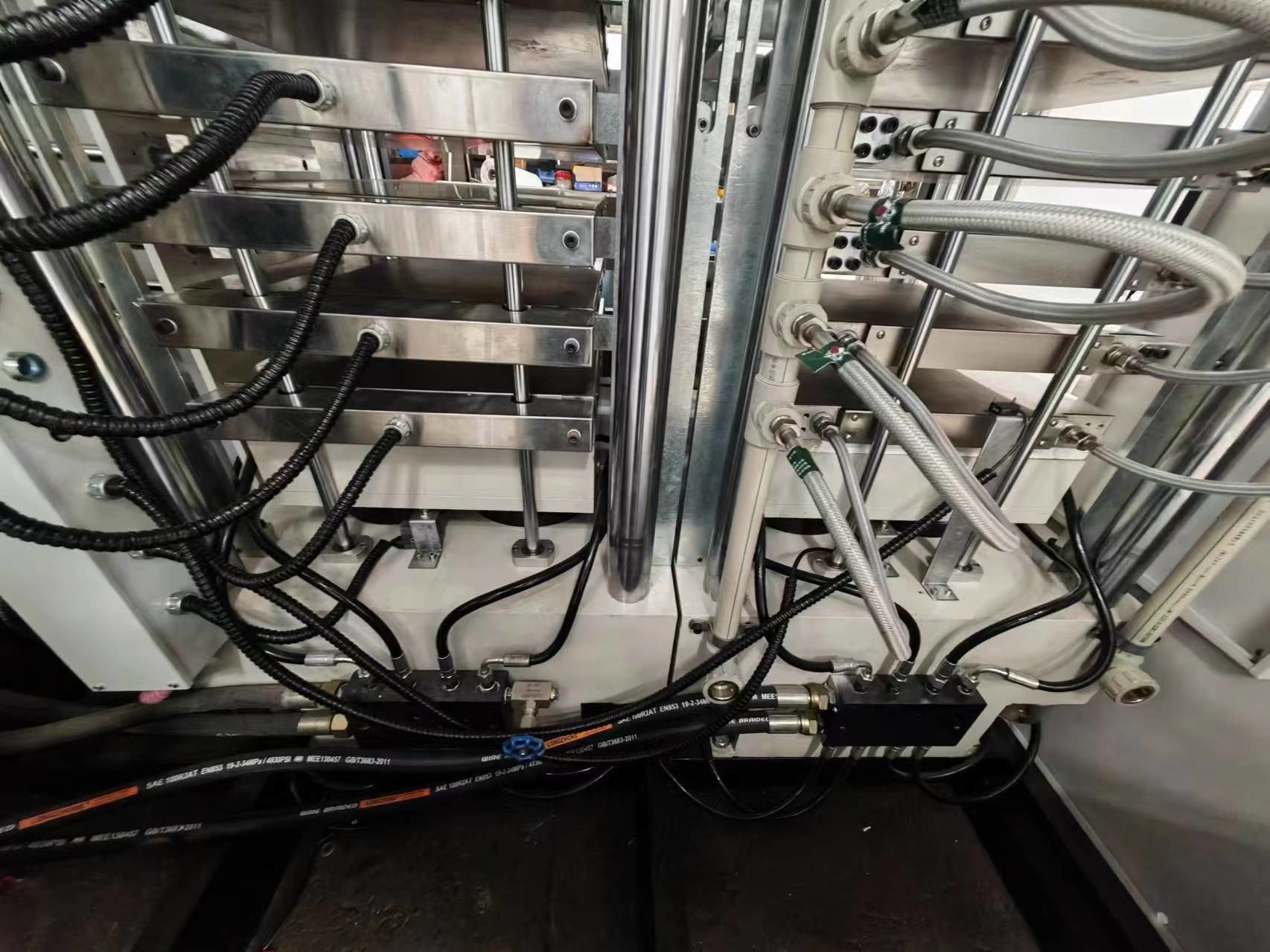

3). Hydraulic cylinder number: 4 small cylinders (diameter 125mm) for each tower

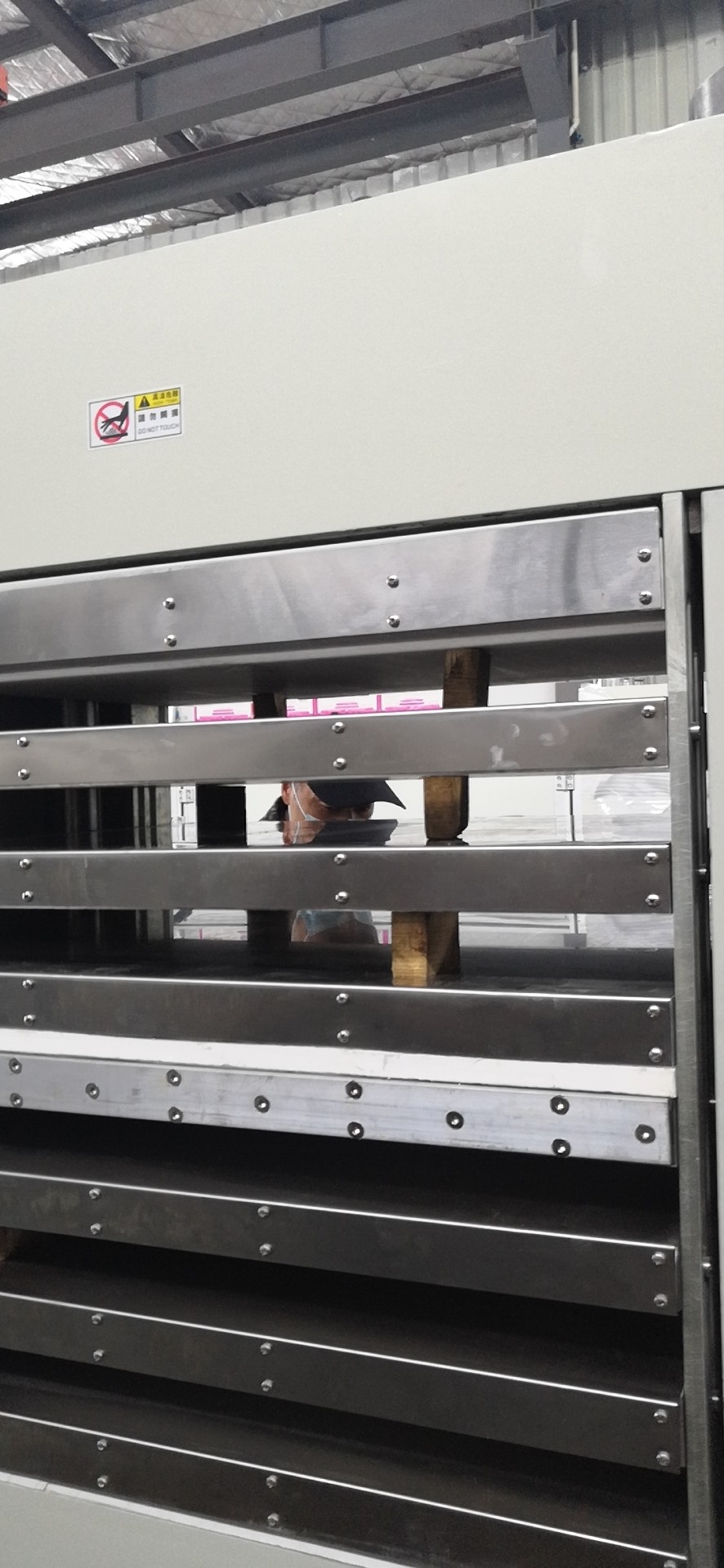

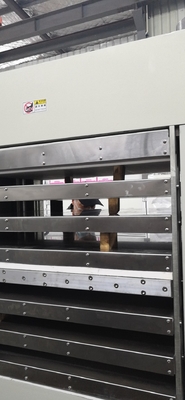

4).Daylight number/distance: 7daylights, 2 towers/50mm

5). Control mode: PLC

6).Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)

7). Temperature control precision: +/-1℃

8). Heating temperature: ≤200℃

9). Power: 35 KW (Maximum)

10). Power supply: AC380V 50/60HZ 3 phase 5 wires

11). Dimension: 2500mm×1200mm×1850mm

12). Gross weight: 3500 kg.

13). Speed: 12000-15000 cards per hour

4. Application of 4 cylinders Semi-Automatic Smart Card RFID inlay Laminating Machine Card Laminating Machine YLL-27C+ 560*750

Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.
