Smart Card RFID Inlay Laminating Machine With Automatic Tray Moving 4 Cylinders

                               Automatic tray moving 4 cylinders Smart Card RFID inlay Laminating Machine YLL-26C 600*730

Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-26C 600*730

1. Introduction of Automatic tray moving 4 cylinders Smart Card RFID inlay Laminating Machine YLL-26C 600*730

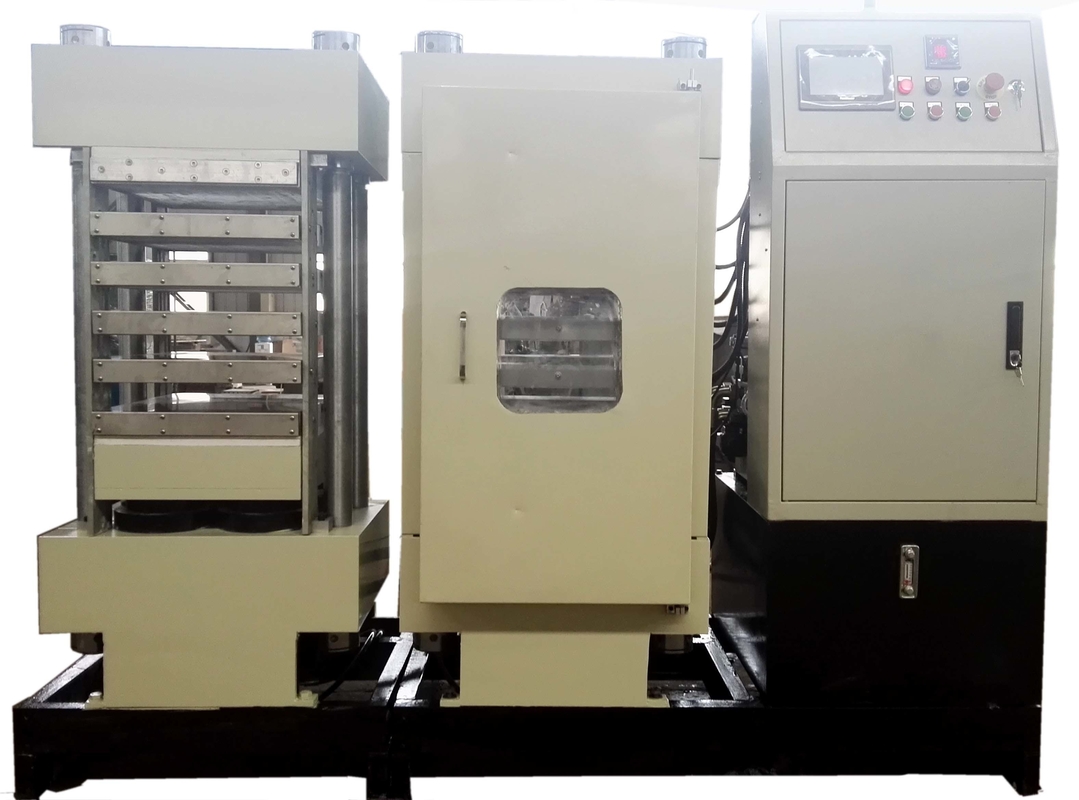

Automatic tray moving from hot tower to cold tower after hot lamination finished, manual tray feeding and removing, template size 600*730mm for 6*8 layout or less size, 2 towers, 6 openings for each, 4 cylinders for each tower, PLC controlled, designed for smart card or RFID Card INLAY lamination.

2. Features of Automatic tray moving 4 cylinders Smart Card RFID inlay Laminating Machine YLL-26C 600*730

• It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
• It can realize automatic tray moving from hot tower to cool tower after the hot lamination operation is finished.

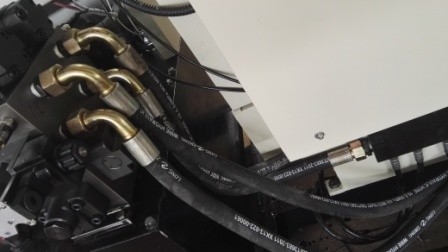

• pressure supply is realized by two motors and two oil pumps for very high reliability;
• Automatic lamination parallelism adjustment is available.
• The pressure and temperature control module is applied to ensure higher control precision.
• If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
• The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

3. Technical Parameter of Automatic tray moving 4 cylinders Smart Card RFID inlay Laminating Machine YLL-26C 600*730

1). PVC sheet layout: 6×8 5×5, 3×8, 4×8

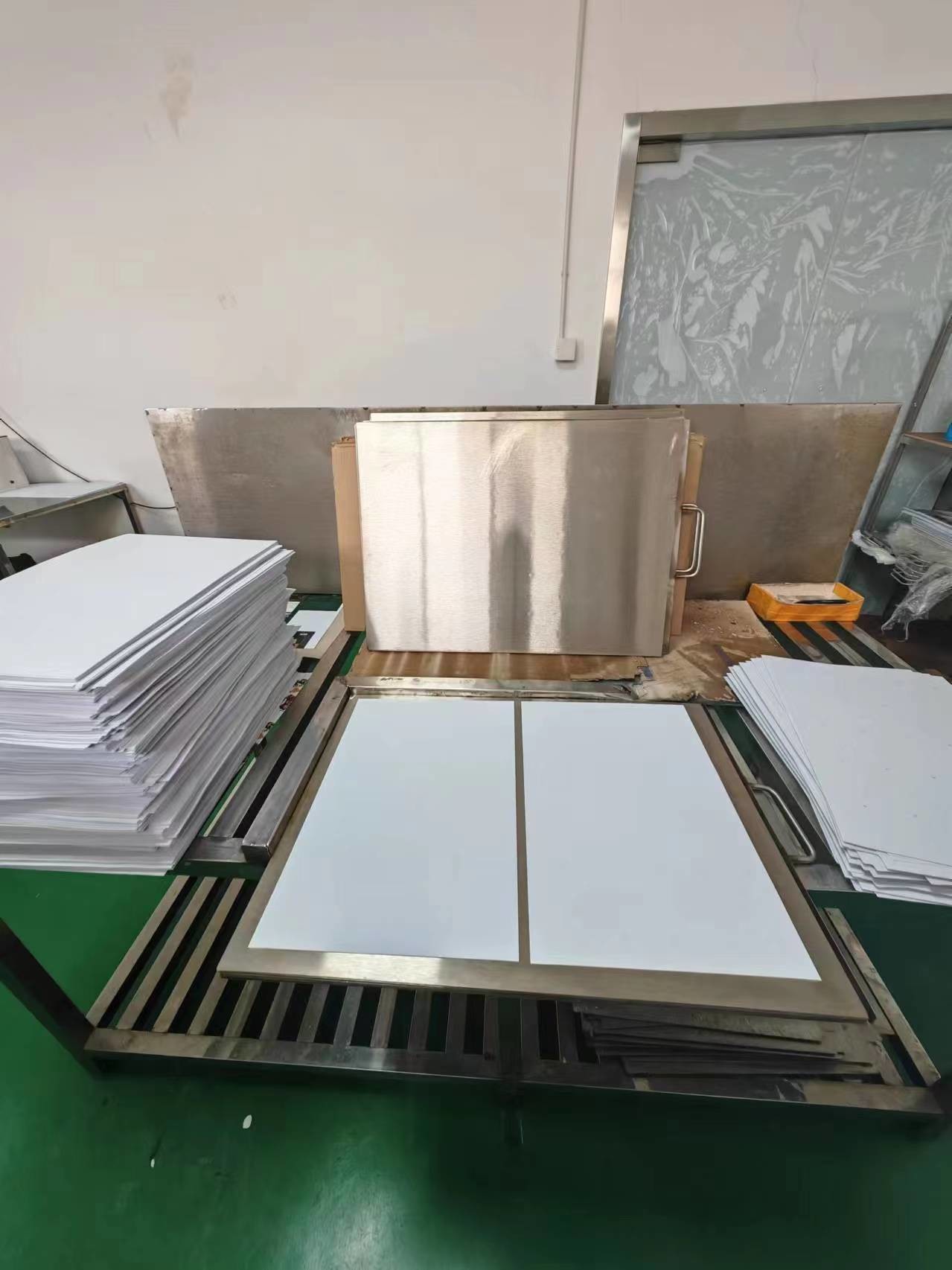

2). Laminating template size and material: 600×730mm, aluminum alloy

3). Hydraulic cylinder number: 4 cylinders (diameter 125mm) for each tower

4). Daylight number/distance: 6 daylights, 2 tower/50mm

5). Control mode: PLC

6). Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)

7). Temperature control precision: +/-1℃

8). Heating temperature: ≤200℃

9). Power: 23 KW (Maximum)

10). Power supply: AC380V 50/60HZ 3 phase 5 wires

11). Dimension: 2500mm×1200mm×1850mm

12). Gross weight: 3400 kg.

4. Application of Automatic tray moving 4 cylinders Smart Card RFID inlay Laminating Machine YLL-26C 600*730

Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.
